Downlights type 10 + GU10SMD5060

Alu chrome, Ø=84mm, H=27mm
GU10, Max. 2A / 250V / 50W

graduated prices:
Minimum quantity: 3 EUR 8.49

EUR 8.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/46/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "AZVLThg8KDUNOxPZurFyfEDY4vmjqPtX2ybb9GFFDR54iyOP5-Cdg7wAbSO2dl8khbOtPrRUIATOlhs-"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiODExZmRkMDg3NTQ3NDRkNTlmNGFmOTI0YTUwYzhkZWRhNjAzOTVjYTMxNzM1YzRjYWM0OGY4NzhlYTM4NjZkN3xtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjMtMDMtMjVUMTM6NDc6MDIuNzQ3WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBTb08wOGxGeWZkY3pwRjdvTk1ndXNKcjZTZDFJYmh4VVE0eVlmRWlHaDY2QkFyZG9faWNTam5oamFKTkhxQVh5SldOMUNWLWlock9vaWVvdGJuaV9ZVG1fY29nIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZVLThg8KDUNOxPZurFyfEDY4vmjqPtX2ybb9GFFDR54iyOP5-Cdg7wAbSO2dl8khbOtPrRUIATOlhs-"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiODExZmRkMDg3NTQ3NDRkNTlmNGFmOTI0YTUwYzhkZWRhNjAzOTVjYTMxNzM1YzRjYWM0OGY4NzhlYTM4NjZkN3xtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjMtMDMtMjVUMTM6NDc6MDIuNzQ3WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBTb08wOGxGeWZkY3pwRjdvTk1ndXNKcjZTZDFJYmh4VVE0eVlmRWlHaDY2QkFyZG9faWNTam5oamFKTkhxQVh5SldOMUNWLWlock9vaWVvdGJuaV9ZVG1fY29nIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if(typeof renderPayPalButtons === 'function') { renderPayPalButtons('641efbbdc3e48', 'paypal', 'pay', 'rect', 'blue'); } else { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('641efbbdc3e48', 'paypal', 'pay', 'rect', 'blue'); }); }

Ready for shipment, delivery time 2 days

Item number ES_SET_10

Downlight in chrome look

This ceiling frame impresses with its simple form and chrome-plated surface. Contrasting fits the mounting frame to any environment, because the shiny chrome reflects the colors around. The retaining ring is easily attached and keeps the lamp in the swing frame without unsightly snap ring (ring spring). By IP44 this mounting frame is protected from splash and can safely be used in humid rooms such as the bathroom.

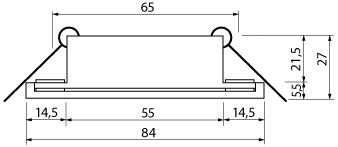

Dimensions in mm
Downlight dimensions

Product features

  • Material: Aluminum
  • Surface: Chrome
  • Diameter of cover: 84mm
  • Height Ceiling thickness: max. 21,5mm
  • Height Frame Total: 27mm
  • Supernatant ceiling surface: 5,5mm
  • Mounting hole: 65mm (min. 60mm, max. 70mm)
  • Swivel range: -
  • Protection category: IP44
  • Socket: GU10 Ceramics
  • Lamp: GU10 max. 2A / 250V / 50W (not included)



Assembly intructions as PDF

EU Product database (EPREL)



Product features of LED

LED lighting at a glance
Base: GU10
Brand: SEBSON
Nominal wattage: 3,5W
Nominal luminous flux: 300lm
Comparative value: approx. 30W light bulb
Beam angle: 110°
Dimensions: ø50 x 57mm



Electrical specification
Operating voltage: 230V AC 50Hz
Rated wattage: 3,2W
Rated power factor: 0,43
Switching cycles: > 12.500



Lighting specification
Rated luminous flux: 306lm
Rated color temperature: 2900K (warm white)
Rated color rendering index (CRI): > 80Ra
Rated beam angle: 110°
Rated starting time: < 0,5s
Rated warm-up time (60 %): instant full light
Colour consistency: < 6SDCM
Luminous flux maintenance: 90.22%



Further specification
Nominal - / rated lamp life time: 15.000h
LED: 15 SMD LEDs
Dimmable: no
Accent lighting: no
Rated lamp mercury content: 0,0mg
Body housing: Glass

The light source is replaceable by the end user.
This product contains a light source of energy efficiency class F.
*Disposal note



Scope of delivery:

  • 1 x GU10 LED lamp with 15 SMD LEDs from SEBSON®
  • 1 x Downlight type 10 with GU10 Socket from SEBSON®



Item ID 1799
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 140 g
Net weight 140 g
