Downlights type 19

Alu white, Cover=92x92mm, H=19,5mm
swiveling GU10, Max. 2A / 250V / 50W

graduated prices:
Minimum quantity: 3 EUR 6.49

EUR 6.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/56/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZVLThg8KDUNOxPZurFyfEDY4vmjqPtX2ybb9GFFDR54iyOP5-Cdg7wAbSO2dl8khbOtPrRUIATOlhs-"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiMmRhZTQ0YjY3ZDI5OWRiN2I0MTc0MTMwMTk5OTJhM2VjNjIxODA0NTZlMWQyNWRiZWI4ODcwM2JkMDQ3ZTcwNnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDUtMThUMDQ6MzE6MDIuMjE2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBoWTN5TWxncFFvQ3FOMUlDWERSbXZxc0VnRXBRc0wxbGszYXBOTHY3eDNGX0tHSlhXbVlaQ05DX1hqYV91LW1EUl90cWtTeGxlcjNhQ1hfTTRiODAyUFpzcExBIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZVLThg8KDUNOxPZurFyfEDY4vmjqPtX2ybb9GFFDR54iyOP5-Cdg7wAbSO2dl8khbOtPrRUIATOlhs-"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiMmRhZTQ0YjY3ZDI5OWRiN2I0MTc0MTMwMTk5OTJhM2VjNjIxODA0NTZlMWQyNWRiZWI4ODcwM2JkMDQ3ZTcwNnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDUtMThUMDQ6MzE6MDIuMjE2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBoWTN5TWxncFFvQ3FOMUlDWERSbXZxc0VnRXBRc0wxbGszYXBOTHY3eDNGX0tHSlhXbVlaQ05DX1hqYV91LW1EUl90cWtTeGxlcjNhQ1hfTTRiODAyUFpzcExBIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('66482f065bba3', 'paypal', 'pay', 'rect', 'blue'); }); } else { renderPayPalButtons('66482f065bba3', 'paypal', 'pay', 'rect', 'blue'); }

Ready for shipment, delivery time 2 days

Item number ES_T19_1021_WHITE

Downlight in square design

This ceiling mounting frame impresses with its simple square shape and the large swivel range of up to 90°. The radially ground cover is only 2.5mm thick. The large facet of the inner retaining ring (rosette) looks simply elegant. The retaining ring is simply plugged on and holds the lamp in the swivel frame without an unsightly snap ring (ring spring).

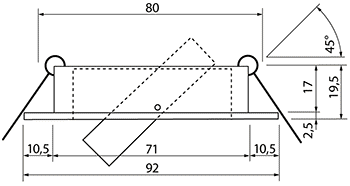

Dimensions in mm
Downlight ES type 18 dimensions

Product features

  • Material: Aluminum
  • Surface: white
  • Cover: 92 x 92mm
  • Height Ceiling thickness: max. 17mm
  • Height Frame Total: 19.5mm
  • Supernatant ceiling surface: 2,5mm
  • Mounting hole: 80mm (min. 78mm, max. 85mm)
  • Swivel range: 90° or +/-45°
  • Socket: GU10 Ceramics
  • Protection category: IP20
  • Lamp: GU10 max. 2A / 250V / 50W



Assembly intructions as PDF



Scope of delivery:

  • 1 x Downlight type 19 with GU10 Socket, without LED from SEBSON®



Item ID 4129
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 95 g
Net weight 95 g
