Downlights type 16

Aluminium, Cover=Ø90mm, H=25mm
rotatable, GU10, Max.2A / 250V / 50W

graduated prices:
Minimum quantity: 10 EUR 5.49

EUR 5.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/55/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZVLThg8KDUNOxPZurFyfEDY4vmjqPtX2ybb9GFFDR54iyOP5-Cdg7wAbSO2dl8khbOtPrRUIATOlhs-"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYTA2ZDg5NjE1Nzg1MGMzZWNiYzE3NGEyMThiMzhhNGExNGU0MzdjYWZlNzM0ZGZiOWQ1MWQwODJjM2IxNzdlOXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMTlUMTk6MDU6NTQuNzA2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU51MGhIQ3Zoc3Z4T21VMWtuNG9BQ0g1UlpBb1p2Z2otOE5wYmdGN1hGbkVGMURZU3pEYWFXeUlXZkR5SjlRVUNiRmpqZzFCSkVIZnhzczRlbWVvZ0MzcmljbERnIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZVLThg8KDUNOxPZurFyfEDY4vmjqPtX2ybb9GFFDR54iyOP5-Cdg7wAbSO2dl8khbOtPrRUIATOlhs-"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYTA2ZDg5NjE1Nzg1MGMzZWNiYzE3NGEyMThiMzhhNGExNGU0MzdjYWZlNzM0ZGZiOWQ1MWQwODJjM2IxNzdlOXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMTlUMTk6MDU6NTQuNzA2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU51MGhIQ3Zoc3Z4T21VMWtuNG9BQ0g1UlpBb1p2Z2otOE5wYmdGN1hGbkVGMURZU3pEYWFXeUlXZkR5SjlRVUNiRmpqZzFCSkVIZnhzczRlbWVvZ0MzcmljbERnIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6622cdf4955f1', 'paypal', 'pay', 'rect', 'blue'); }); } else { renderPayPalButtons('6622cdf4955f1', 'paypal', 'pay', 'rect', 'blue'); }

Ready for shipment, delivery time 2 days

Item number ES_T16_1072_SILVER

Downlight in aluminum design

Simple and beautifully rounded in depth, this recessed spotlight fits beautifully into modern environments. The brushed, matt surface applies only 3mm. The retaining ring is screwed on and holds the lamp in the swivel frame without an unsightly snap ring (annular spring).

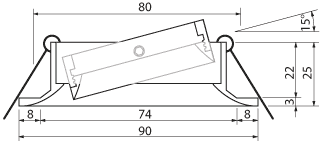

Dimensions in mm
Einbaurahmen ES_Typ 16 und 17 Maße

Product features

  • Material: Aluminum
  • Surface: Matt, brushed polished
  • Cover: Ø90mm
  • Height Ceiling thickness: max. 22mm
  • Height Frame Total: 25mm
  • Supernatant ceiling surface: 3mm
  • Mounting hole: 80mm (min. 75mm, max. 83mm)
  • Swivel range: 30° or +/-15°
  • Socket: GU10 Ceramics
  • Protection category: IP20
  • Lamp: GU10 max. 2A / 250V / 50W



Assembly intructions as PDF



Scope of delivery:

  • 1 x Downlight type 16 with GU10 Socket, without LED from SEBSON®



Item ID 3893
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 64 g
Net weight 64 g
