HF Motion detector HF ES A

Flush-mounted high-frequency motion detector for indoor use

This active motion detector generates high-frequency electromagnetic waves (5.8 GHz) and receives their echo after impact with moving objects. In this way, the motion detector reacts independently of the temperature of the detected objects. The smallest movements within the detection range of the motion detector can be detected. High-frequency technology enables the perception of movements through doors, glass panes or thin walls. The integrated microprocessor triggers the "Close circuit" or "Switch on light" command almost instantaneously.

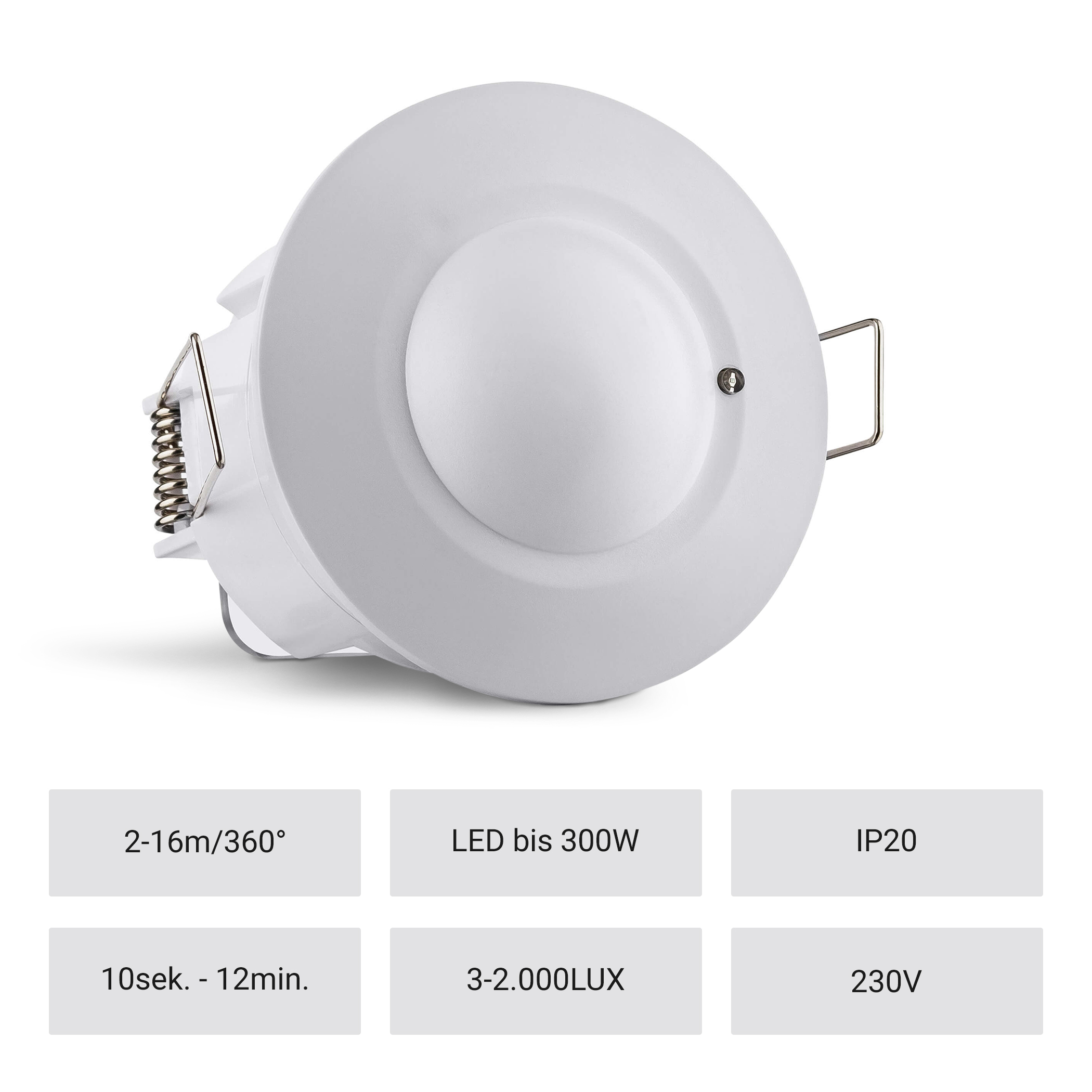

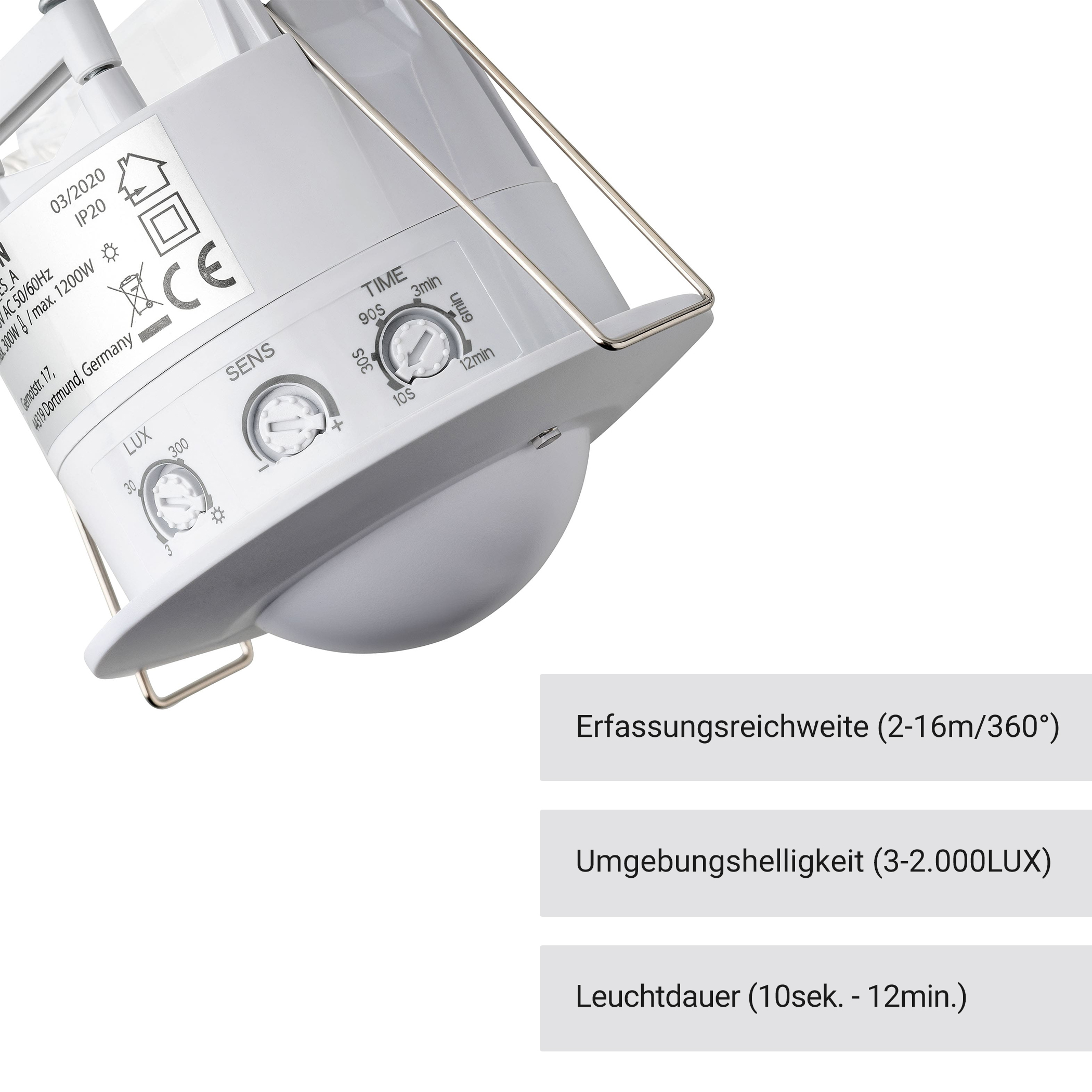

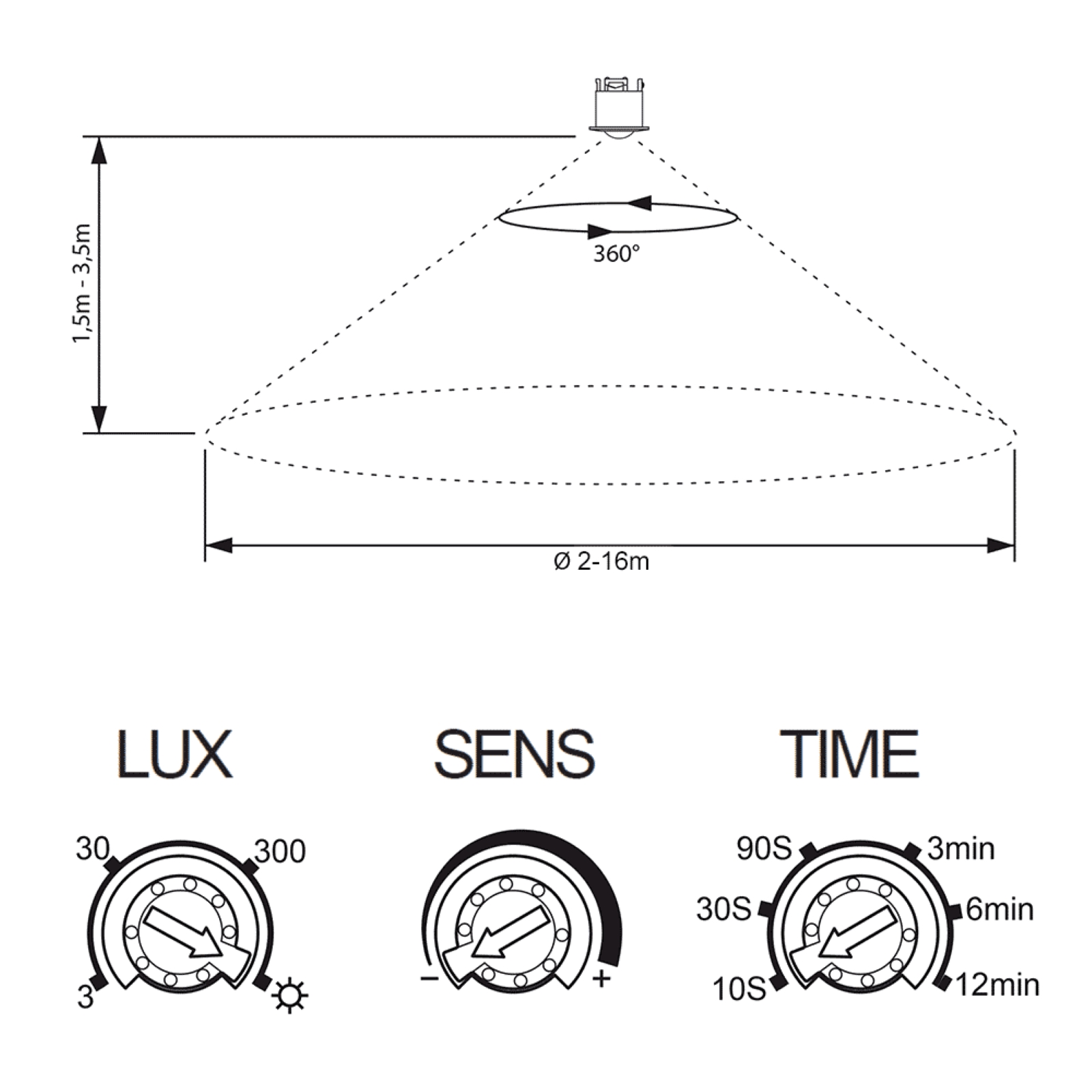

The RF sensor detects movements of persons, large animals and vehicles within an adjustable detection range of 2 to 16 metres at a detection angle of 360° and switches on the connected lighting. After a preset time of approx. 10 seconds to 12 minutes, the motion detector switches off again when no more movement is detected. With the aid of a controller, the switch-on sensitivity can be regulated in relation to the ambient brightness (in the range between 3 and 2,000 LUX).

Minimum radiation exposure
The radiation emitted by the sensor has a power of approx. 0.2mW. This means that the power of the radiation is about 1/5000th that of a mobile phone. This motion detector can therefore be used without hesitation.

HF advantages:

• Independent of the temperatures of the objects to be detected
• Virtually instantaneous reaction
• Detection of the smallest movements
• Detection through doors, glass panes and thin walls
• No significant radiation exposure

Product features

Assembly and operating instructions as PDF

Scope of delivery:

• 1 x SEBSON® HF motion detector
