IR Motion detector IR ES A

Built-in, Range max. 6m/360°, max. 1200/300W, IP20

graduated prices:
Minimum quantity: 10 EUR 8.49

EUR 8.99
Content 1 piece
Incl. VAT excl. Shipping
Quantity:

Ready for shipment, delivery time 2 days
Item number IR_ES_A
Built-in IR motion detector

The infrared sensor detects movements of persons, large animals and vehicles in a detection range of up to 6m with a detection angle of 360° (on free area) and switches on the connected lighting. After a preset time of approx. 10 seconds to 15 minutes, the motion detector switches off again. With the help of a controller, the switch-on sensitivity of this device can be regulated depending on the ambient brightness (in the range between 3 and 2,000 LUX).



Product features


Operating voltage: 220-240V AC 50/60Hz
Max. Power consumption: max. 1200W with usual lamps
max. 300W with LED and energy saving lamps
Power consumption on standby: 0,5W
Switch: On, off or detector
Detection speed: 0,6-1,5m/s
Detection range: Max.6m (<24°C)/360°
Ambient brightness: <3-2.000LUX
Protection: IP20
Switch-off delay: min. 10s +/-3s - max. 15min +/-2min
Ambient temperature: -20° to +40°C
Humidity: <93%
Dimensions: Ø75x75mm
Mounting hole: 65-70mm
Housing material: Plastic

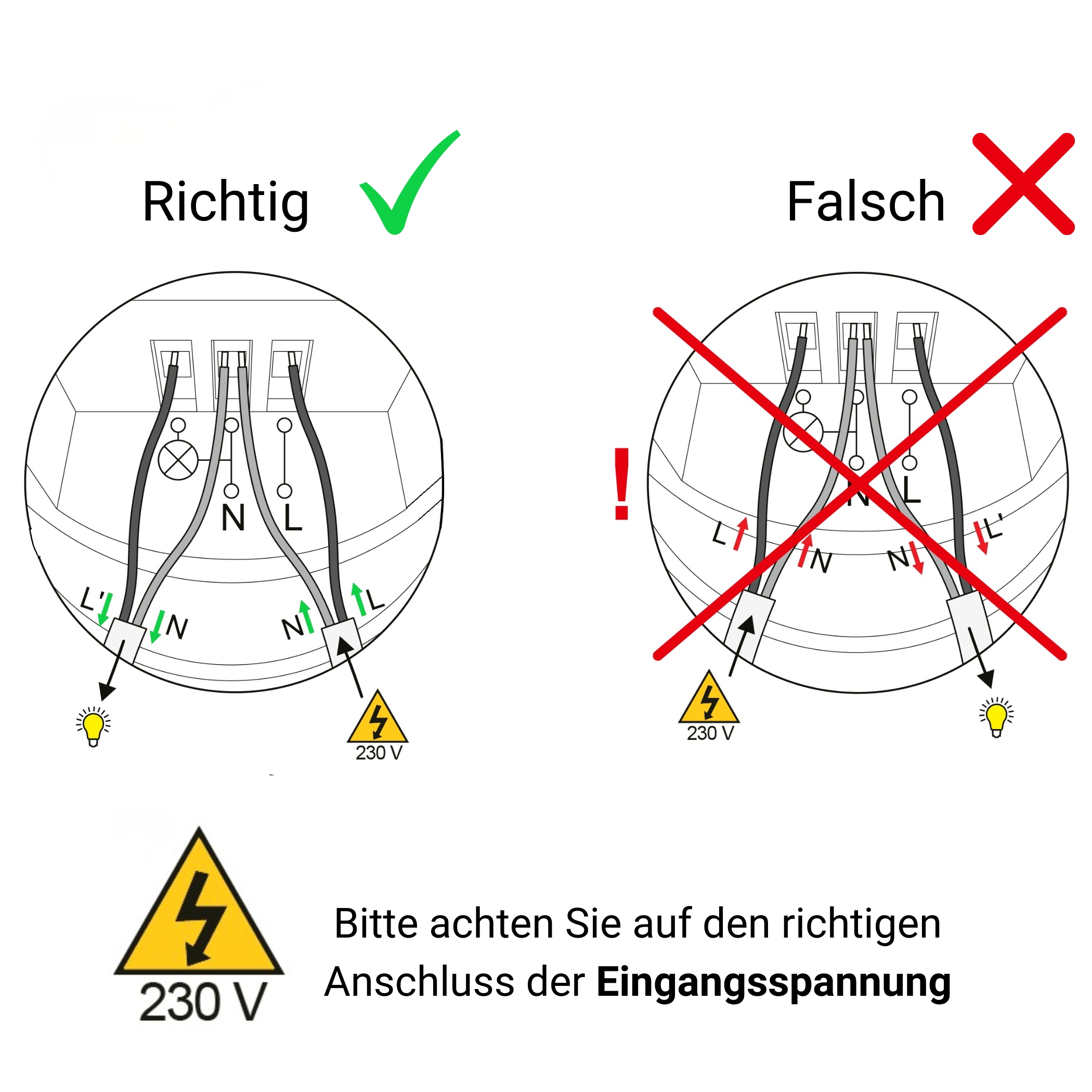

Assembly and operating instructions as PDF



Scope of delivery:

  • 1 x SEBSON® Built-in IR motion detector



Item ID 3633
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country
Weight 75 g
Net weight 75 g
Dimensions 0×0×0 mm
