HF Motion detector HF OUT B

HF sensor, range max.15m/180°, swivelling, max.1200/300W, IP65

graduated prices:
Minimum quantity: 3 EUR 18.99

EUR 19.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/60/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/60/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('67004bc4734c4', 'paypal', 'pay', 'rect', 'blue'); }); } else { renderPayPalButtons('67004bc4734c4', 'paypal', 'pay', 'rect', 'blue'); }

Ready for shipment, delivery time 2 days

Item number HF_OUT_B

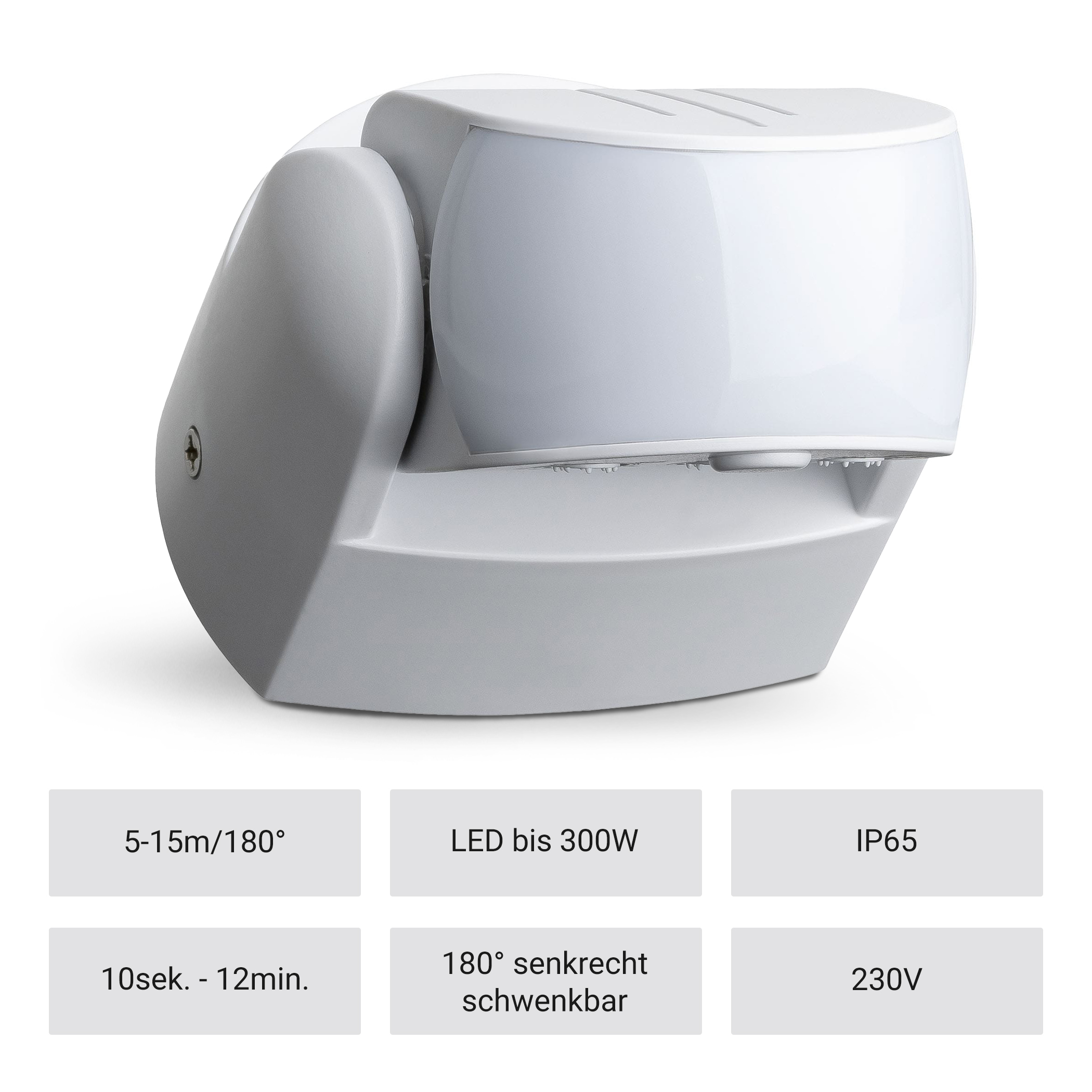

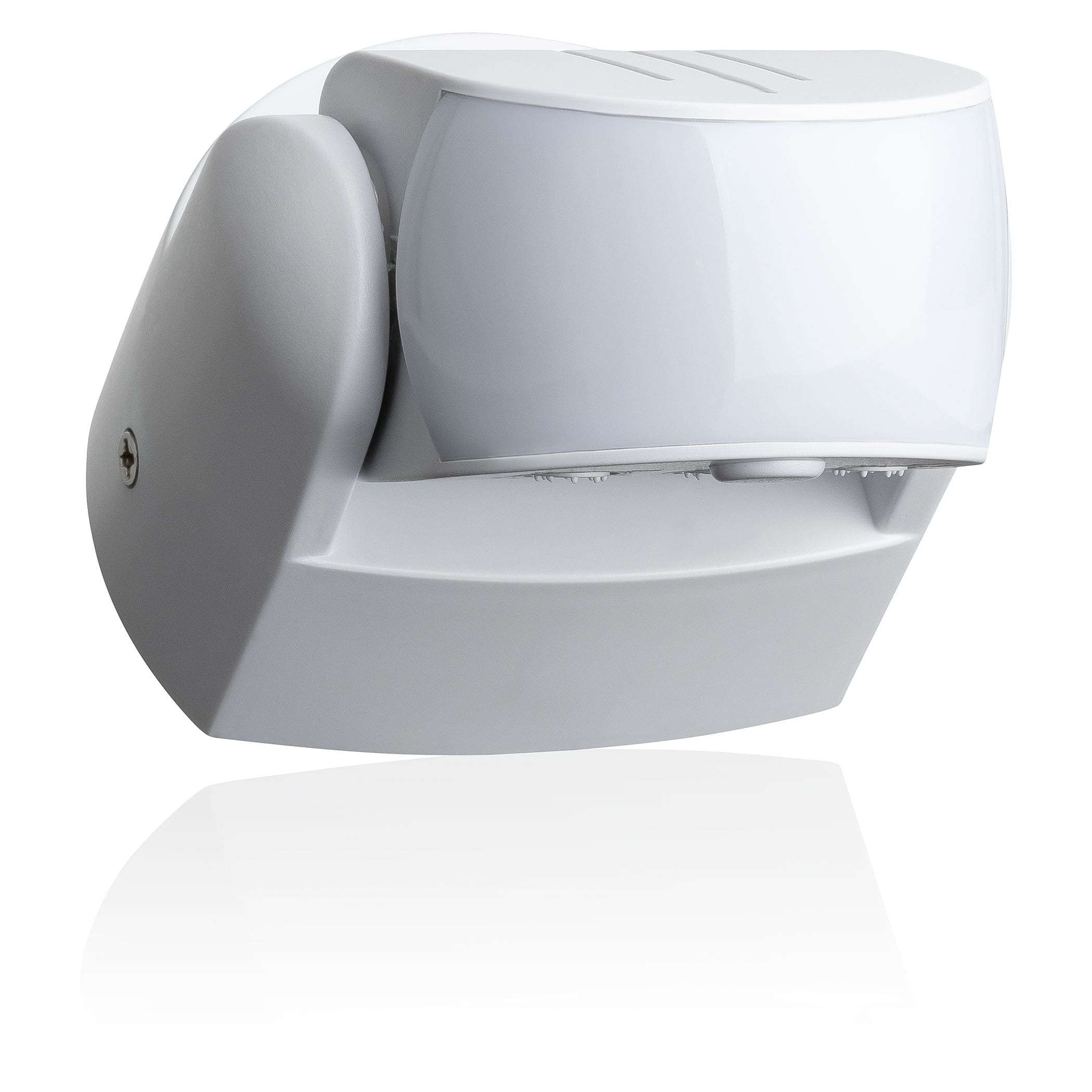

Pivoting high-frequency motion detector for outdoor use

This active motion detector generates high-frequency electromagnetic waves (5.8 GHz) and receives their echo after impact with moving objects. In this way, the motion detector reacts independently of the temperature of the detected objects. The smallest movements within the detection range of the motion detector can be detected. High-frequency technology enables the perception of movements through doors, glass panes or thin walls. The integrated microprocessor triggers the "Switch on light" command almost instantaneously.

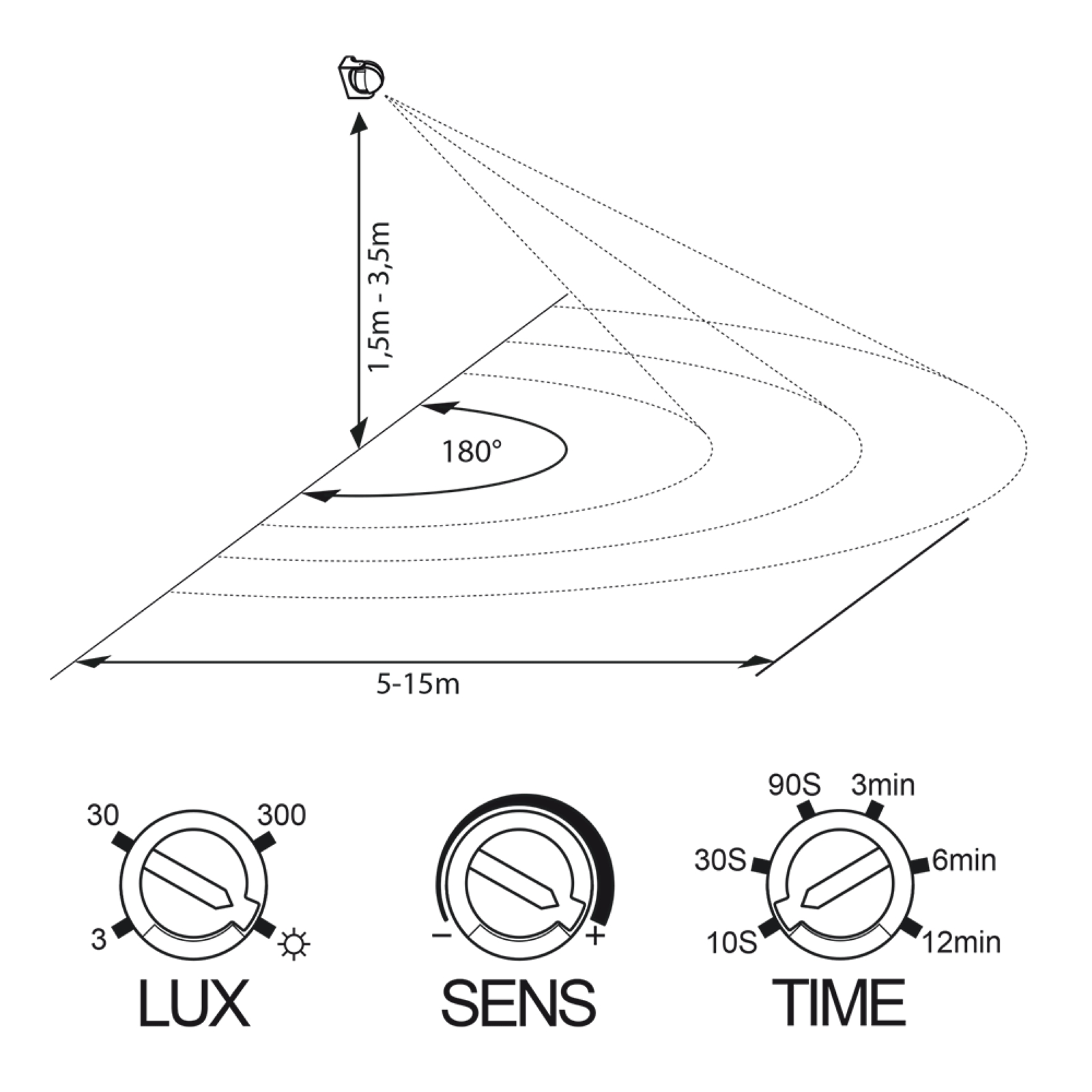

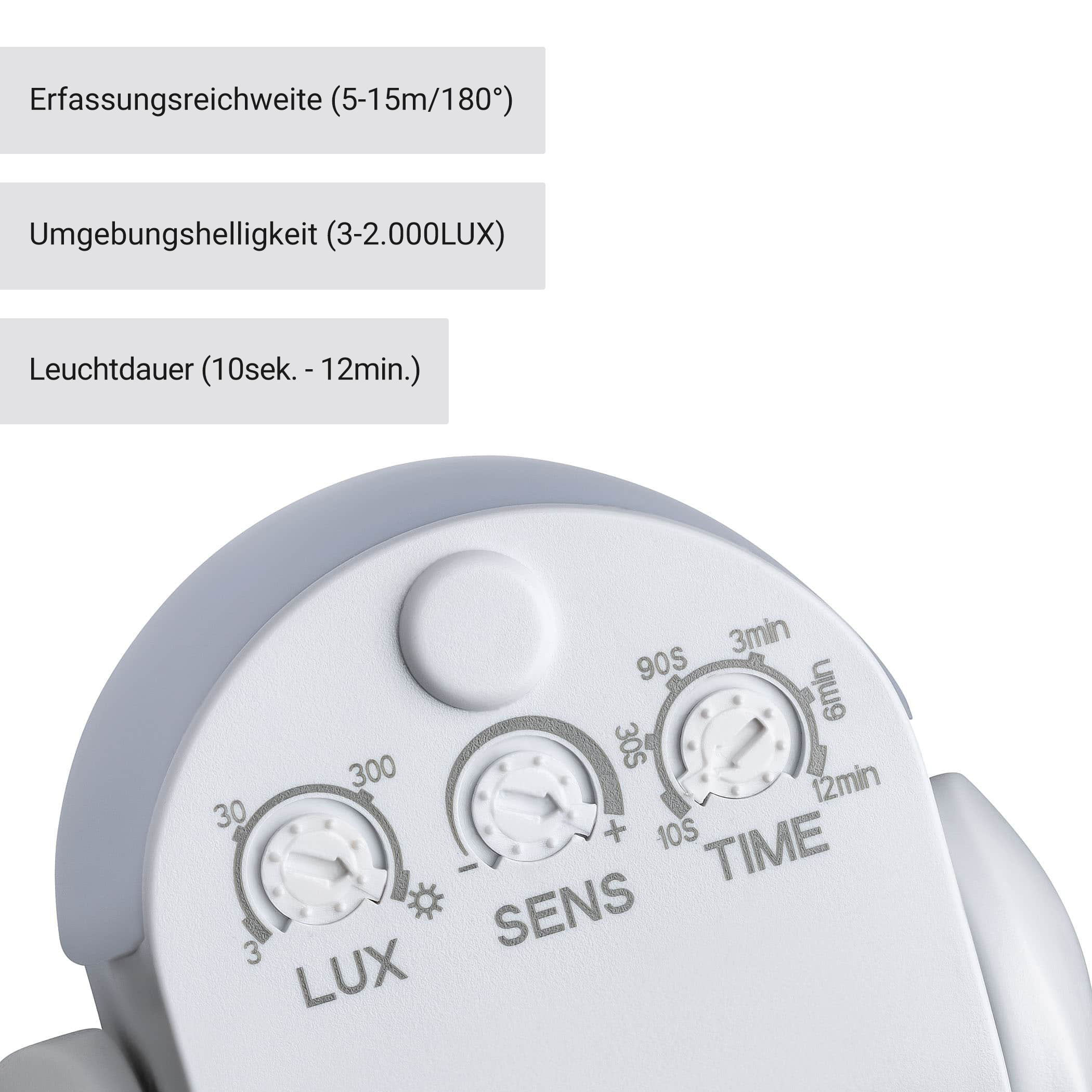

The RF sensor detects movements of people, large animals and vehicles within a detection range of up to 15m at a detection angle of 180° and switches on the connected lighting. After a preset time of approx. 10 seconds to 12 minutes, the motion detector switches off again when no more movements are detected. With the aid of a controller, the switch-on sensitivity can be regulated in relation to the ambient brightness (in the range between 3 and 2,000 LUX). In addition, the detection chamber can be adjusted in a targeted manner thanks to its vertical swivelling capability.

Minimum radiation exposure
The radiation emitted by the sensor has a power of approx. 0.2mW. This means that the power of the radiation is about 1/5000th that of a mobile phone. This motion detector can therefore be used without hesitation.

HF advantages:

  • Independent of the temperatures of the objects to be detected
  • Virtually instantaneous reaction
  • Detection of the smallest movements
  • Detection through doors, glass panes and thin walls
  • No significant radiation exposure



Product features

Operating voltage: 220-240V AC 50/60Hz
Max. Power consumption: max. 1200W with usual lamps,
max. 300W with energy saving lamps
Performance: ~ 0,9W
Power consumption on standby: 0,5W
Transmission power: 0.2mW
Detection speed: 0,6-1,5m/s
Detection range: 5-15m/180°
Ambient brightness: < 3-2.000LUX
Protection: IP65
Frequenzy: 5.8GHz CW
Switch-off delay: Min. 10s +/-3s - Max. 12min +/-1min
Swiveling: 300° vertical

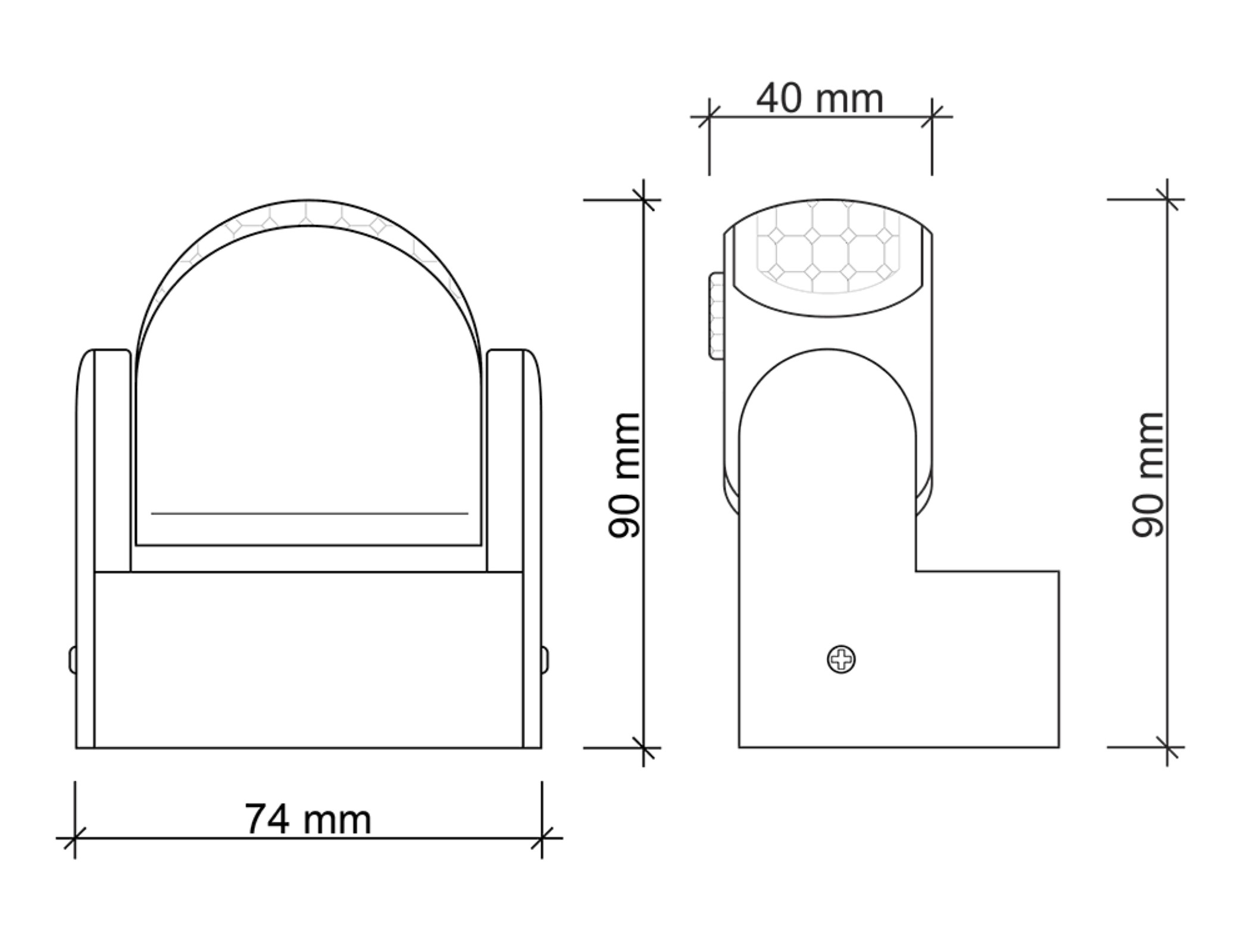

Dimensions: 90x74x40mm
Housing material: Plastic



Assembly and operating instructions as PDF



In scope of delivery:

  • 1 x SEBSON® HF motion detector



Item ID 5117
Condition New
Age rating No age restriction
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 130 g
Net weight 130 g
