Flush-mounted and surface-mounted, infrared, max. range 8m/360°, max. 2000/1000W, IP44, 3-wire
graduated prices:
| Minimum quantity: 3 | EUR 20.99 |
EUR 21.99
Content
1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "745b48d570eb7623e9134bb34a52b295");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "745b48d570eb7623e9134bb34a52b295");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6926765894d74', 'paypal', 'pay', 'rect', 'blue');
});
} else {
renderPayPalButtons('6926765894d74', 'paypal', 'pay', 'rect', 'blue');
}
Ready for shipment, delivery time 2 days
Item number IR_CEIL_G
Safely
shopping
shopping
Free Return
from 40 €
from 40 €
Free Support
0231 2821758
0231 2821758

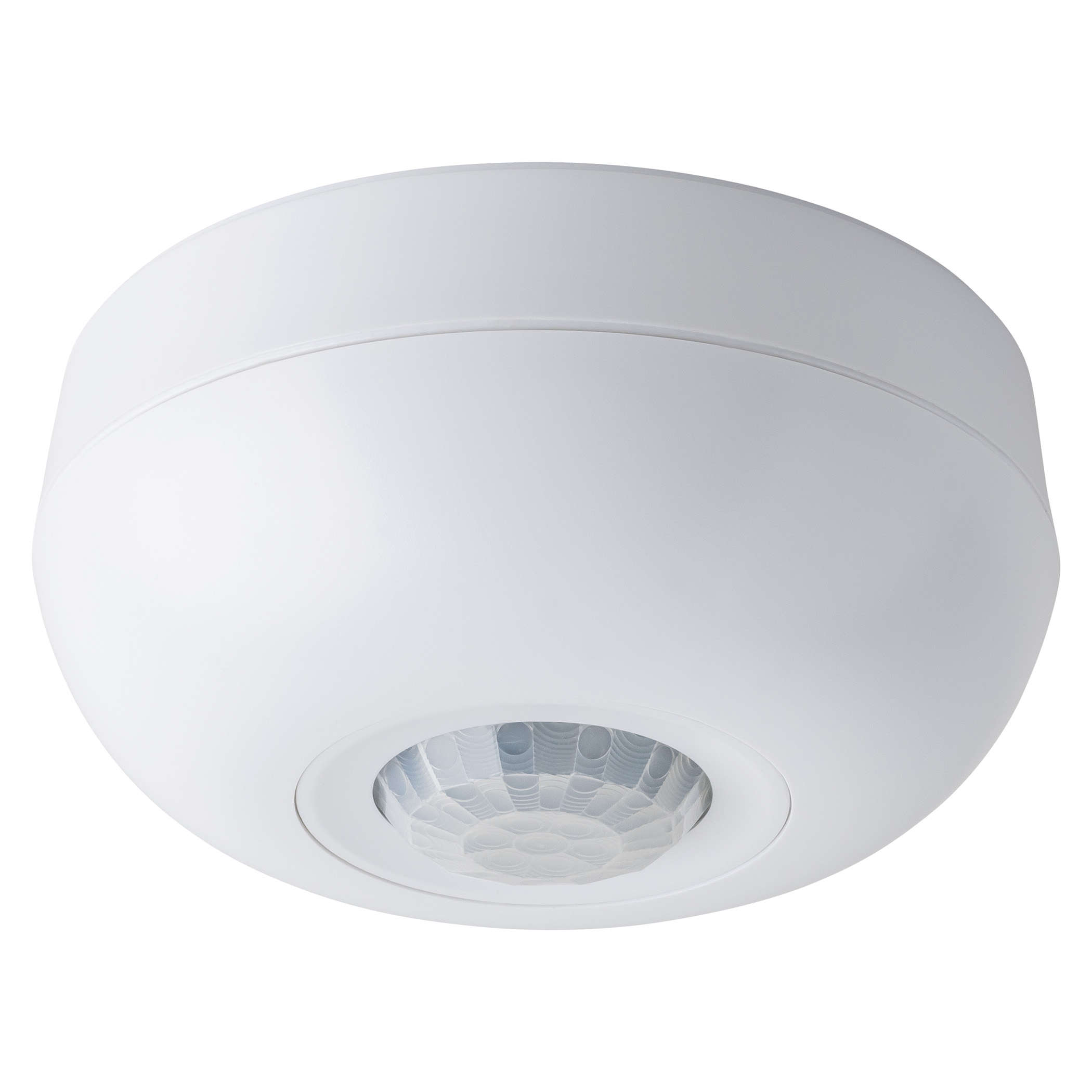

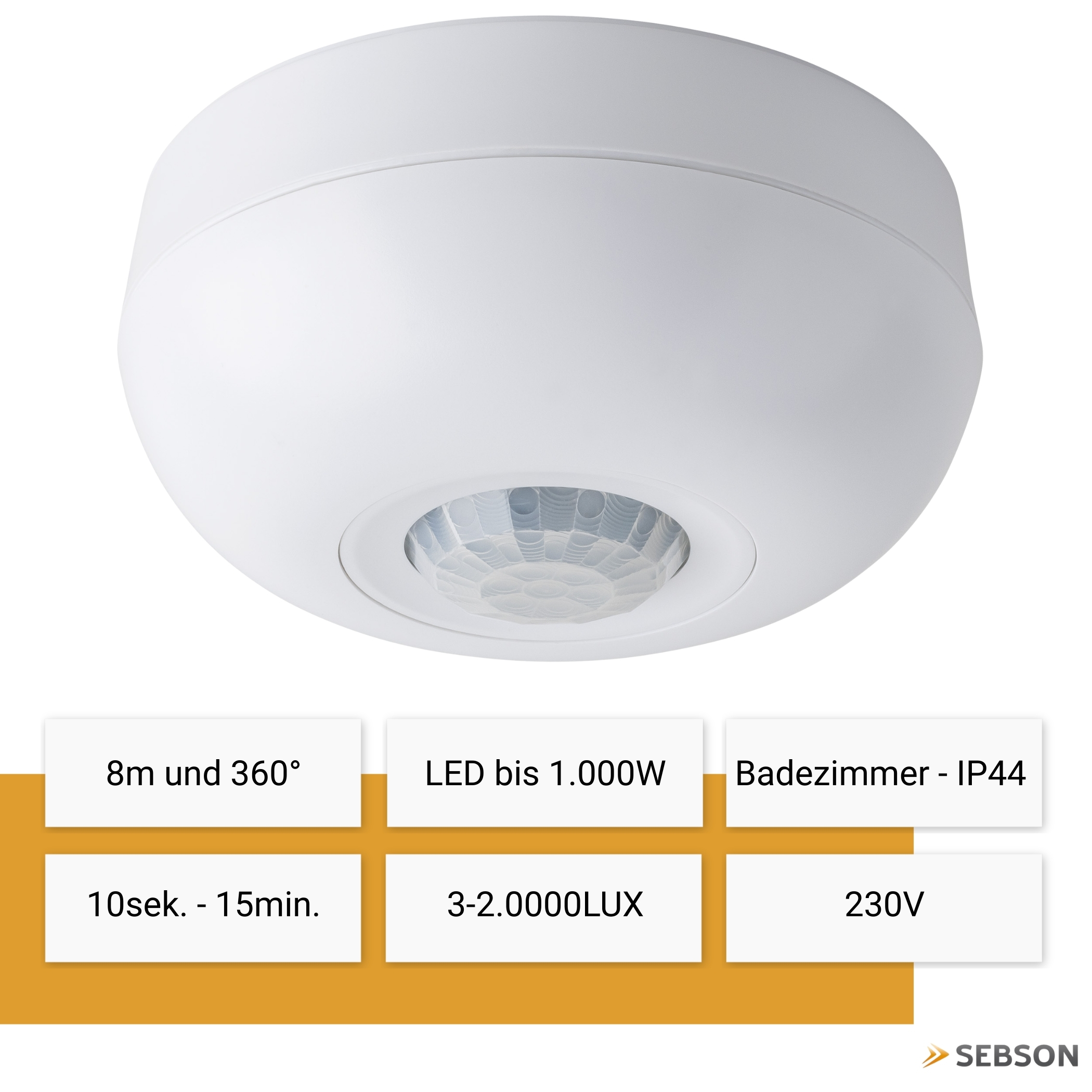

IR motion detector for surface mounting or flush mounting
The infrared sensor detects movements of people, large animals and vehicles in a detection range of up to 8 metres with a detection angle of 360° (in open space) and switches on the connected lighting. After an adjustable time of approx. 10 seconds to 15 minutes, the motion detector switches off again. A control allows the switch-on sensitivity of this device to be adjusted depending on the ambient brightness (in the range between 3 and 2,000 LUX).

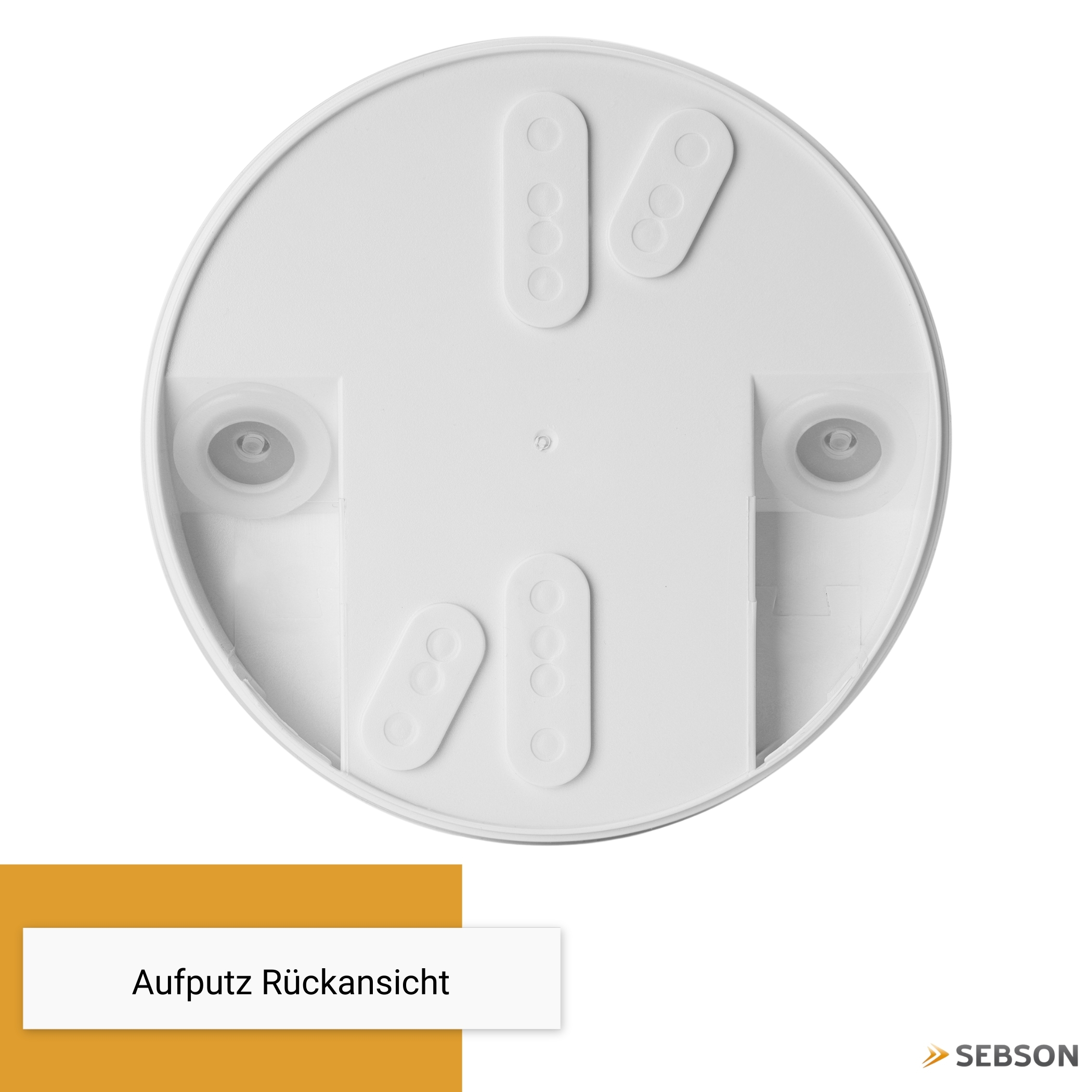

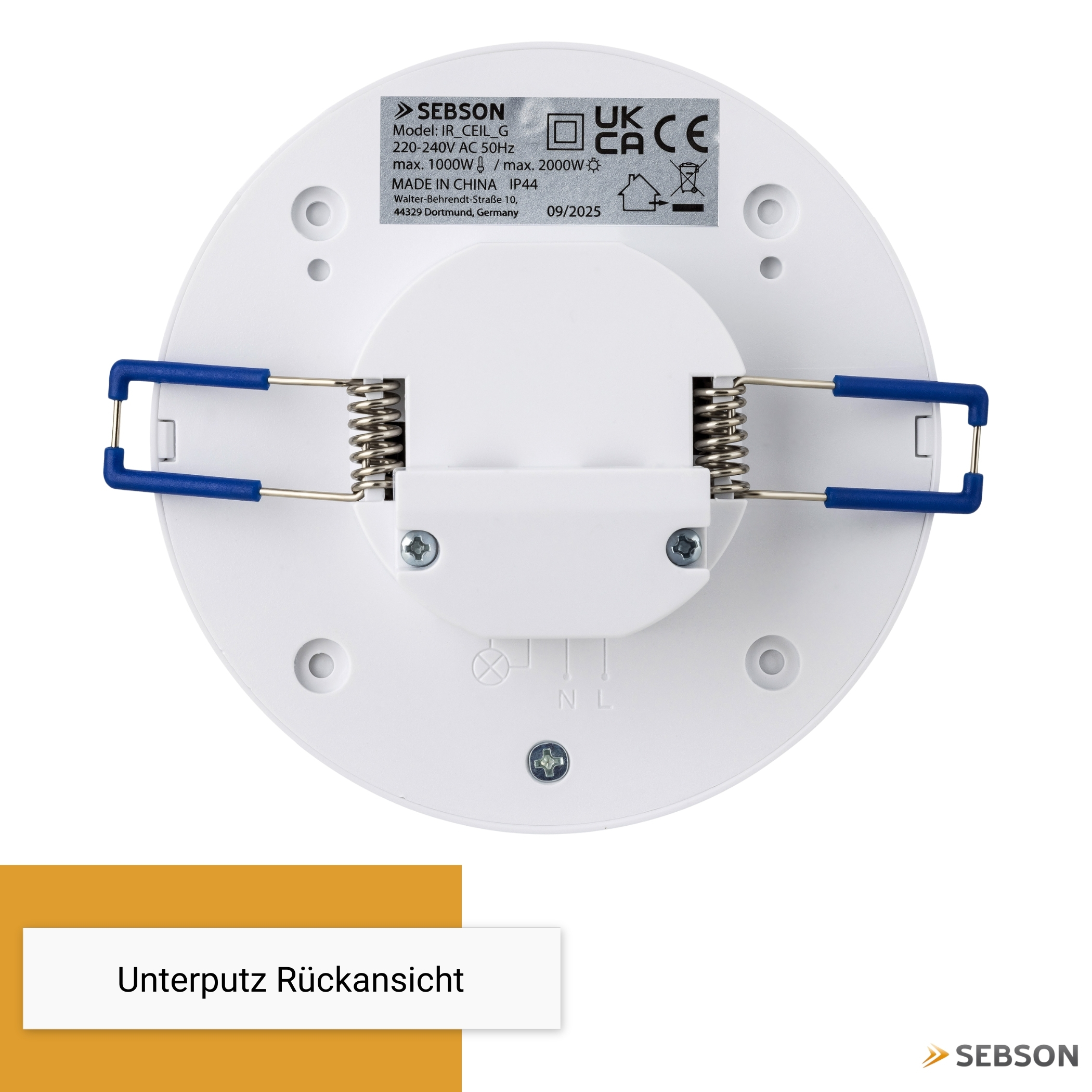

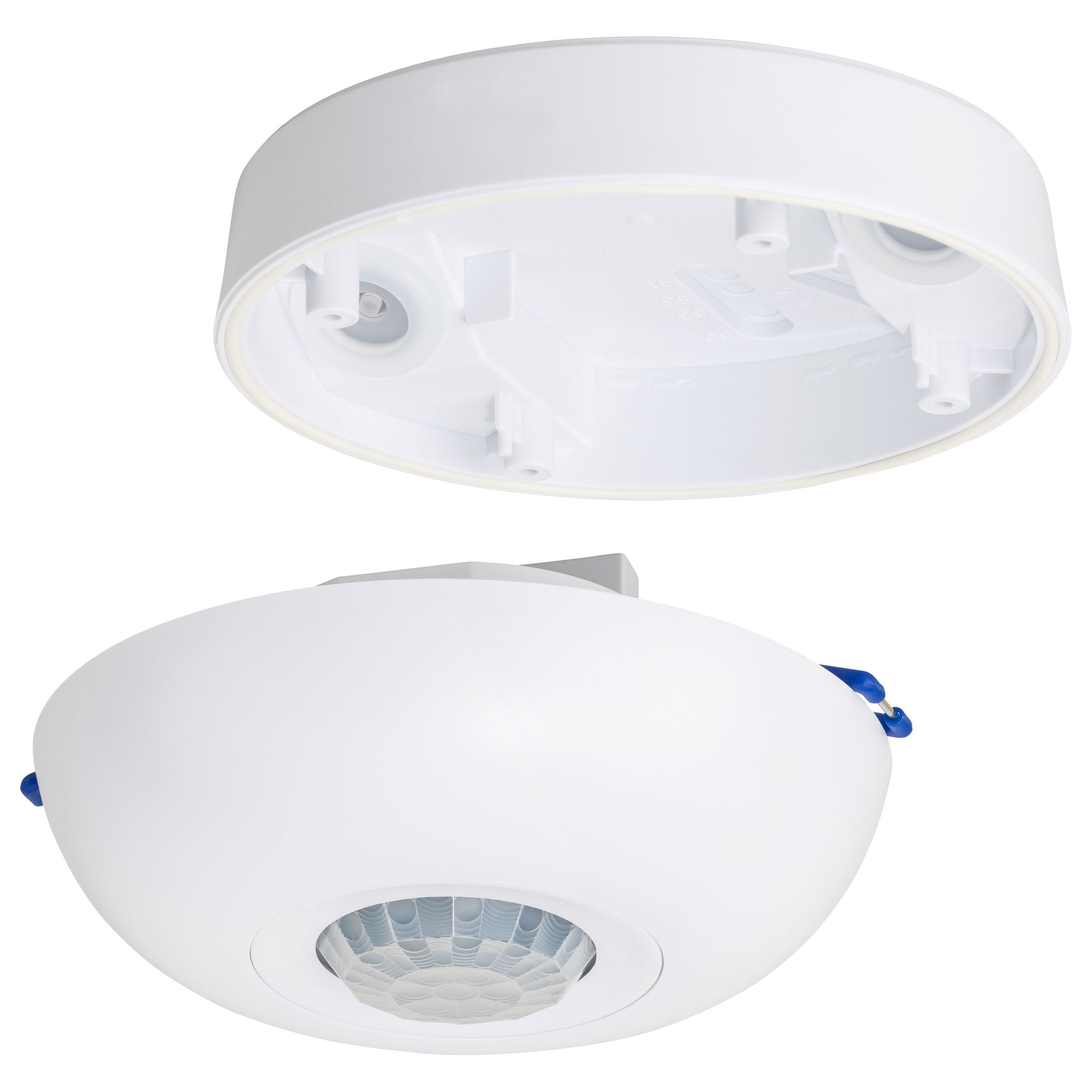

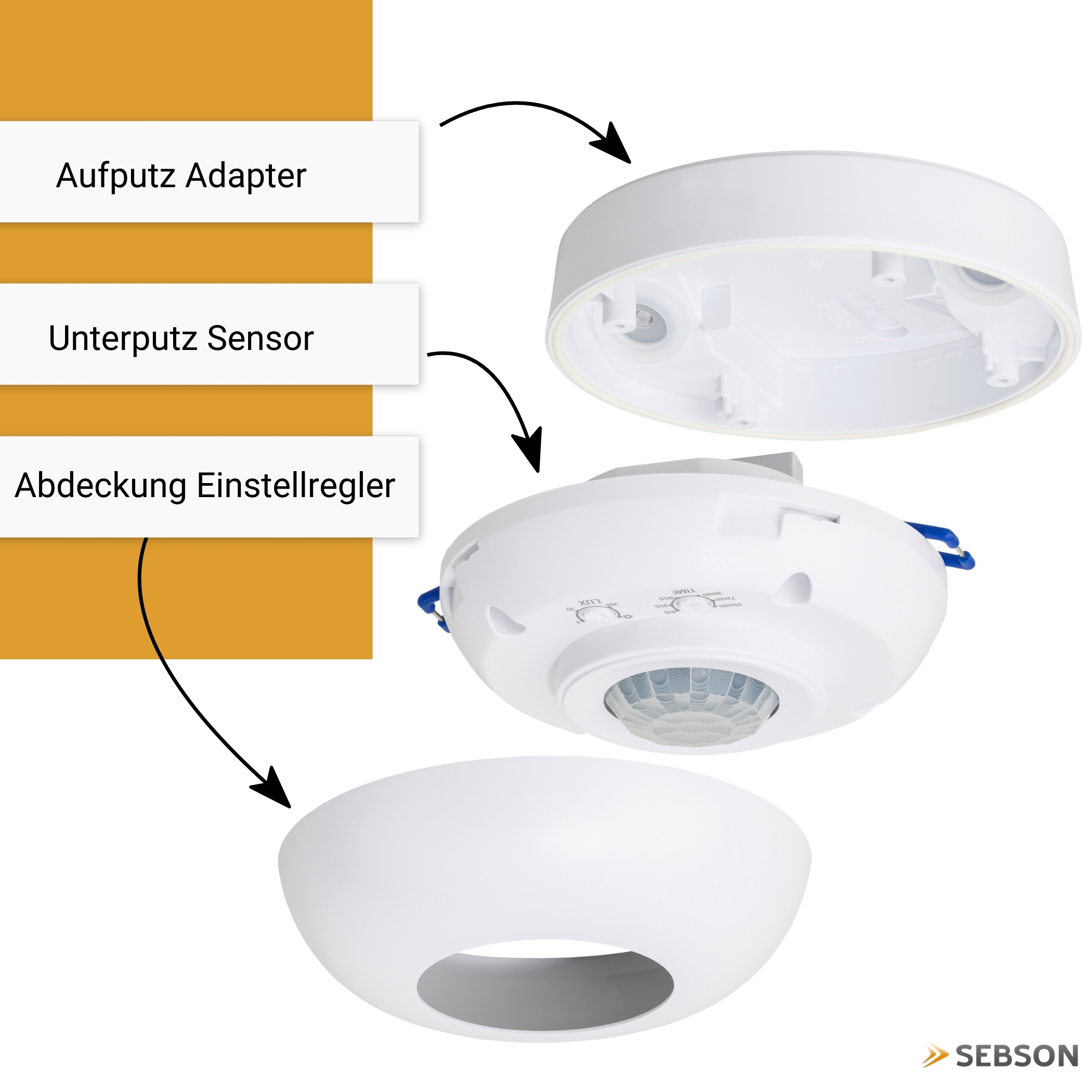

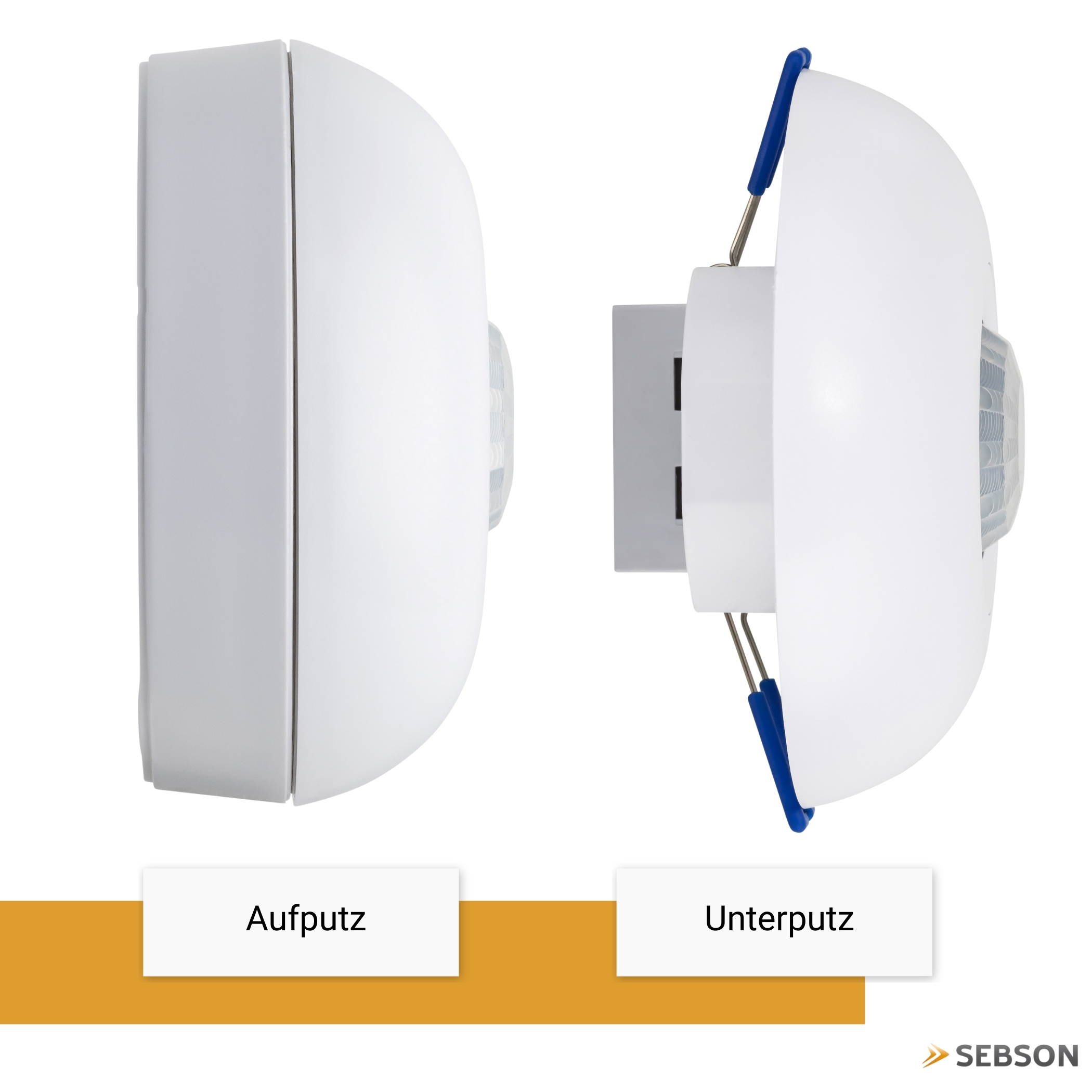

This motion detector can be installed in the ceiling (flush-mounted) and, with the aid of an adapter, can also be mounted directly on the ceiling (surface-mounted).

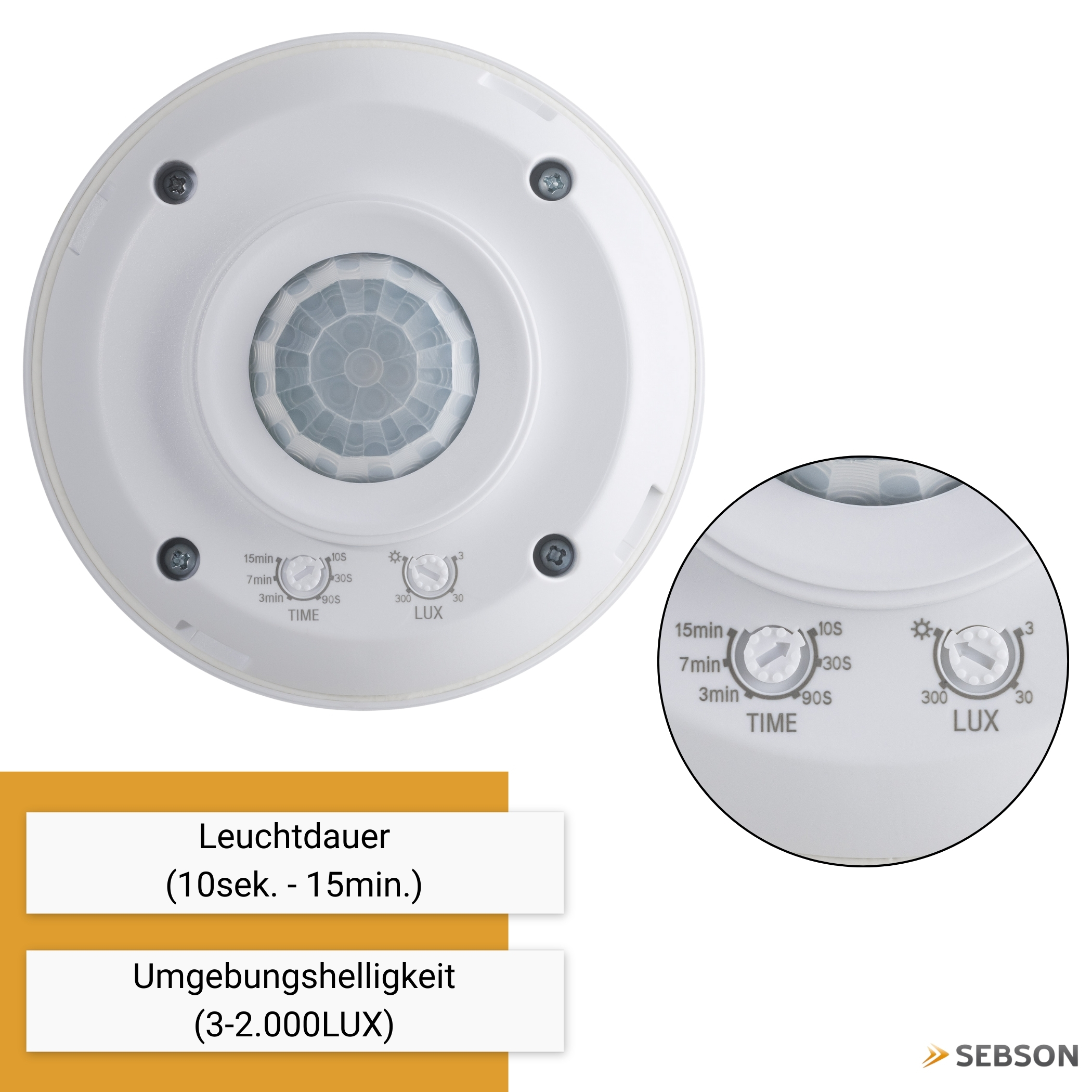

Programmable
- Switch-on time: After an adjustable time of approx. 10 seconds to 15 minutes, the motion detector switches the lighting off again if no more movement is detected.
- Ambient brightness: A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
What range does the motion detector have?

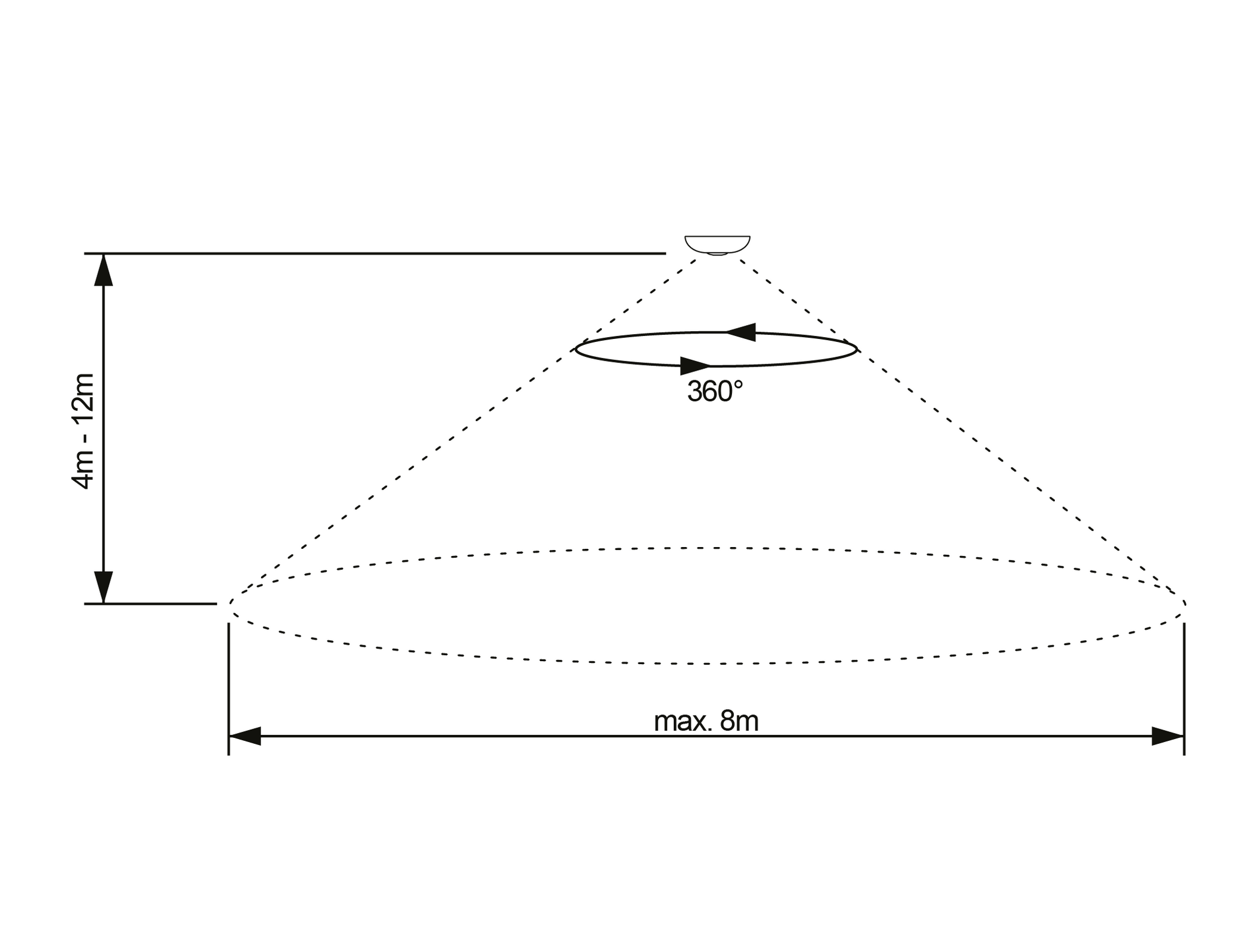

The detection range is up to 8m with a detection angle of 360° and a mounting height of 4-12m on the ceiling.
Where can I use the motion detector?

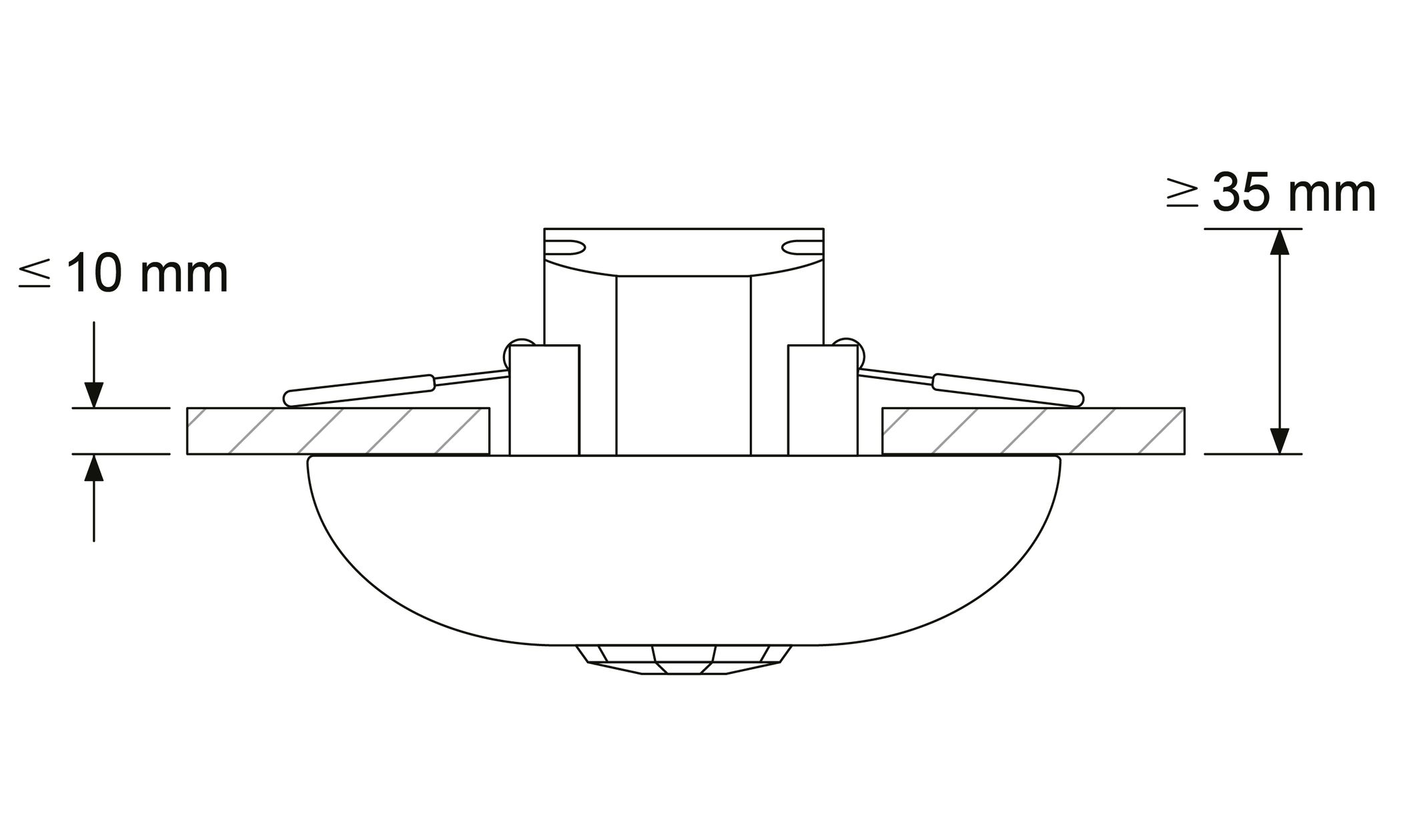

The motion detector is suitable for flush-mounted cavity ceilings with an installation hole diameter of 57-80 mm. Thanks to the surface-mounted adapter, the detector can also be attached directly to the ceiling. With protection class IP44, the motion detector is also suitable for damp rooms, such as bathrooms, indoors.
Infrared sensor
The sensor integrated in this device detects the thermal radiation of moving bodies, e.g. people or animals, and transmits this as an electrical pulse to a connected light, for example. This device then switches on. The detection of heat radiation can be restricted by large pieces of furniture, panes of glass or very high ambient temperatures of over 40°C.
Advantages
- Variable mounting (surface-mounted or flush-mounted)
- Programmable (ambient brightness, operating time)
- LED suitable for up to 1,000W
- Range 8m
- Detection angle 360°
Product features
| Operating voltage: | 220-240V AC 50Hz |
| Installation: | 3-wire |
| Switch type: | Relay |
| Max. Power consumption: | max. 2,000W with usual lamps max. 1,000W with LED and energy saving lamps |
| Power consumption on standby: | 0.5W |
| Detection speed: | 0.6-1.5m/s |
| Detection range: | 8m (<24°C)/360° |
| Ambient brightness: | 3-2,000LUX |
| Protection: | IP44 |
| Switch-off delay: | min. 10s +/-3s - max. 15min +/-2min |
| Ambient temperature: | -20° to +40°C |
| Humidity: | < 93% |

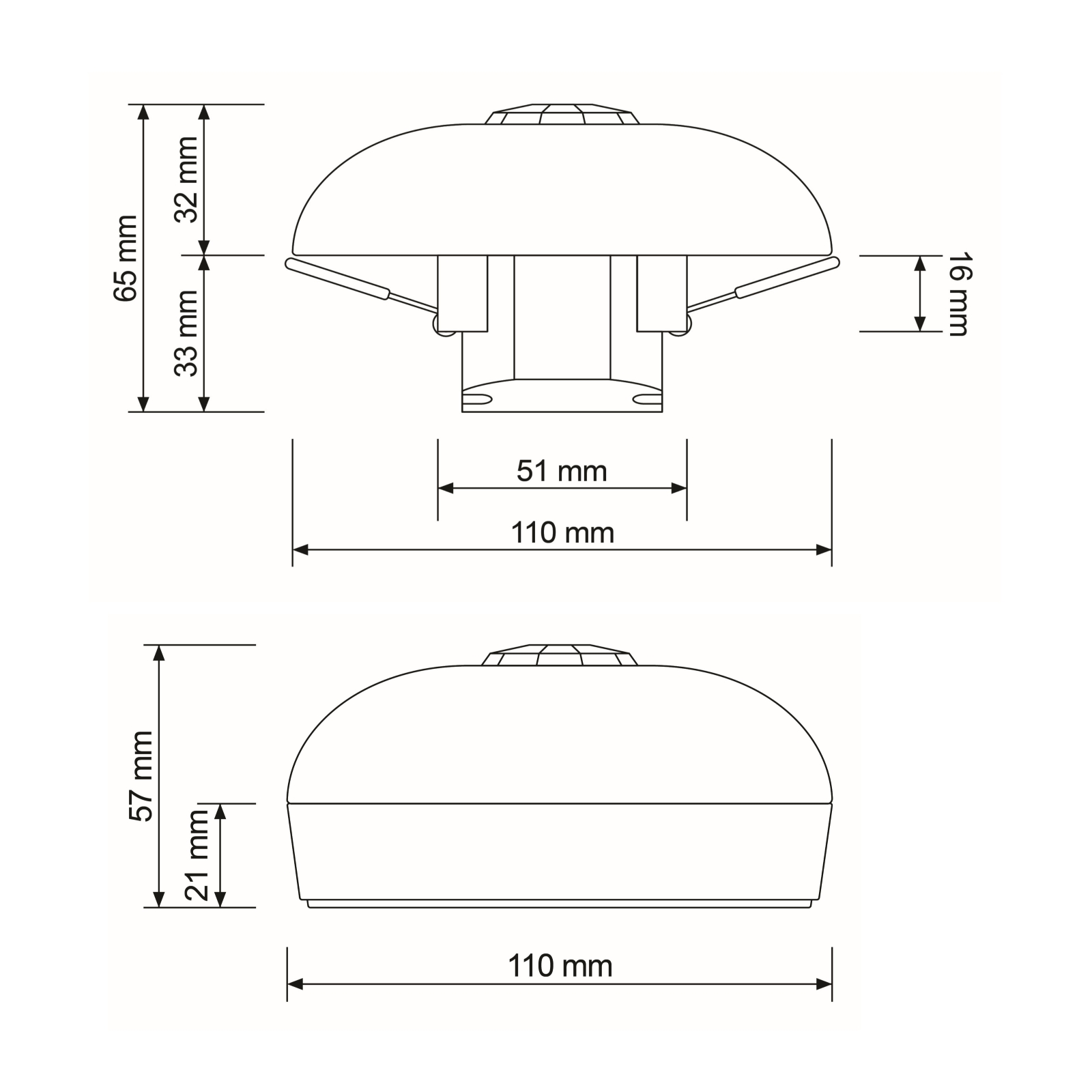

| Dimensions: | Ø110x65mm |
| Housing material: | Plastic |
| Color: | White |
Assembly and operating instructions as PDF
Scope of delivery:
- 1 x SEBSON IR motion detector
| Technical characteristic | Value |
|---|---|
| Item ID | 5715 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 182 g |
| Net weight | 182 g |
