Detects the slightest movements, such as breathing
Flush-mounted, infrared, range 2-6m/360°, max. 1000/2000W, IP54, 3-wire
graduated prices:
| Minimum quantity: 3 | EUR 22.99 |
EUR 23.99
Content
1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "1e62836566e2fcbfe114f1d3a0c1b76f");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "1e62836566e2fcbfe114f1d3a0c1b76f");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('69267556b9a94', 'paypal', 'pay', 'rect', 'blue');
});
} else {
renderPayPalButtons('69267556b9a94', 'paypal', 'pay', 'rect', 'blue');
}
Ready for shipment, delivery time 2 days
Item number IR_ES_F
Safely
shopping
shopping
Free Return
from 40 €
from 40 €
Free Support
0231 2821758
0231 2821758

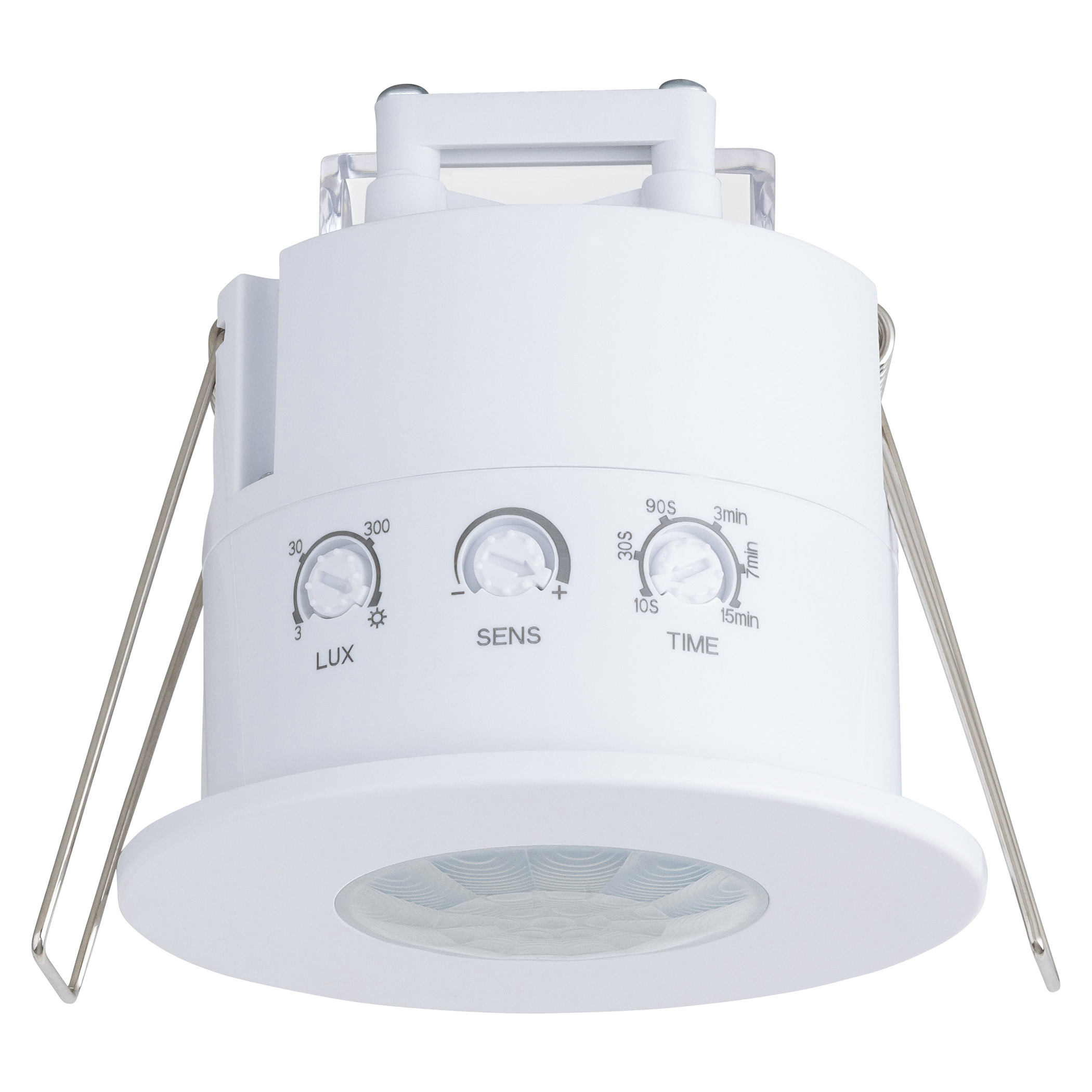

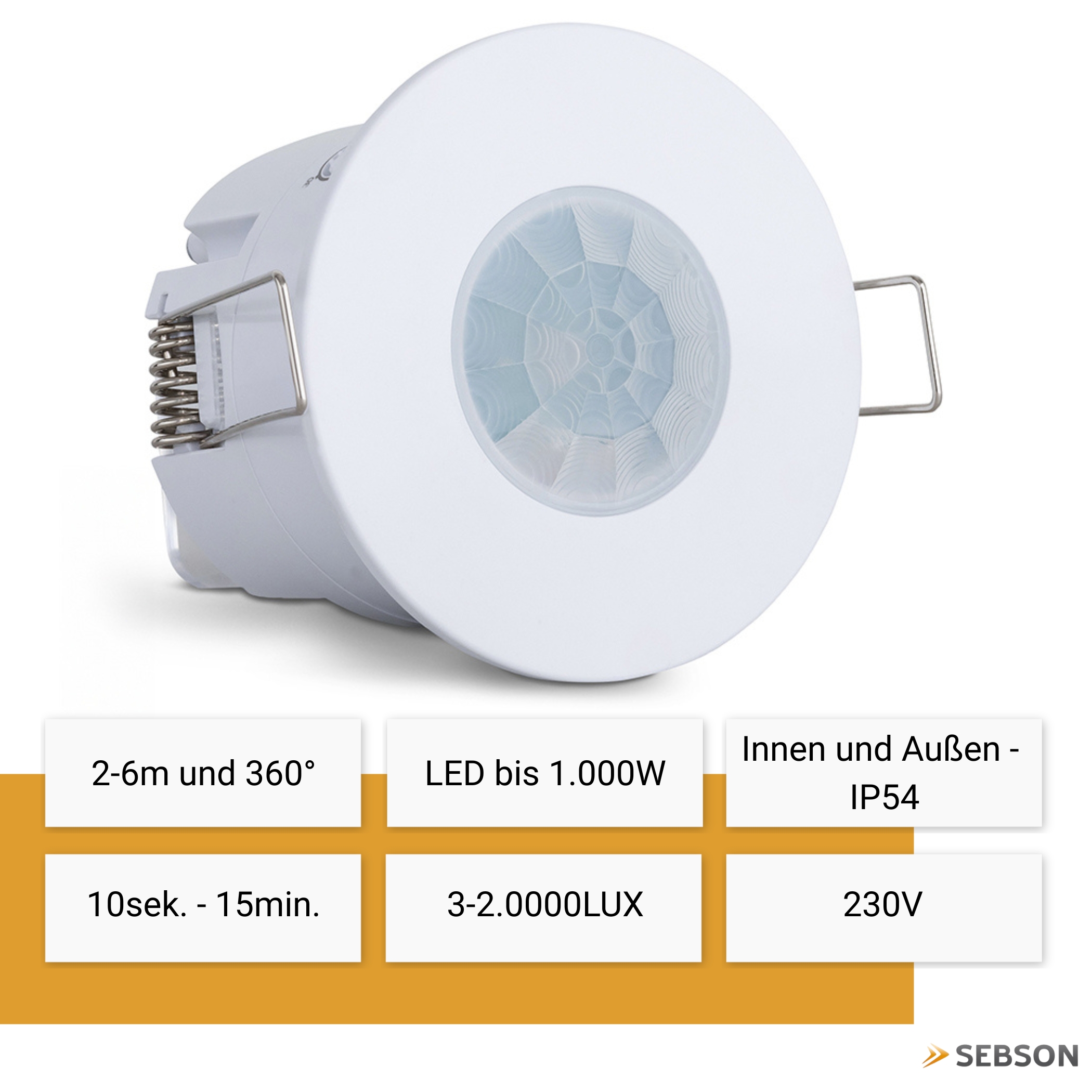

Flush-mounted IR motion detector
This motion detector with IR sensor detects even the slightest movements, such as breathing movements, of people and large animals. The lighting switches on within a detection range of 2-6 m and a detection angle of 360°. This motion detector with infrared sensor is suitable for LED lighting. The maximum power consumption is 1,000W for LED lighting.
Thanks to its IP54 protection rating, this motion detector can be used both indoors and outdoors.
With breathing detection

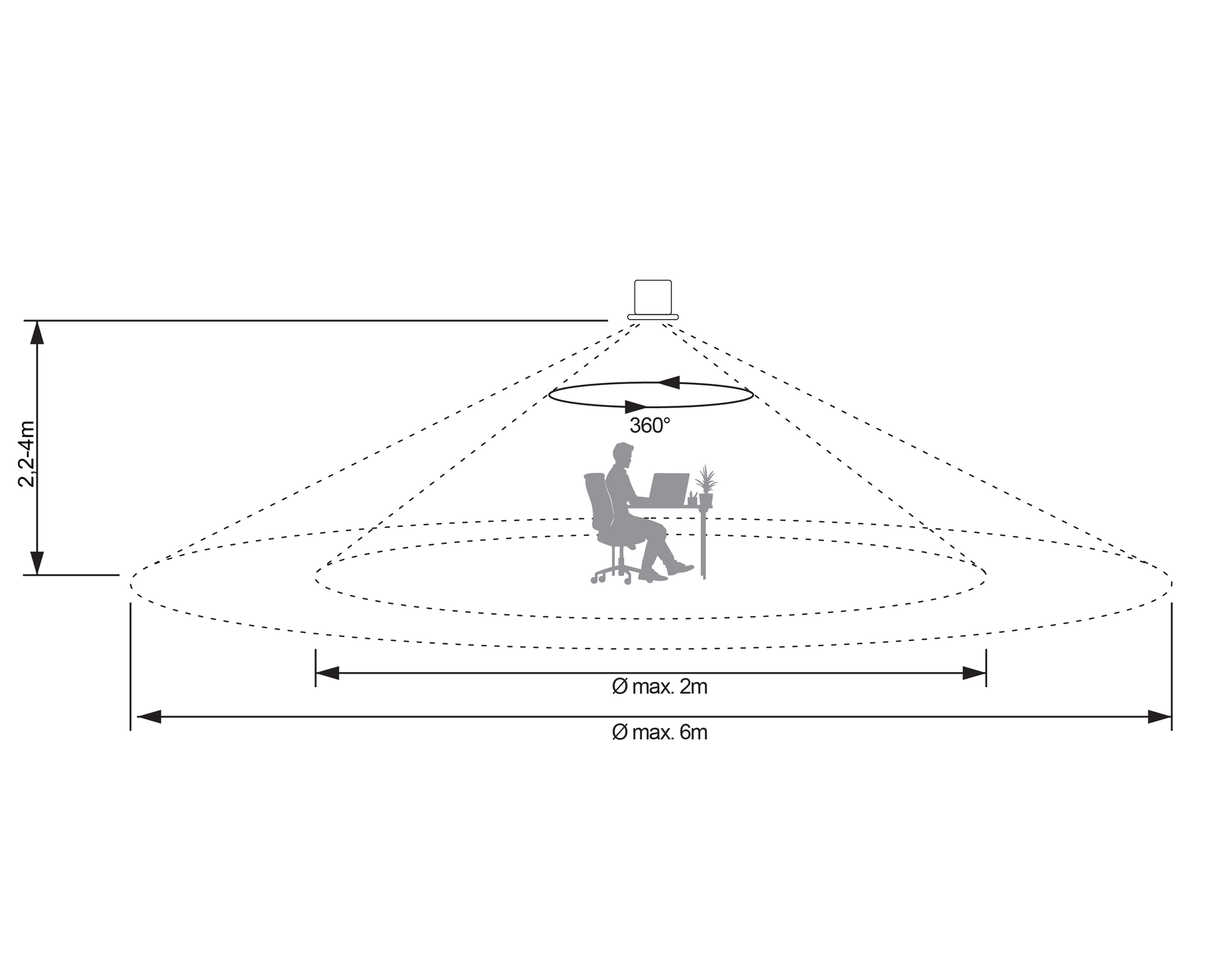

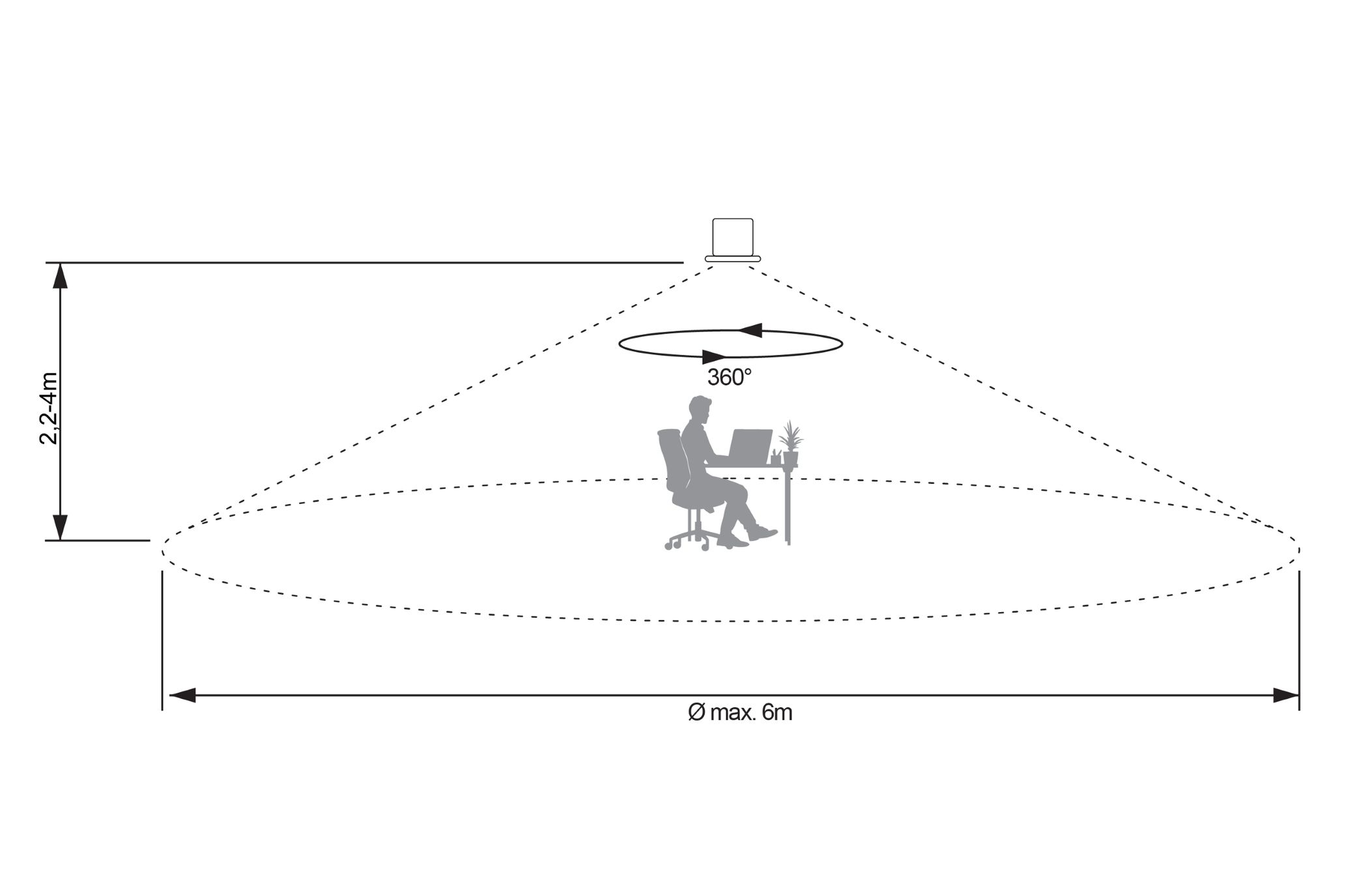

This motion detector recognises both movements at rest, e.g. seated activities (breathing movements), and active movements. The sensor detects even the smallest movements, such as breathing, with a detection range of 2m and an installation height of 2.2–4m. The detection range covers up to 6m for active movements.

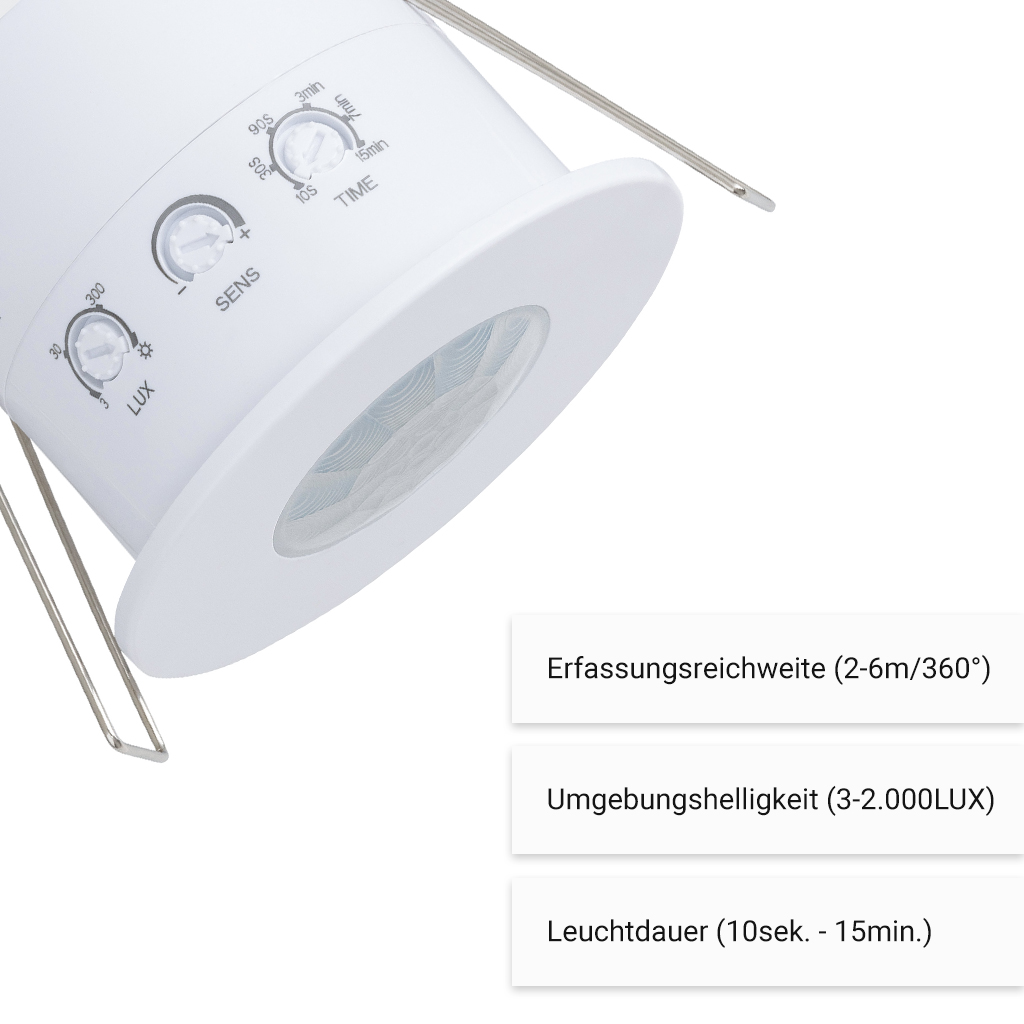

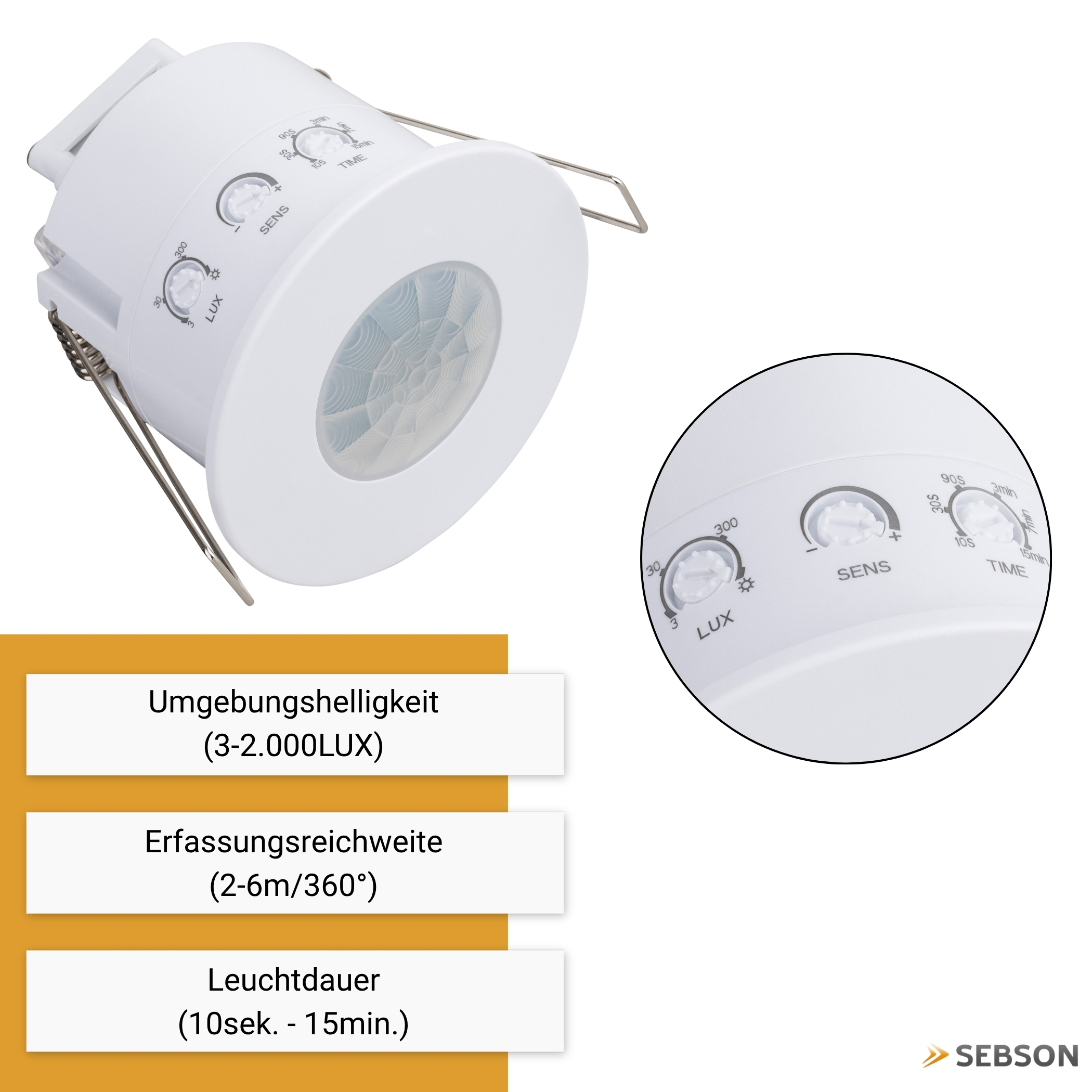

Programmable
- Switch-on time: After an adjustable time of approx. 10 seconds to 15 minutes, the motion detector switches the lighting off again if no more movement is detected.
- Ambient brightness: A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
- Range: Thanks to an additional control, the detection range for active movements can be adjusted between 2-6 metres.
Where can I use the motion detector?

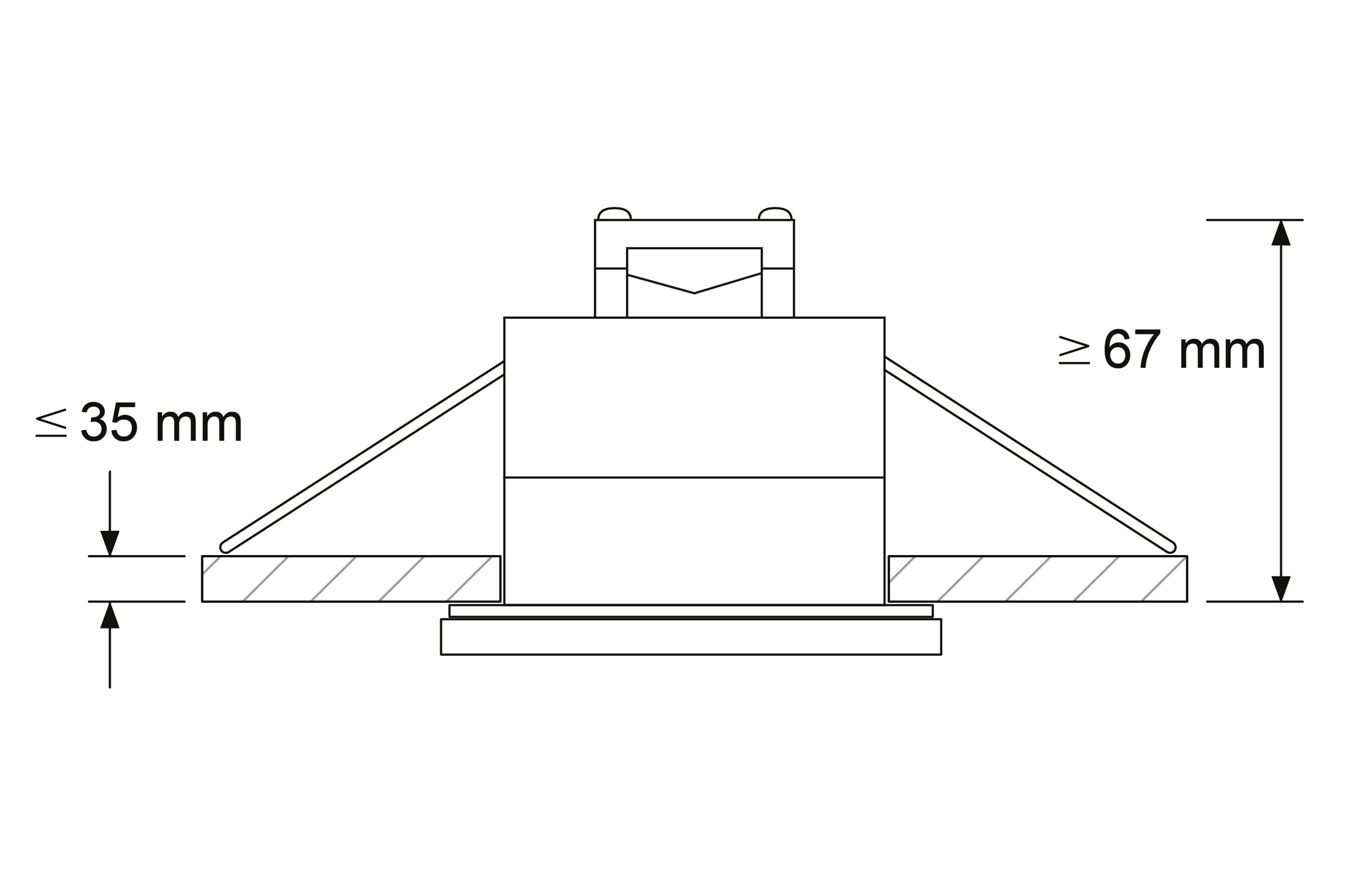

Thanks to its flat design, this built-in motion detector fits almost seamlessly into the ceiling. Suitable for flush-mounted cavity ceilings with an installation hole diameter of 63-68 mm. Thanks to its IP54 protection rating, the detector is suitable for both indoor and outdoor use.
Infrared sensor
The sensor integrated in this device detects the thermal radiation of moving bodies, e.g. people or animals, and transmits this as an electrical pulse to a connected light, for example. This device then switches on. The detection of heat radiation can be restricted by large pieces of furniture, panes of glass or very high ambient temperatures of over 40°C.

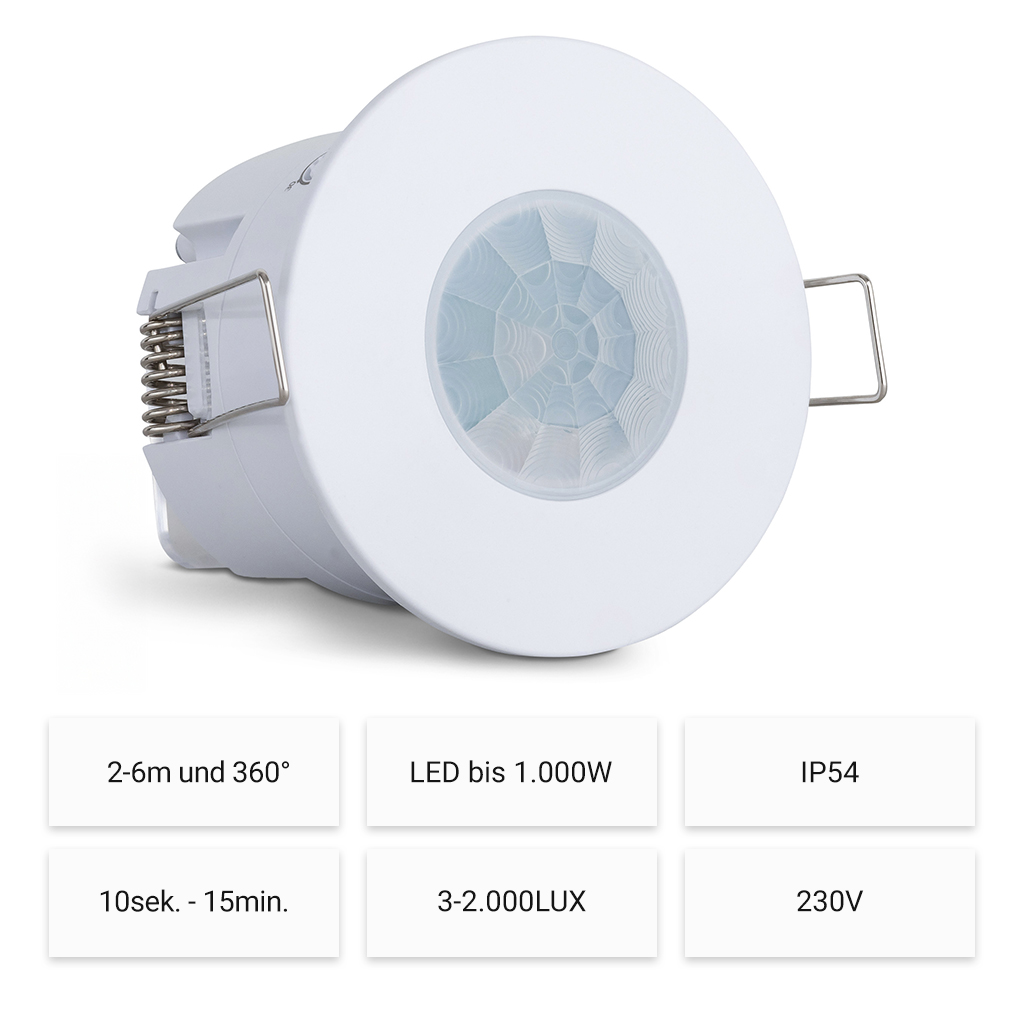

Advantages
- Breath detection
- Programmable (ambient brightness, operating time, range)
- LED suitable for up to 1,000W
- Range 6m
- Detection angle 360°
Product features
| Operating voltage: | 220-240V AC 50Hz |

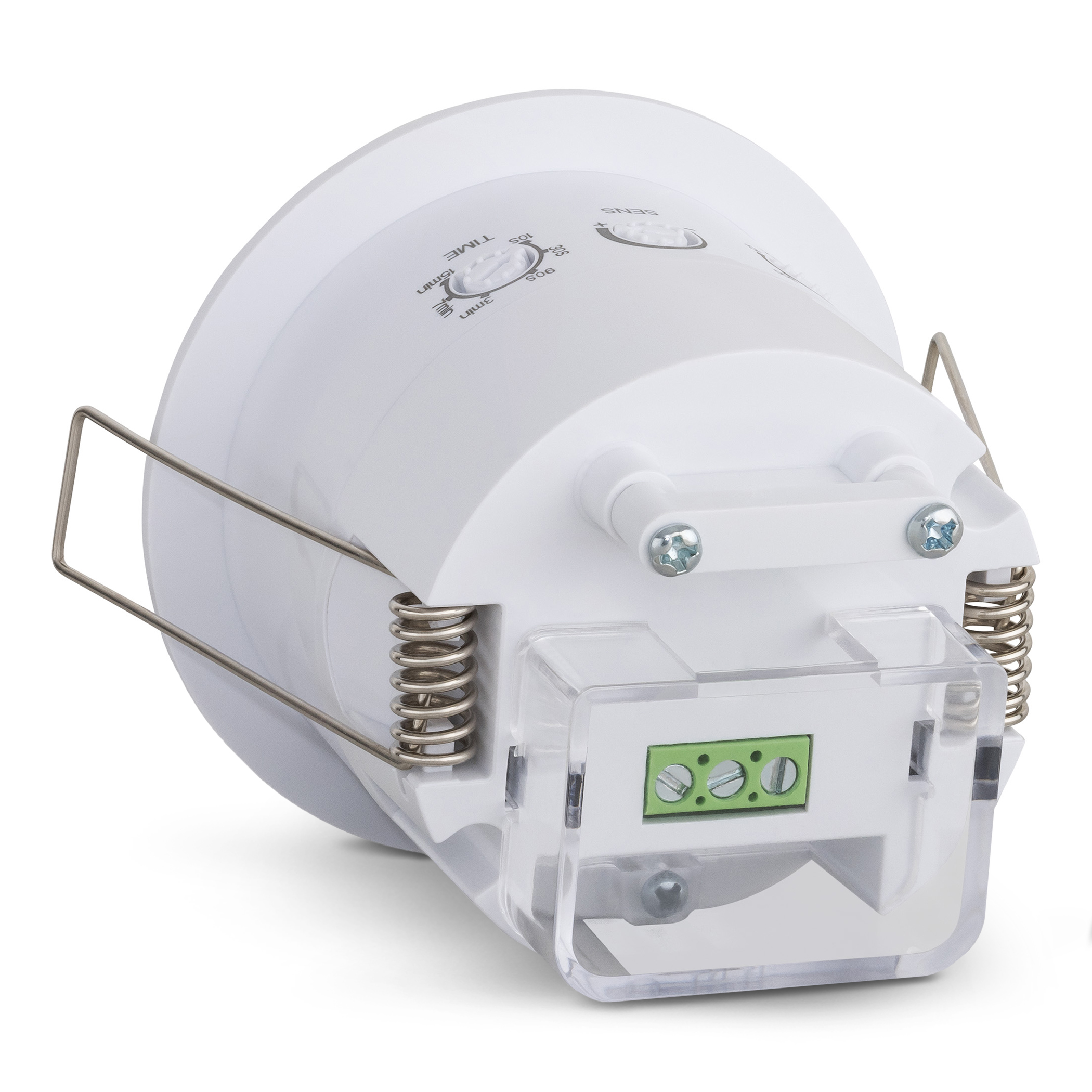

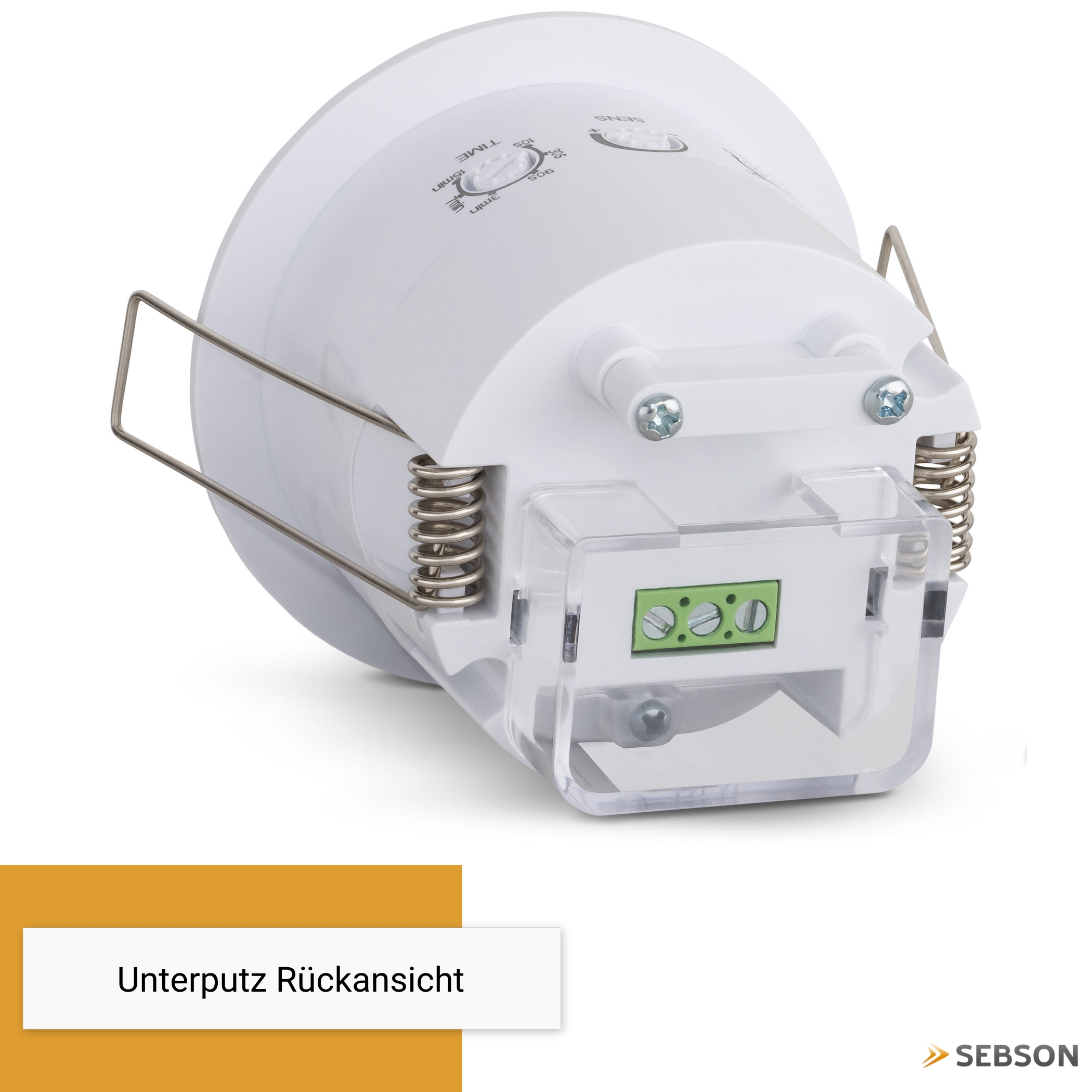

| Installation: | 3-wire |
| Switch type: | Relay |
| Max. Power consumption: | max. 2,000W with usual lamps max. 1,000W with LED and energy saving lamps |
| Power consumption on standby: | 0.5W |
| Detection speed: | 0.6-1.5m/s |
| Detection range: | 2-6m (<24°C)/360° |
| Ambient brightness: | 3-2,000LUX |
| Protection: | IP54 |
| Switch-off delay: | min. 10s +/-3s - max. 15min +/-2min |
| Ambient temperature: | -20° to +40°C |
| Humidity: | < 93% |

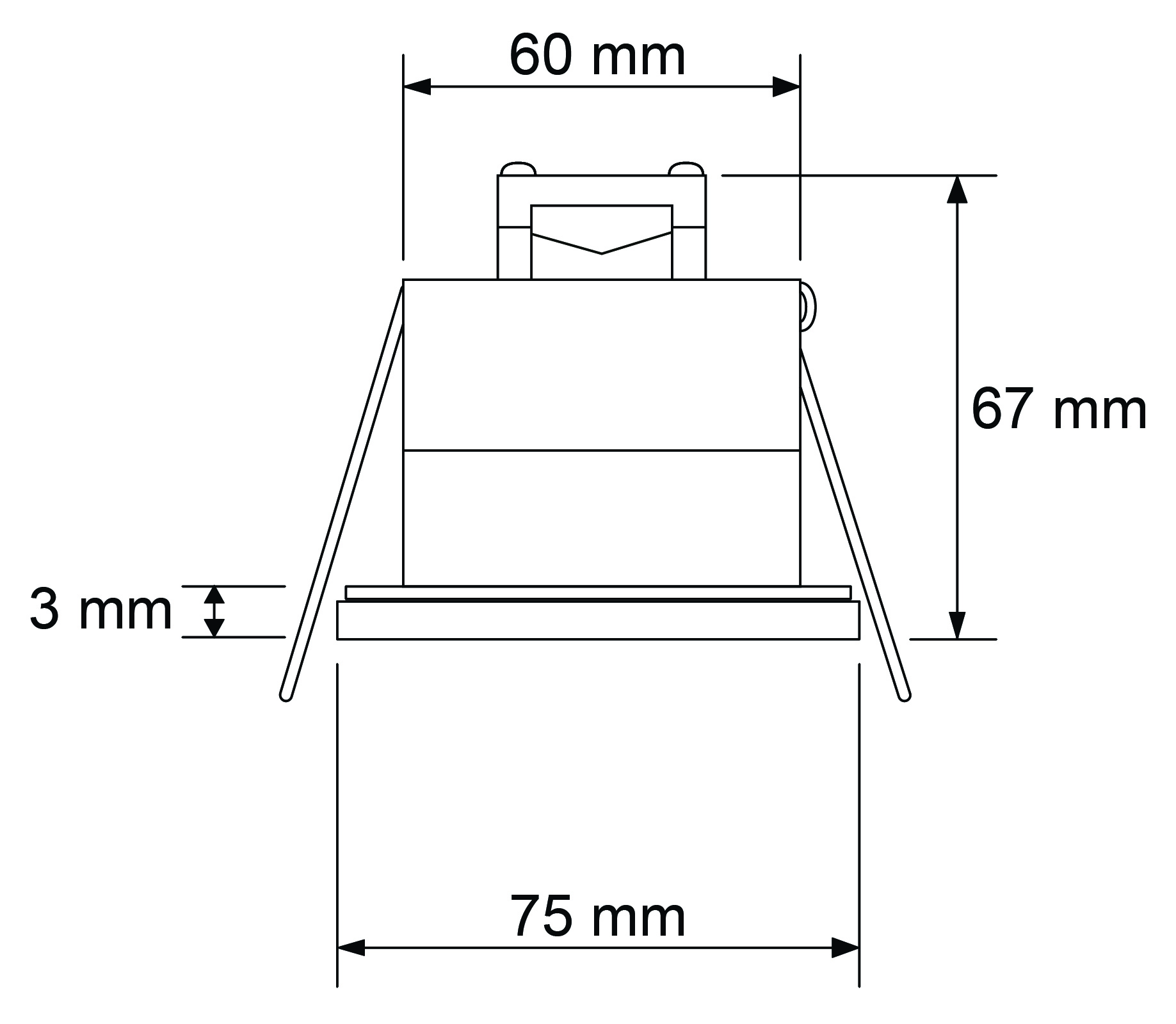

| Dimensions: | Ø75x67mm |
| Mounting hole: | Ø63-68mm |
| Housing material: | Plastic |
| Color: | White |
Assembly and operating instructions as PDF
Scope of delivery:
- 1 x SEBSON IR motion detector
| Technical characteristic | Value |
|---|---|
| Item ID | 5712 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 102 g |
| Net weight | 102 g |
