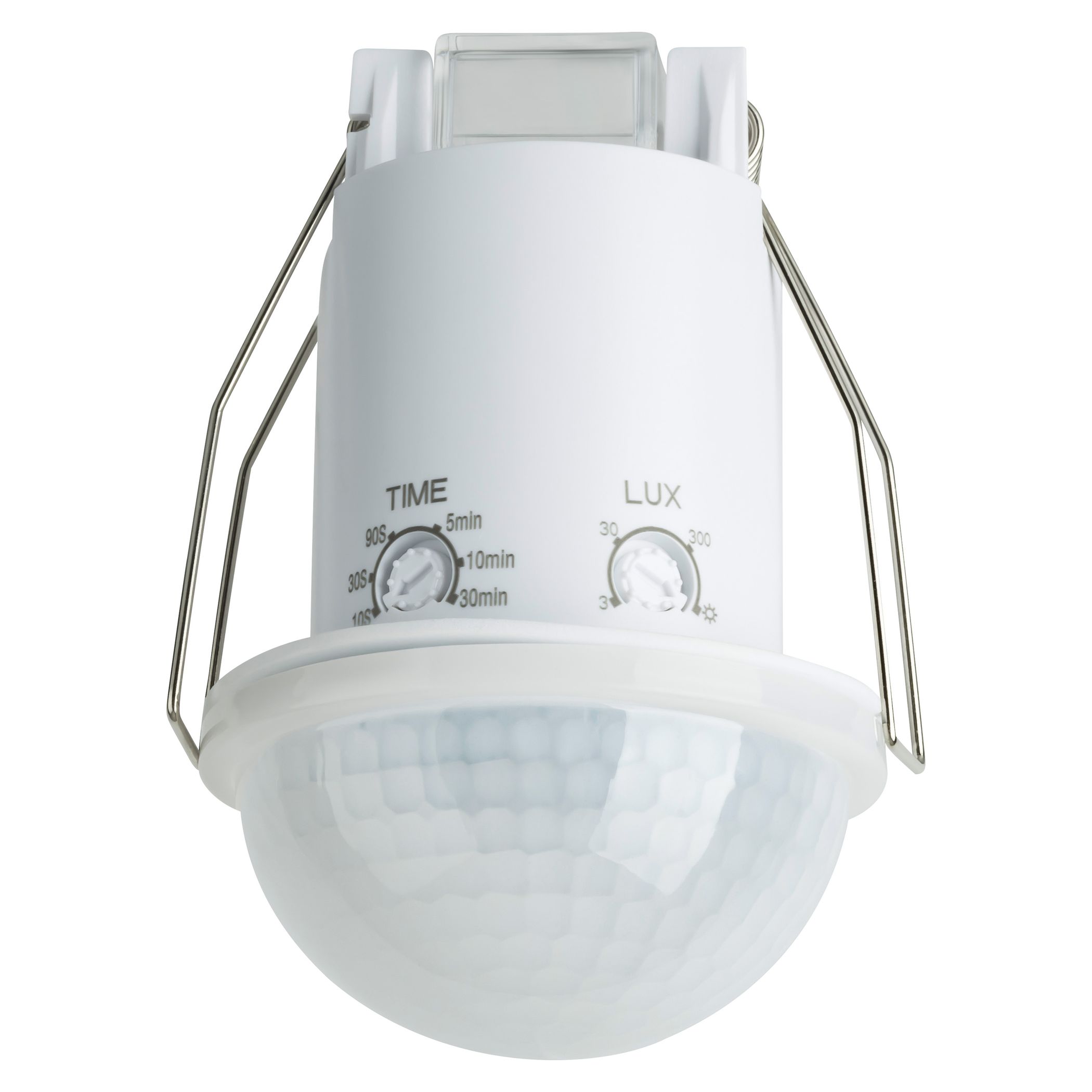

Flush-mounted IR motion detector
This motion detector with IR sensor recognises movements of people and large animals. The lighting switches on within a detection range of 20 metres and a detection angle of 360°. After an adjustable time of approx. 10 seconds to 30 minutes, the motion detector switches the lighting off again if no more movement is detected. A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
The built-in motion detector with infrared sensor is suitable for LEDs. The maximum power consumption is 600W with LED lighting and other energy-saving lamps.
Programmable
- Switch-on time: After an adjustable time of approx. 10 seconds to 30 minutes, the motion detector switches the lighting off again if no more movement is detected.
- Ambient brightness: A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
What range does the motion detector have?

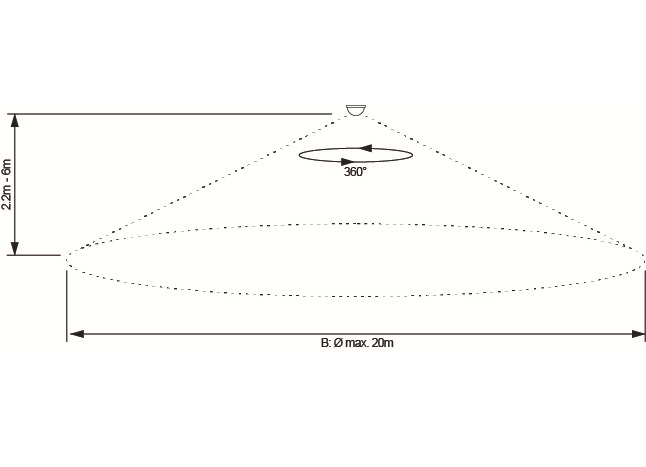

The detection range is up to 20m with a detection angle of 360° and a mounting height of 2.2-6m.
Where can I use the motion detector?
This flush-mounted motion detector is designed for recessed ceiling mounting and can be used both indoors and outdoors thanks to its IP54 protection class.

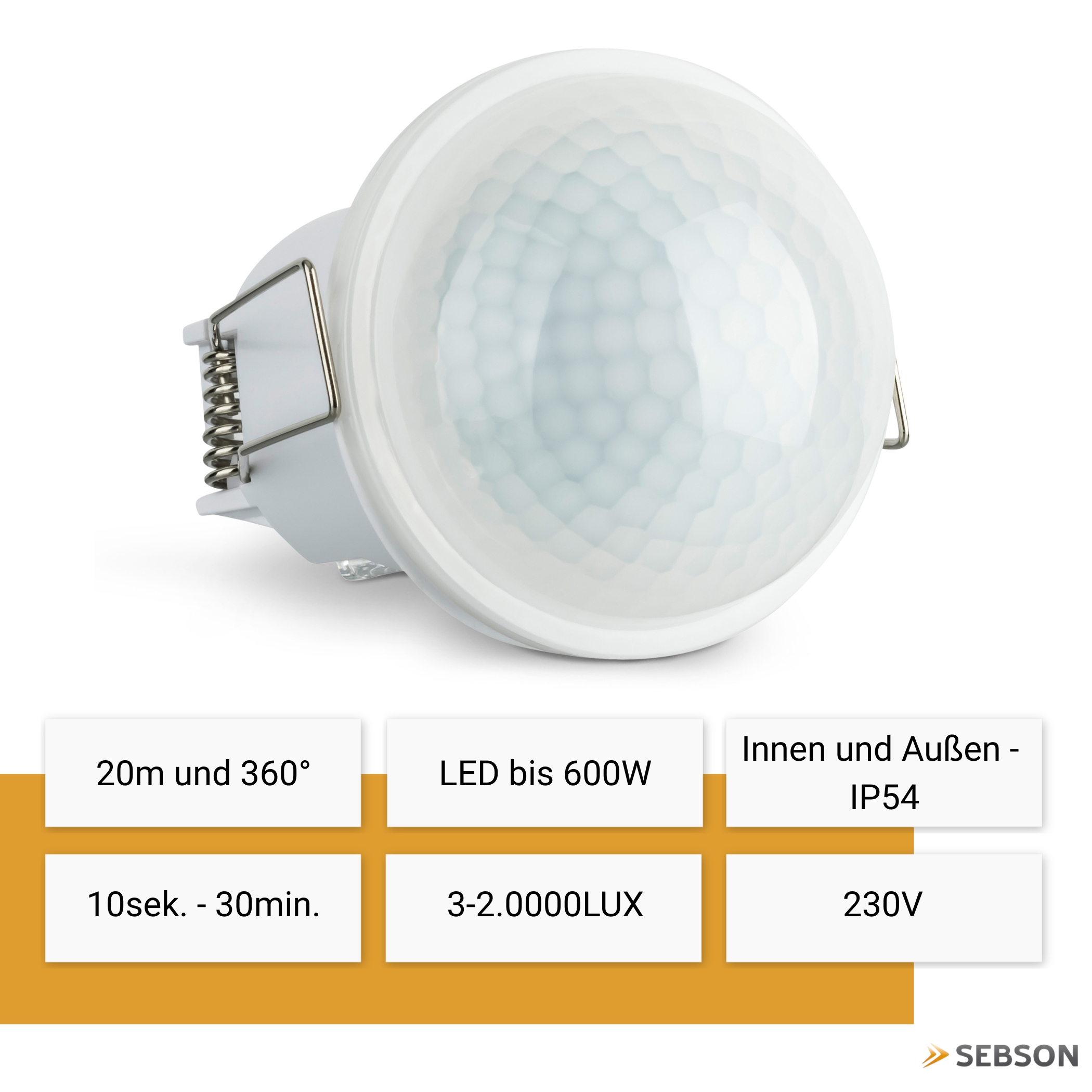

Advantages
- Programmable (ambient brightness, switch-on duration)
- LED suitable for up to 600W
- Range 20m
- Detection angle 360°
- Small diameter (installation hole Ø45-48mm)
Product features
| Operating voltage: | 220-240V AC 50Hz |
| Installation: | 3-wire |
| Switch type: | Relay |
| Max. Power consumption: | max. 1,200W with usual lamps max. 600W with LED and energy saving lamps |
| Power consumption on standby: | 0.5W |
| Detection speed: | 0.6-1.5m/s |
| Detection range: | 20m (<24°C)/360° |
| Ambient brightness: | 3-2,000LUX |
| Protection: | IP54 |
| Switch-off delay: | min. 10s +/-3s - max. 30min +/-2min |
| Ambient temperature: | -20° to +40°C |
| Humidity: | < 93% |
| Dimensions: | Ø62x92mm |
| Mounting hole: | Ø45-48mm |
| Housing material: | Plastic |
| Color: | White |
Assembly and operating instructions as PDF
Scope of delivery:
- 1 x SEBSON IR motion detector
| Technical characteristic | Value |
|---|---|
| Item ID | 5647 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 70 g |
| Net weight | 70 g |
