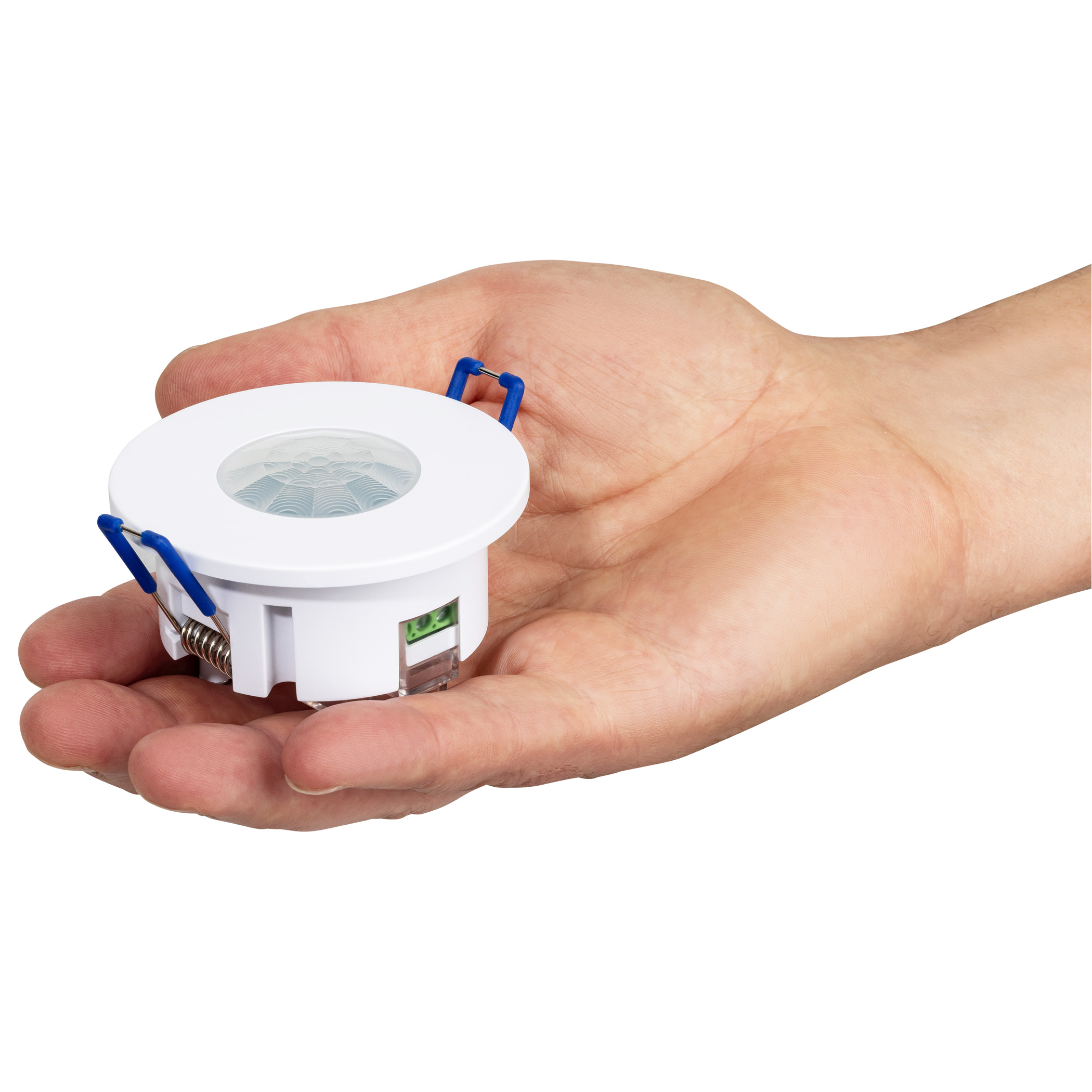

Recessed PIR Motion Sensor
This motion detector with PIR infrared sensor detects movement from people and large animals within a detection range of up to 8m and a 360° detection angle, automatically switching connected lighting on. Thanks to the included cover rings in white, black and silver, the design can be individually adapted to its surroundings.

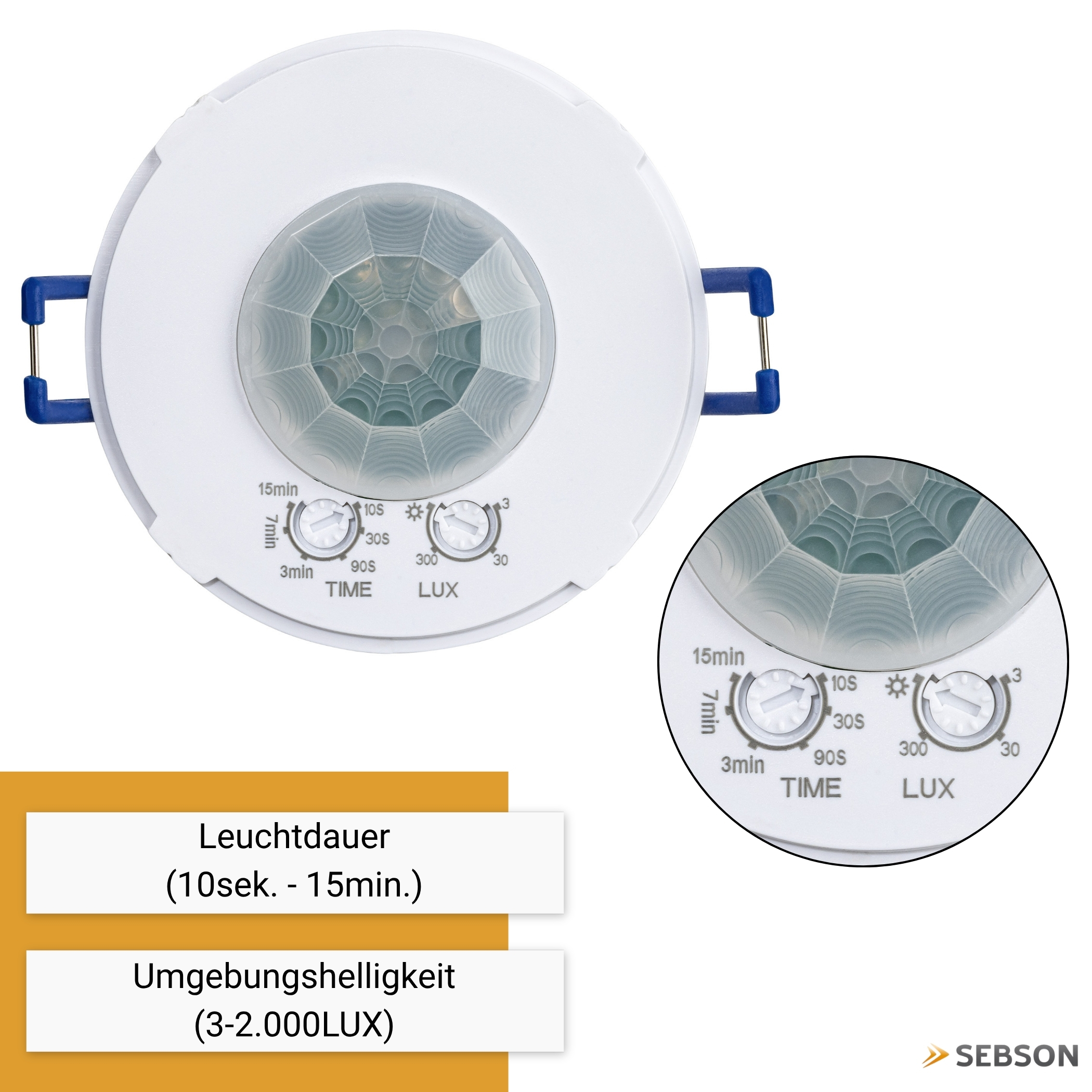

Programmable
The switch-on duration and light sensitivity can be adjusted at any time. The controls are located behind a cover directly next to the sensor, allowing the settings to be changed even after installation.
- Switch-on duration: After an adjustable time period of approximately 10 seconds to 15 minutes, the motion sensor switches the lighting off again if no further movement is detected.
- Ambient light level: Using the adjustment control, the switch-on sensitivity of this device can be regulated according to the ambient light level (between 3 and 2,000 LUX).
What is the detection range of the motion sensor?

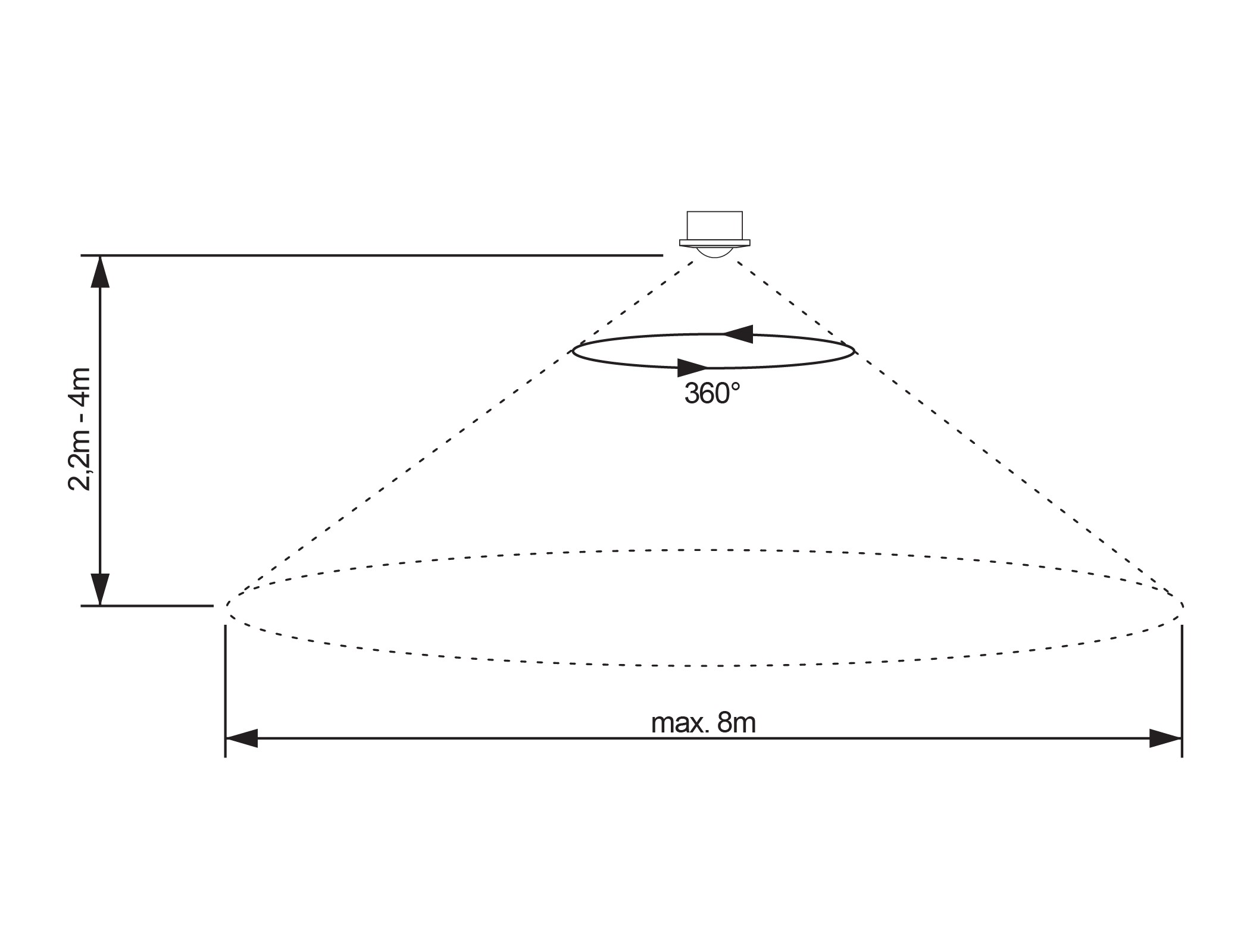

The detection range is up to 8m with a 360° detection angle and a mounting height of 2.2-4m.
Where can I use the motion sensor?
Thanks to its low-profile design, this recessed ceiling motion sensor blends almost seamlessly into the ceiling. Suitable for recessed installation in suspended ceilings with a cut-out diameter of 63-66mm for indoor use.
Advantages
- Programmable (ambient light level, switch-on duration)

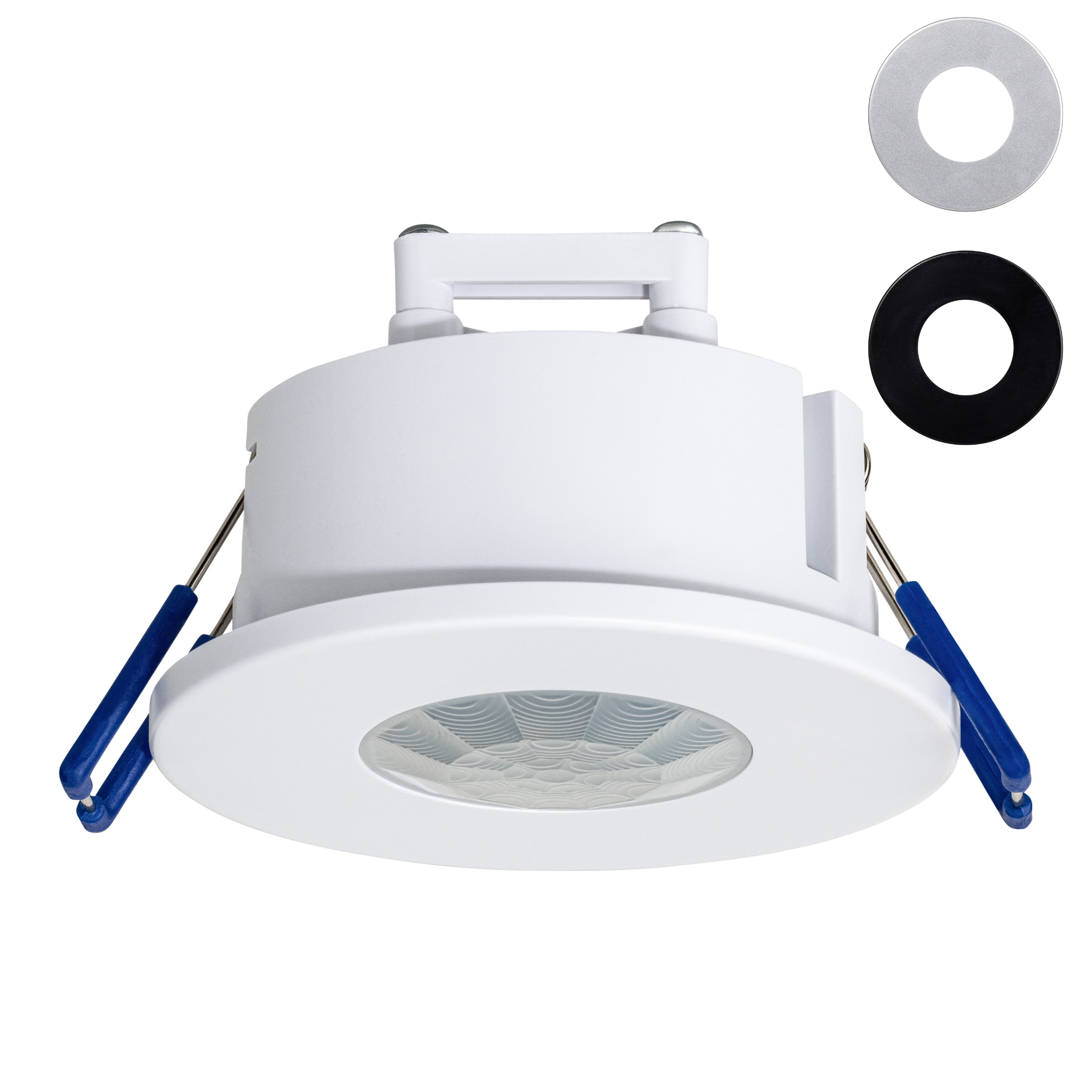

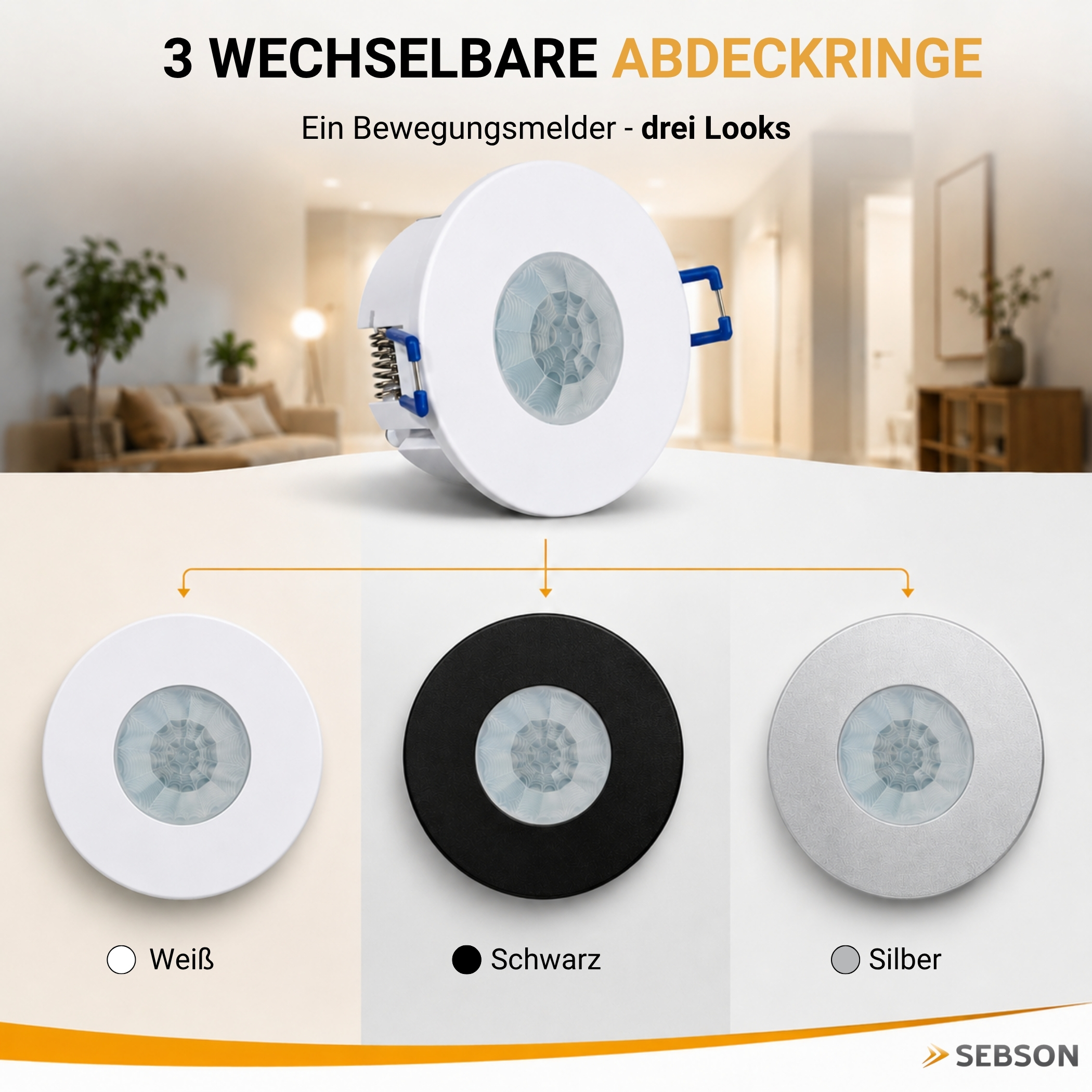

- 3 interchangeable cover rings (white, black, silver)
- Suitable for LED lighting up to 600W
- Detection range up to 8m
- 360° detection angle

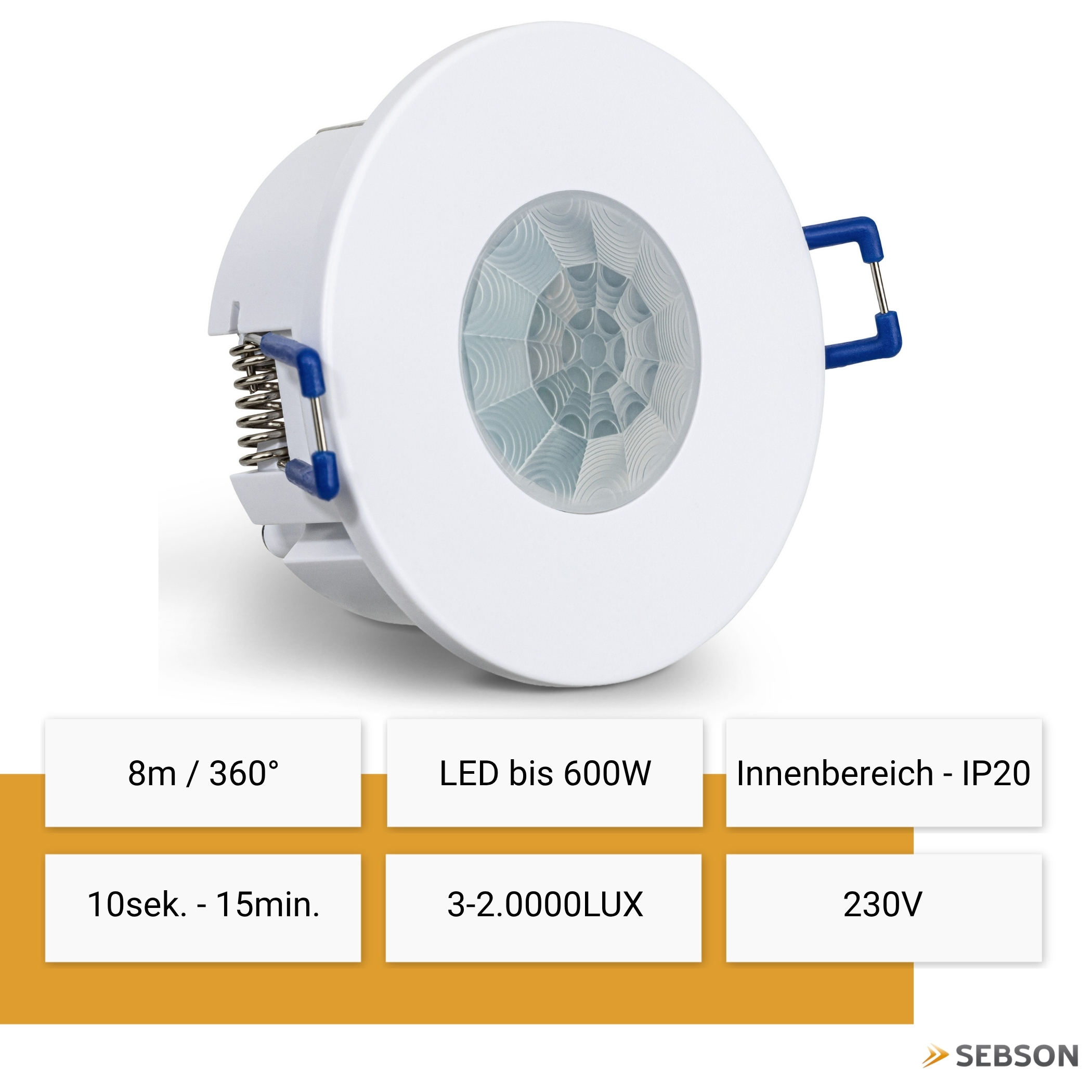

Technical Specifications
| Operating voltage: | 220-240V AC 50Hz |

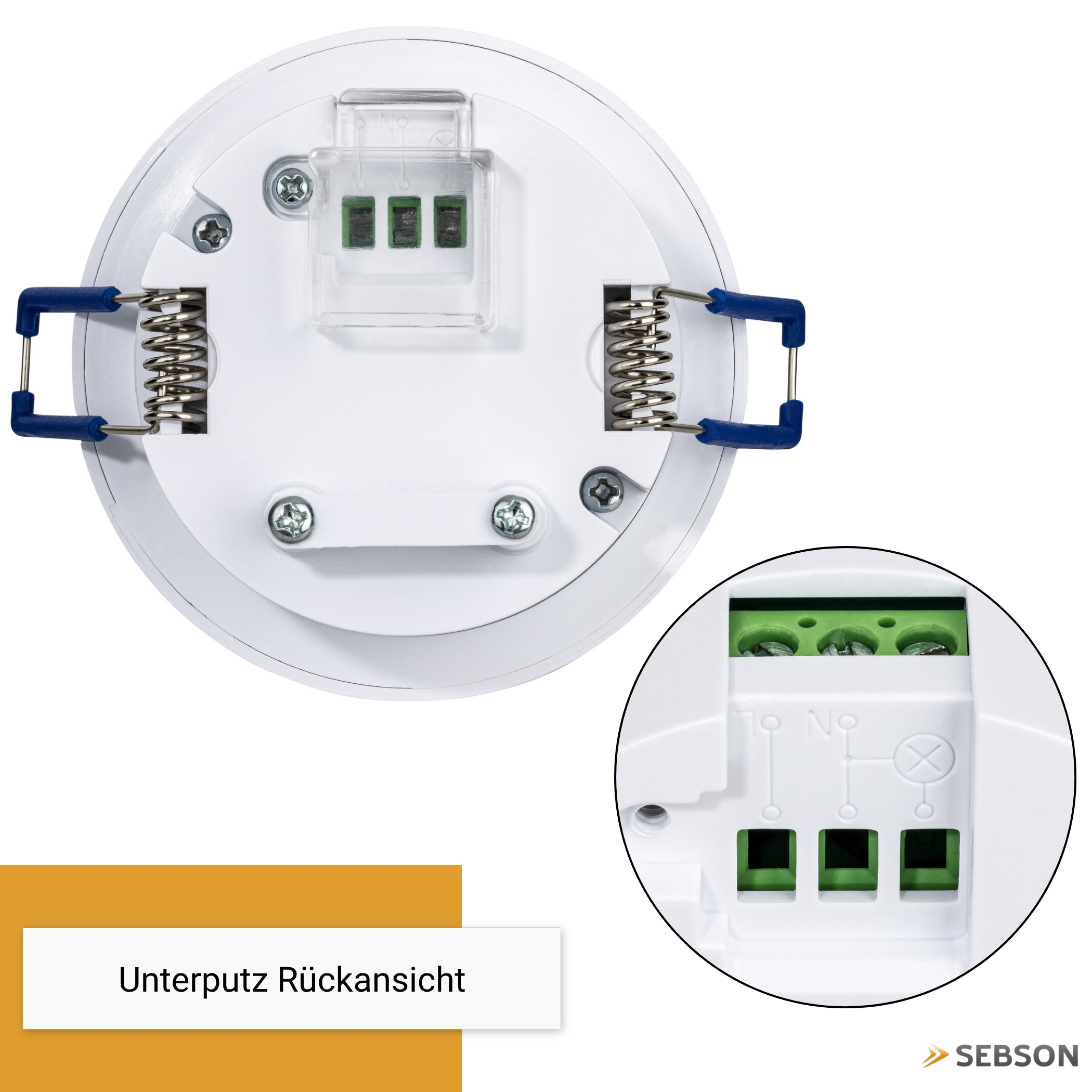

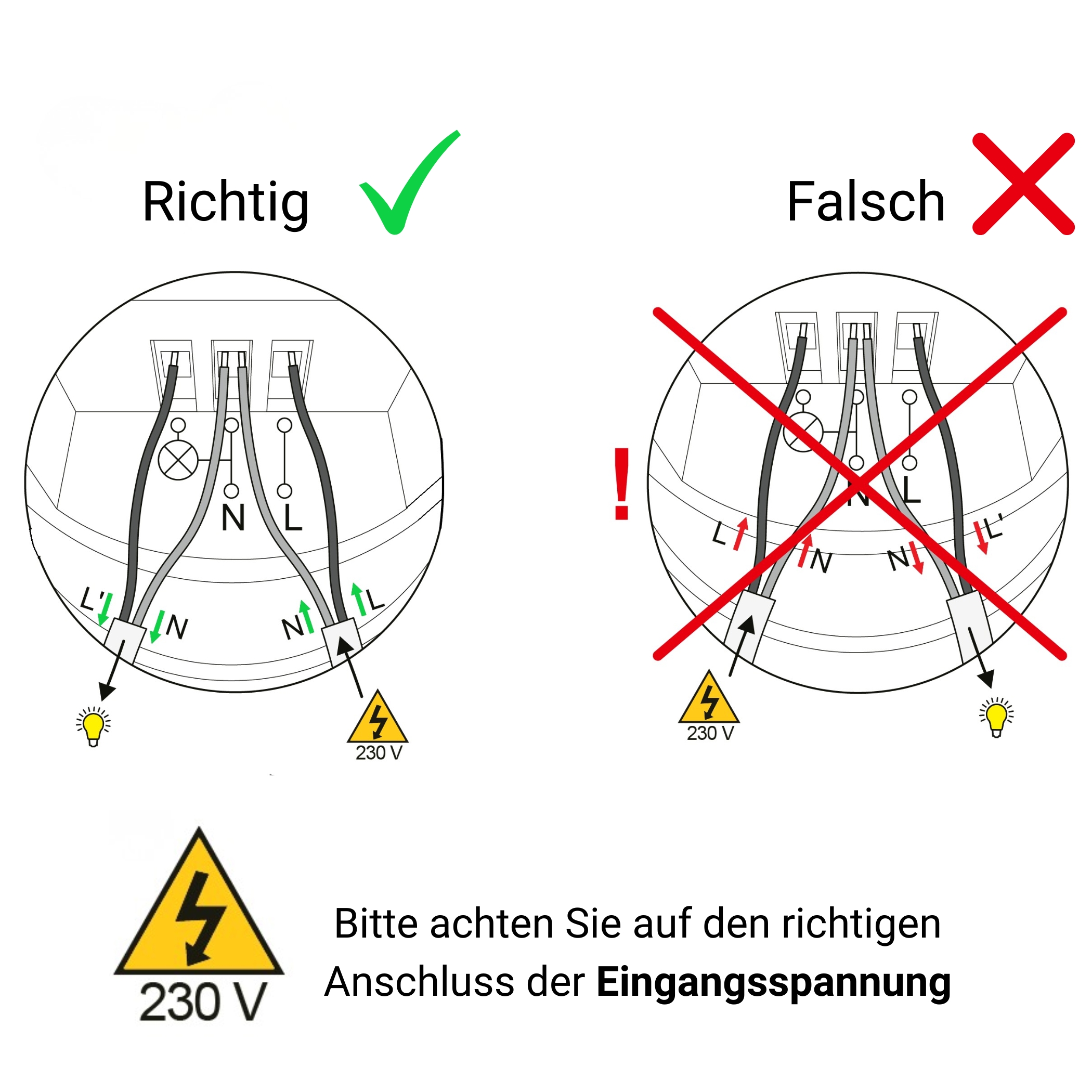

| Installation: | 3-wire |
| Switch type: | Relay |
| Max. load: | max. 1,200W incandescent lamps max. 600W LED lamps and energy-saving lamps |
| Standby consumption: | 0.5W |
| Detection speed: | 0.6-1.5m/s |
| Detection range: | 8m (<24°C) / 360° |
| Ambient light level: | 3-2,000LUX |
| Protection rating: | IP20 |
| Switch-off delay: | min. 10s +/-3s - max. 15min +/-2min |
| Ambient temperature: | -20°C to +40°C |
| Humidity: | <93% |

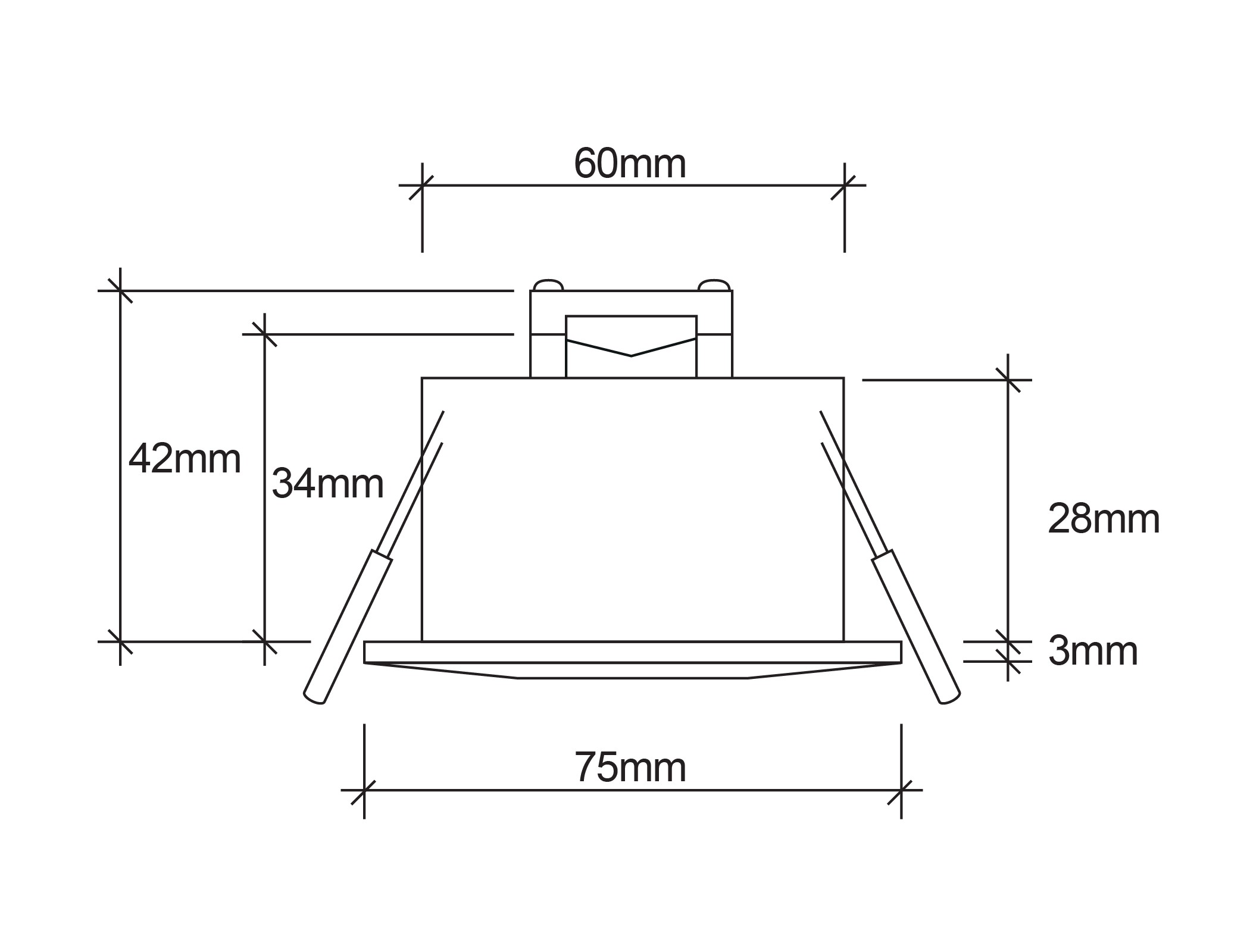

| Dimensions: | Ø75x46mm |
| Cut-out size: | Ø63-66mm |
| Housing material: | Plastic |
| Colour: | White, Black, Silver |
Installation and Operating Instructions PDF

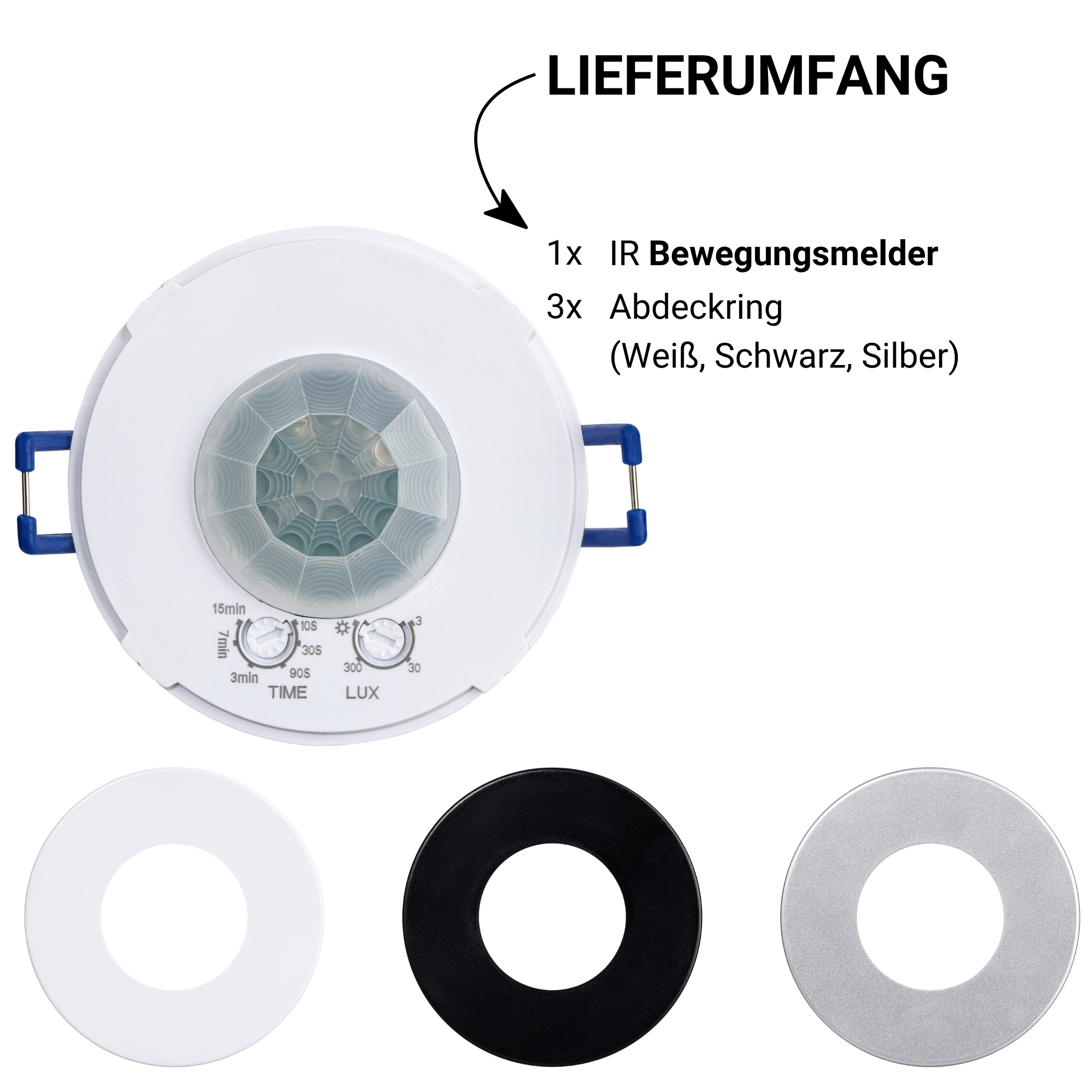

Package Contents:
- 1 x SEBSON PIR Motion Sensor
- 3 x Cover Ring (White, Black, Silver)
| Technical characteristic | Value |
|---|---|
| Item ID | 5932 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 159 g |
| Net weight | 87 g |
| Dimensions | 115×90×80mm |
