Flush-mounted, infrared, range 8m/360°, max. 1200/600W, IP20, 3-wire
graduated prices:
| Minimum quantity: 3 | EUR 12.99 |
EUR 13.99
Content
1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9673d9361f71ff8e8a791f9e0193f146");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9673d9361f71ff8e8a791f9e0193f146");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('692675673722e', 'paypal', 'pay', 'rect', 'blue');
});
} else {
renderPayPalButtons('692675673722e', 'paypal', 'pay', 'rect', 'blue');
}
Ready for shipment, delivery time 2 days
Item number IR_ES_HA
Safely
shopping
shopping
Free Return
from 40 €
from 40 €
Free Support
0231 2821758
0231 2821758

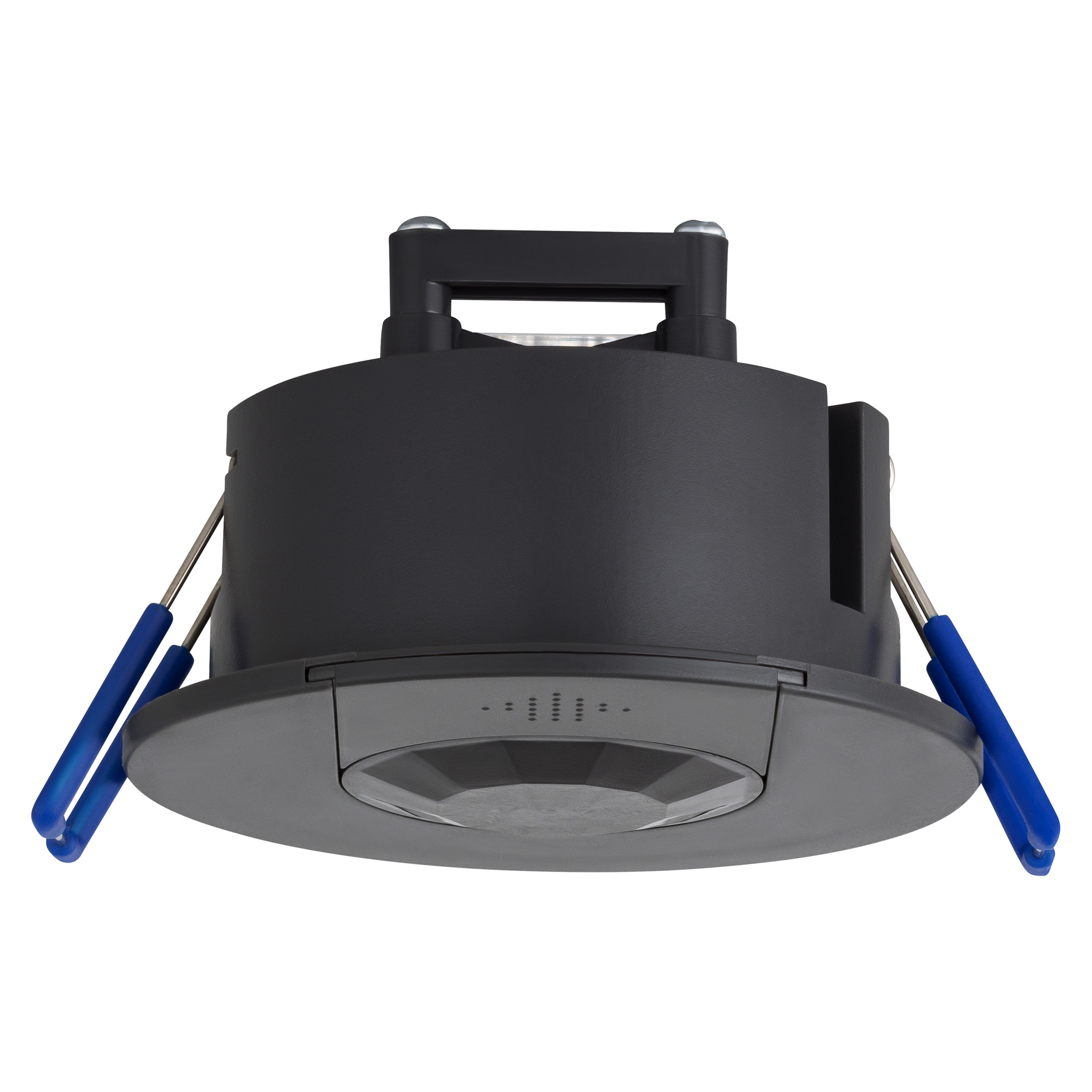

Flush-mounted IR motion detector
This motion detector with infrared sensor detects movements of people and large animals in a detection range of up to 8 m with a detection angle of 360° and switches on the lighting. The built-in motion detector with infrared sensor is LED-compatible. The maximum power consumption is 600 W for LED lighting and other energy-saving lamps.
Prgrammable

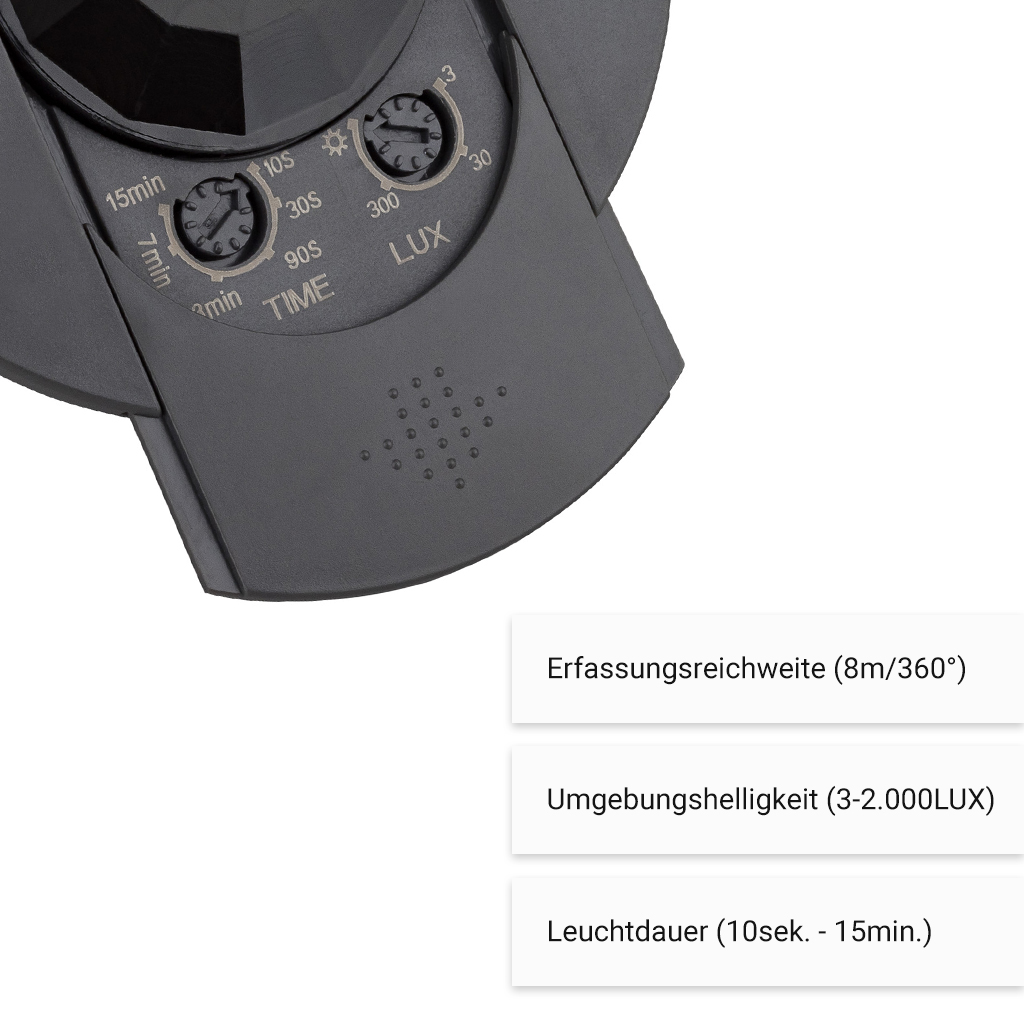

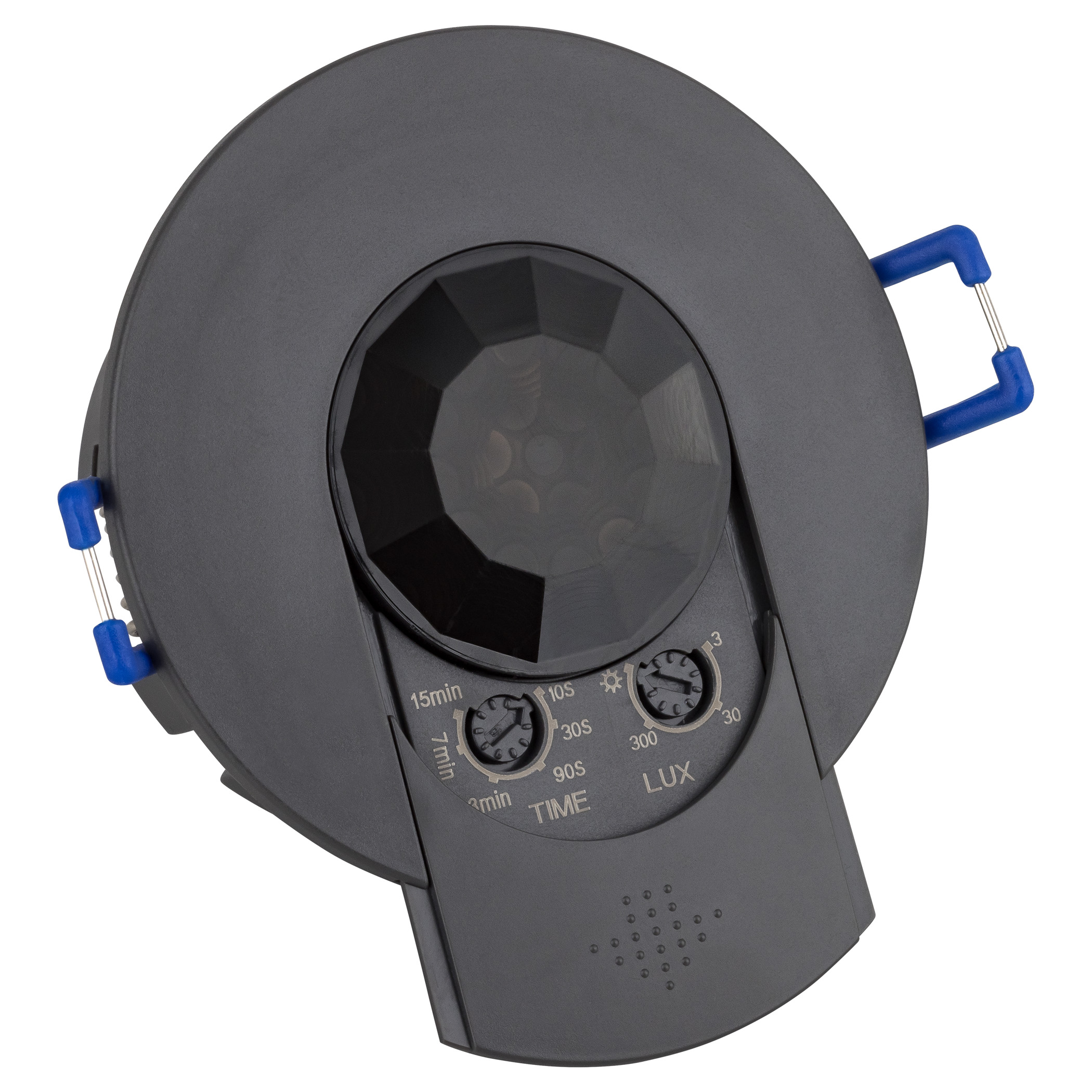

The switch-on duration and switch-on sensitivity can be programmed as desired at any time. The controls are located behind a cap directly next to the sensor, so that the circuit can be adjusted even after installation.
- Switch-on time: After an adjustable time of approx. 10 seconds to 15 minutes, the motion detector switches the lighting off again if no more movement is detected.
- Ambient brightness: A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
What range does the motion detector have?

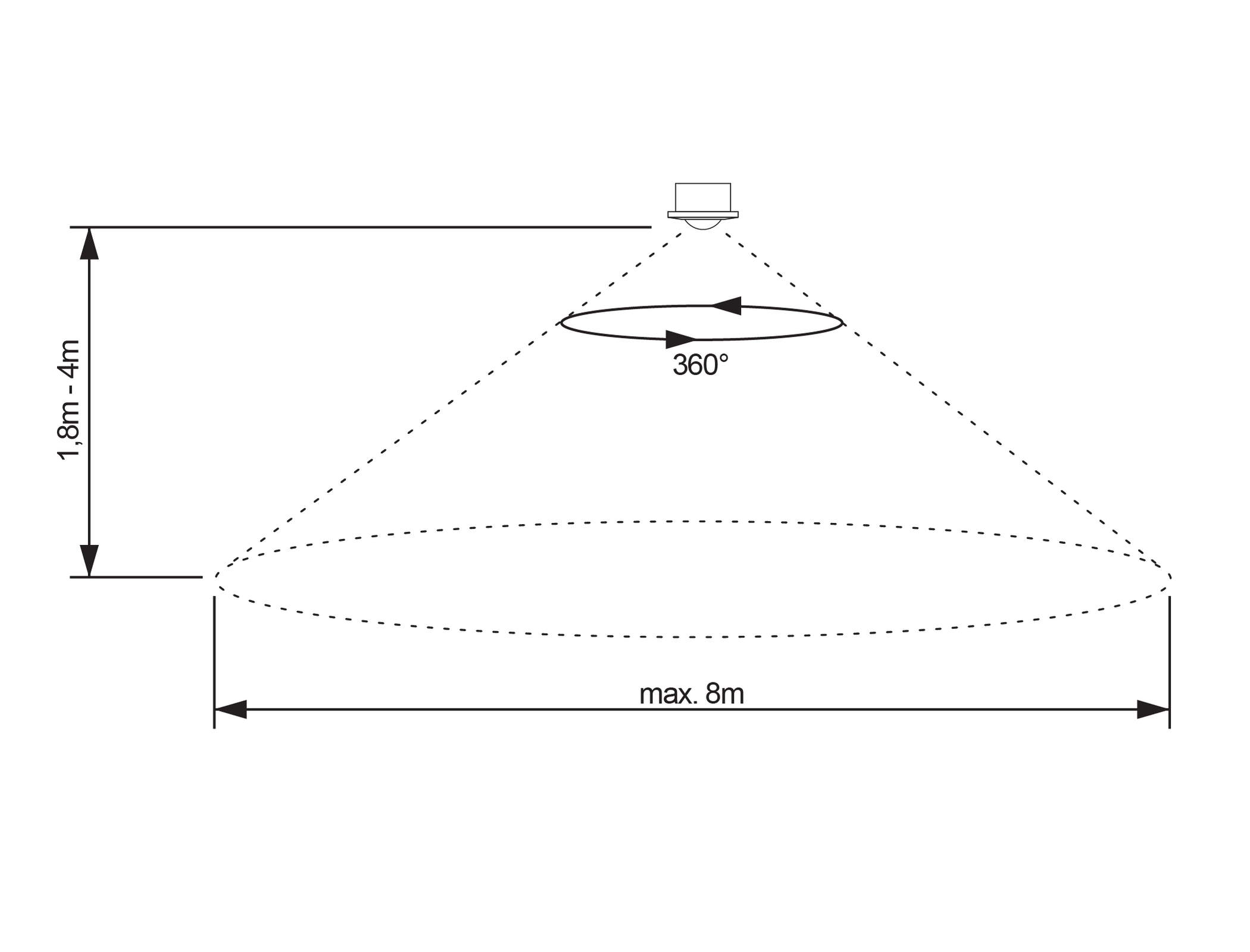

The detection range is up to 8m with a detection angle of 360° and a mounting height of 1.8-4m.
Where can I use the motion detector?

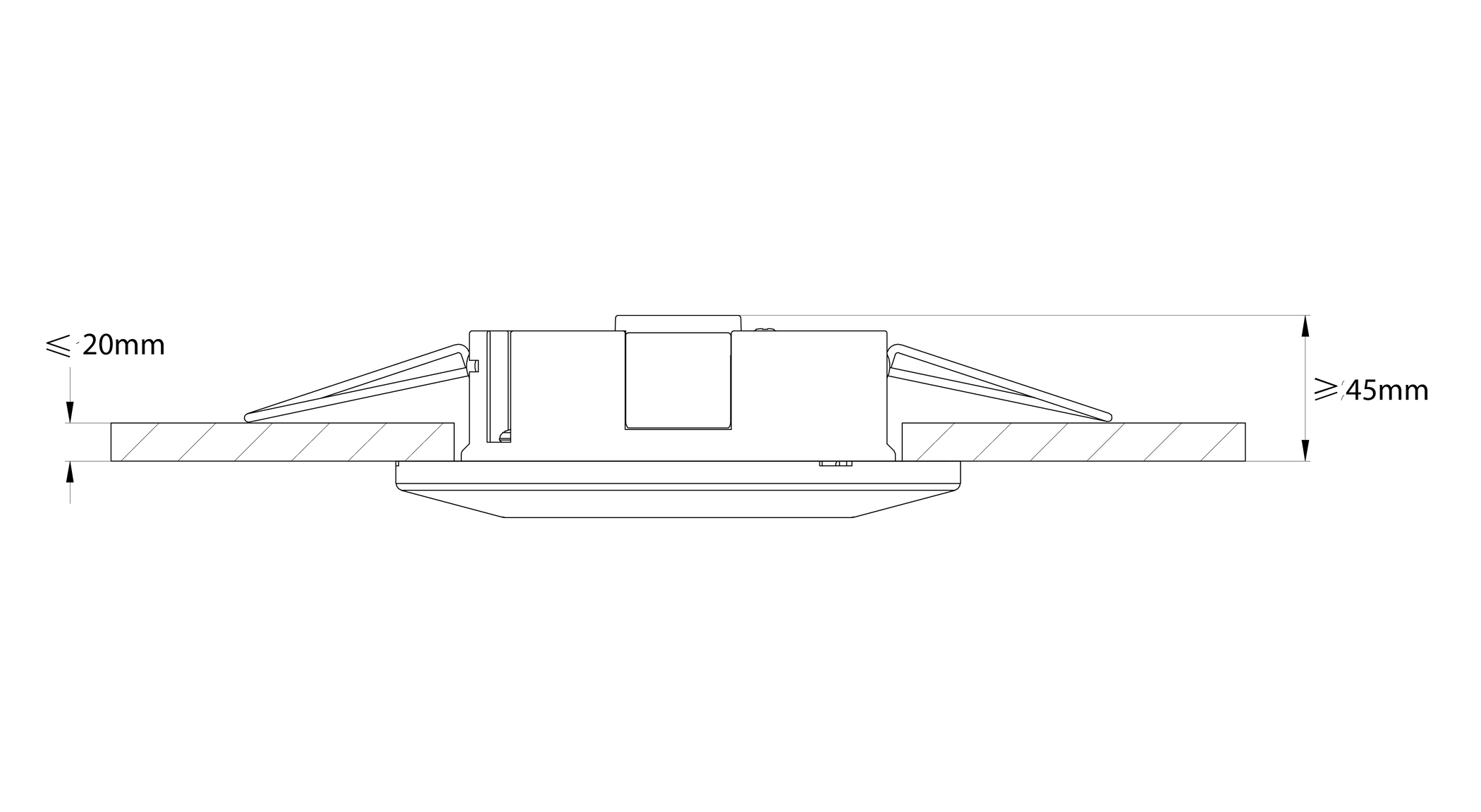

Thanks to its flat design, this built-in motion detector fits almost seamlessly into the ceiling. Suitable for flush-mounted cavity ceilings with an installation hole diameter of 63-68mm in indoor areas.

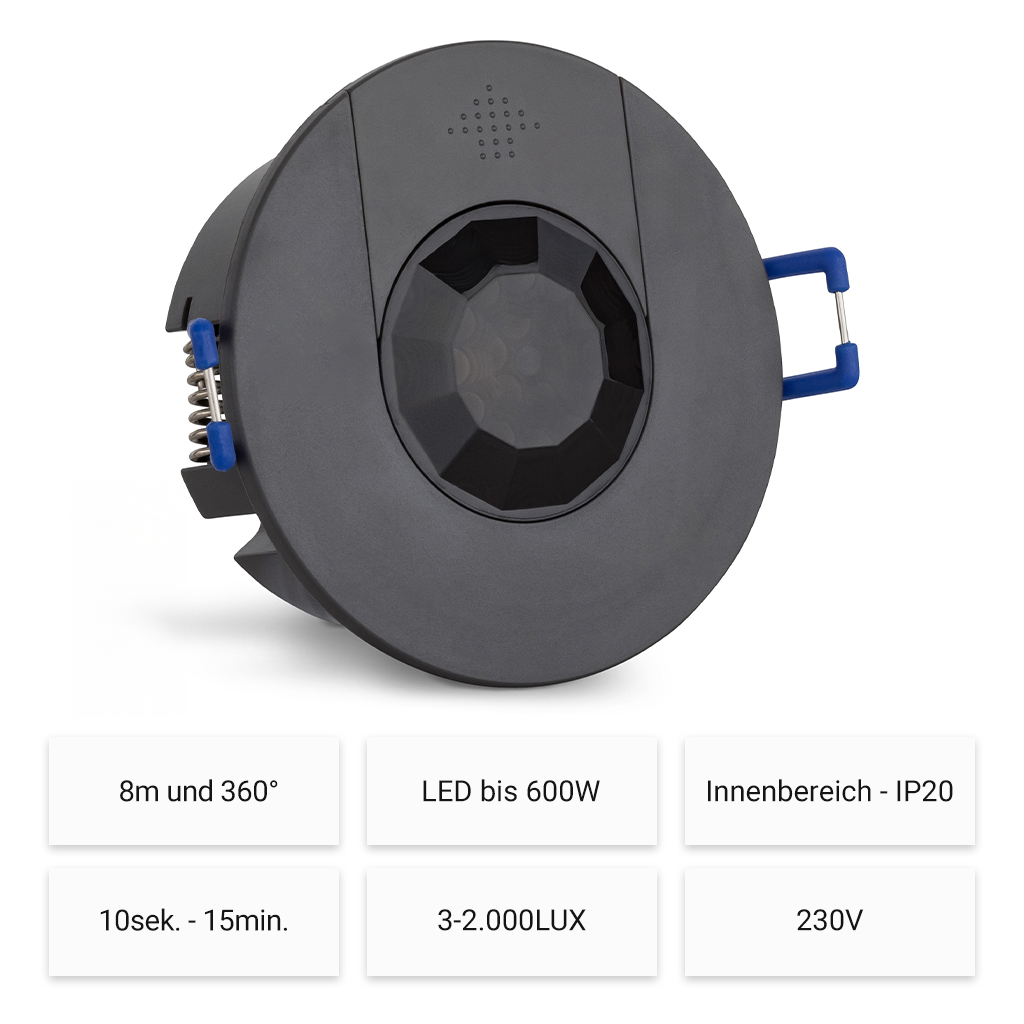

Advantages
- Programmable (ambient brightness, switch-on duration)
- LED suitable for up to 600W
- Range 8m
- Detection angle 360°
Product features
| Operating voltage: | 220-240V AC 50Hz |

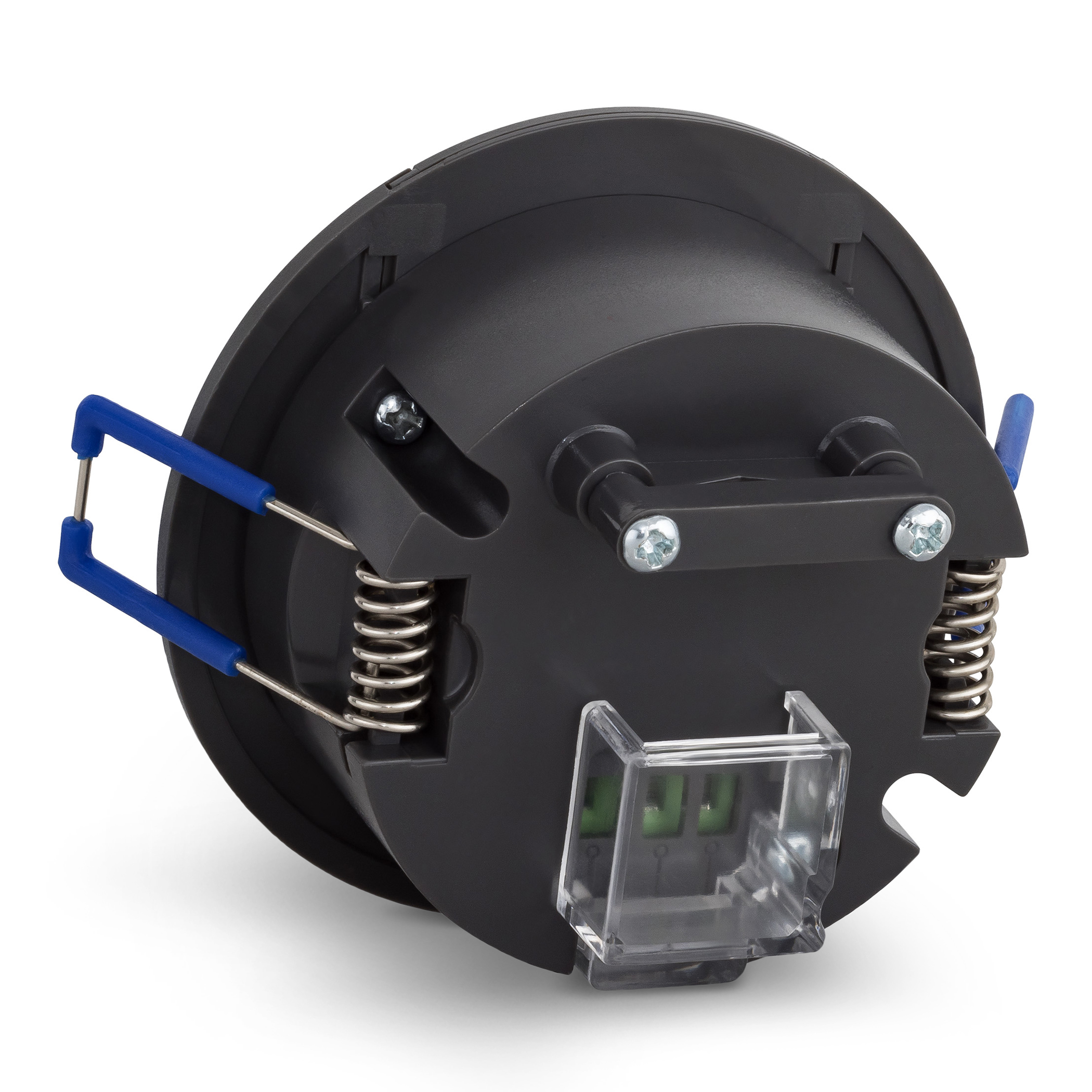

| Installation: | 3-wire |
| Switch type: | Relay |
| Max. Power consumption: | max. 1,200W with usual lamps max. 600W with LED and energy saving lamps |
| Power consumption on standby: | 0.5W |
| Detection speed: | 0.6-1.5m/s |
| Detection range: | 8m (<24°C)/360° |
| Ambient brightness: | 3-2,000LUX |
| Protection: | IP20 |
| Switch-off delay: | min. 10s +/-3s - max. 15min +/-2min |
| Ambient temperature: | -20° to +40°C |
| Humidity: | < 93% |

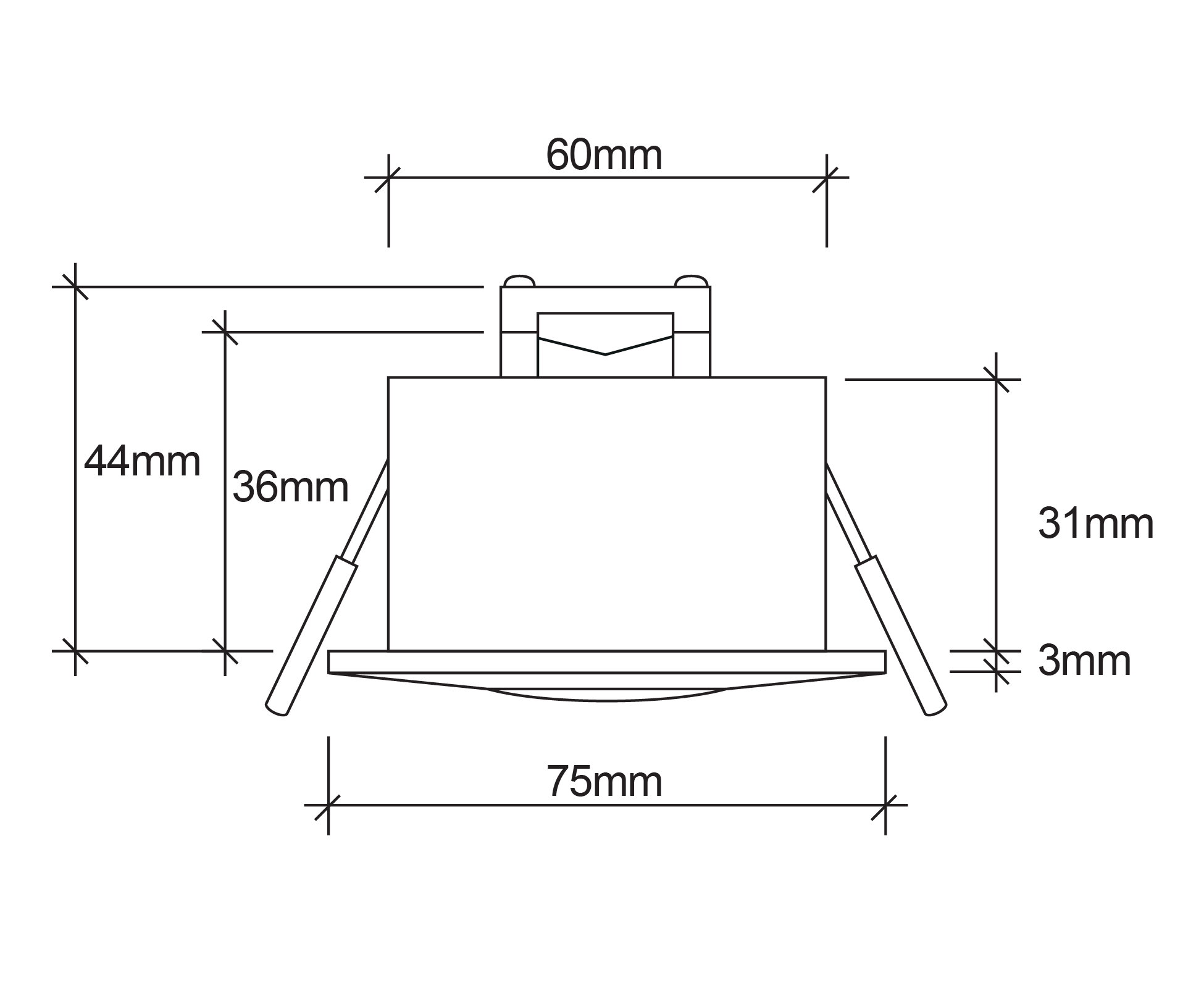

| Dimensions: | Ø75x44mm |
| Mounting hole: | Ø63-68mm |
| Housing material: | Plastic |
| Color: | Anthracite |
Assembly and operating instructions as PDF
Scope of delivery:
- 1 x SEBSON IR motion detector
| Technical characteristic | Value |
|---|---|
| Item ID | 5736 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 70 g |
| Net weight | 70 g |
