Flush-mounted, infrared, range 10m x 30m, max. 2000/1000W, IP20, 3-wire
graduated prices:
| Minimum quantity: 3 | EUR 20.99 |
EUR 21.99
Content
1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "22640dbe09b69b03989003b263960d92");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/70/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "22640dbe09b69b03989003b263960d92");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('692670c4dd43d', 'paypal', 'pay', 'rect', 'blue');
});
} else {
renderPayPalButtons('692670c4dd43d', 'paypal', 'pay', 'rect', 'blue');
}
Ready for shipment, delivery time 2 days
Item number IR_ES_I
Safely
shopping
shopping
Free Return
from 40 €
from 40 €
Free Support
0231 2821758
0231 2821758

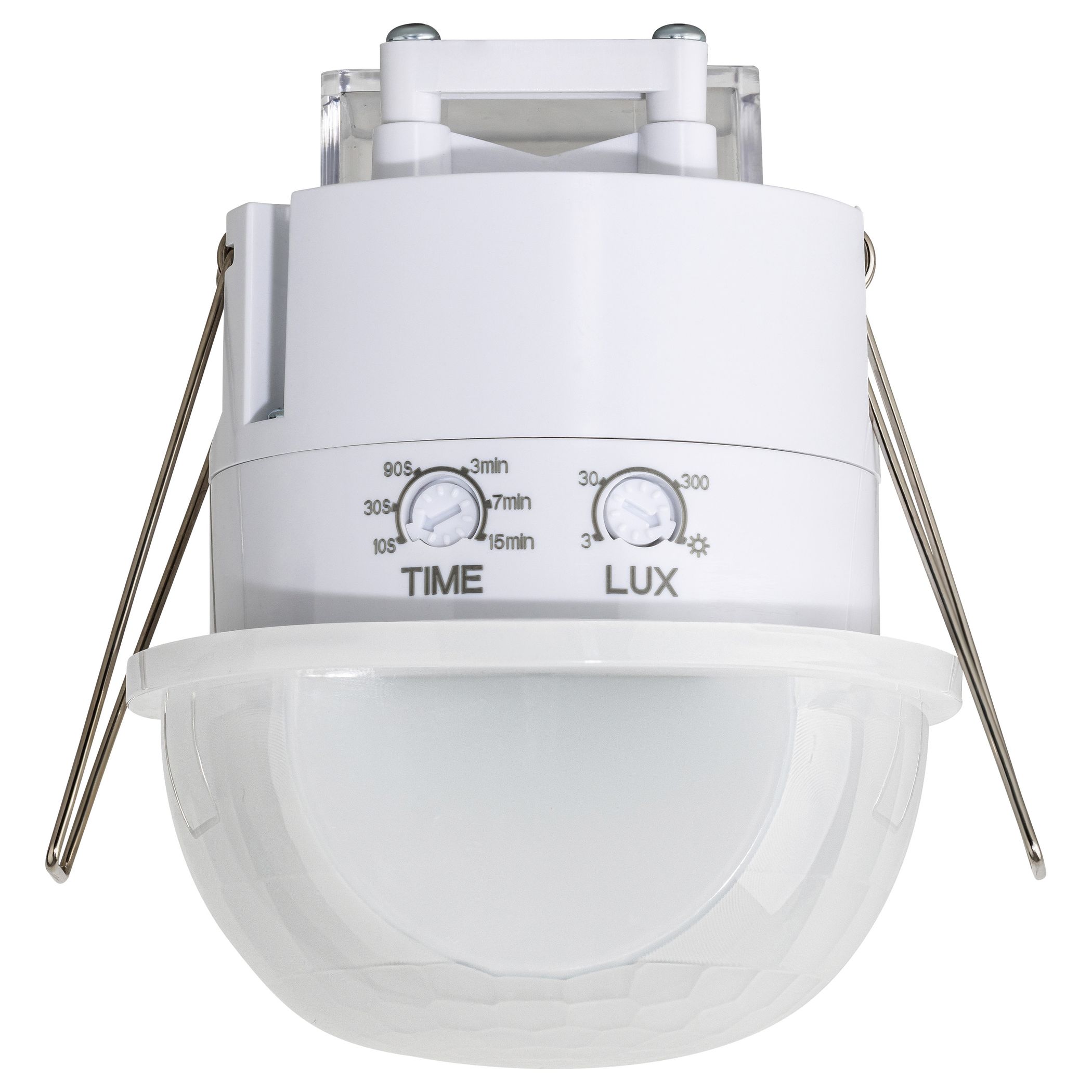

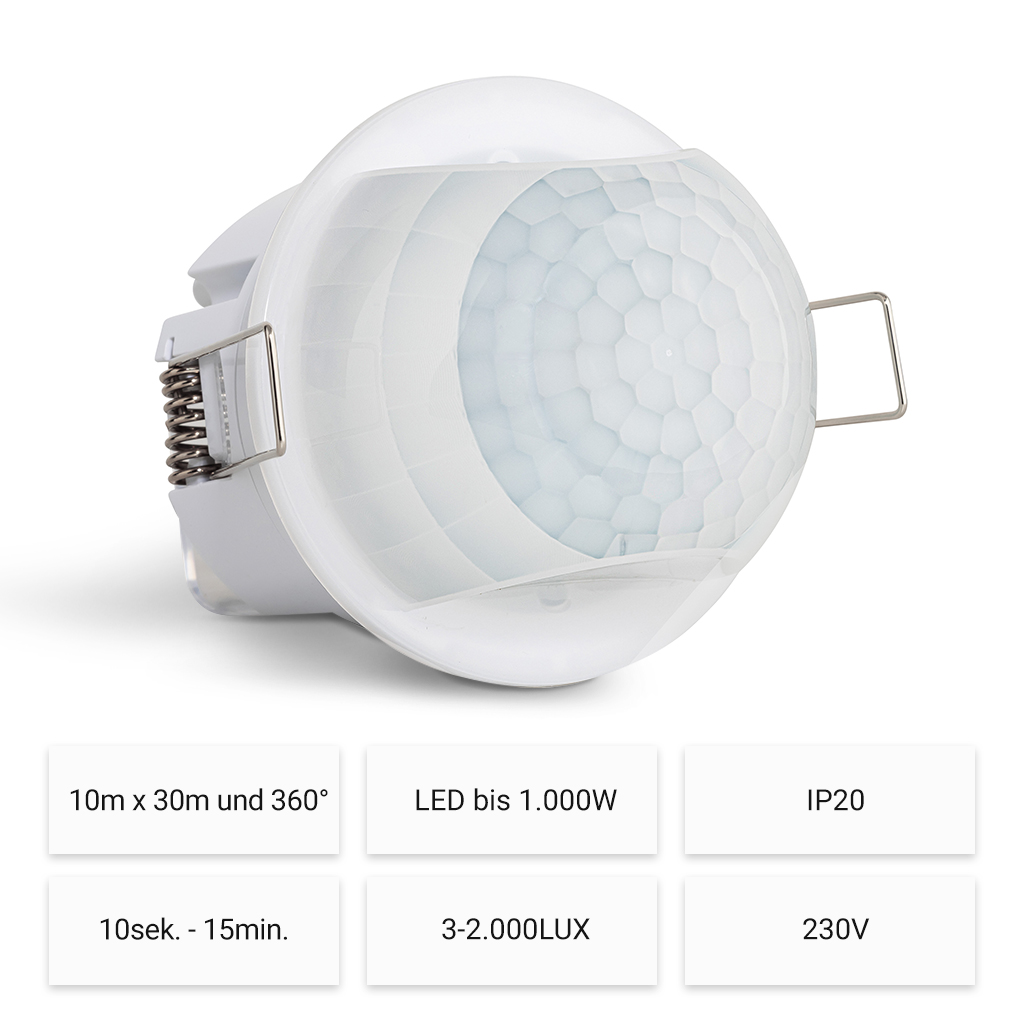

Flush-mounted IR motion detector
This motion detector with IR sensor recognises movements of people and large animals. The lighting switches on within a detection range of 10m x 30m with a detection angle of 360° (in open space) and switches on the lighting. After an adjustable time of approx. 10 seconds to 15 minutes, the motion detector switches the lighting off again if no more movement is detected. A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
The built-in motion detector with infrared sensor is suitable for LEDs. The maximum power consumption is 1,000W with LED lighting and other energy-saving lamps.

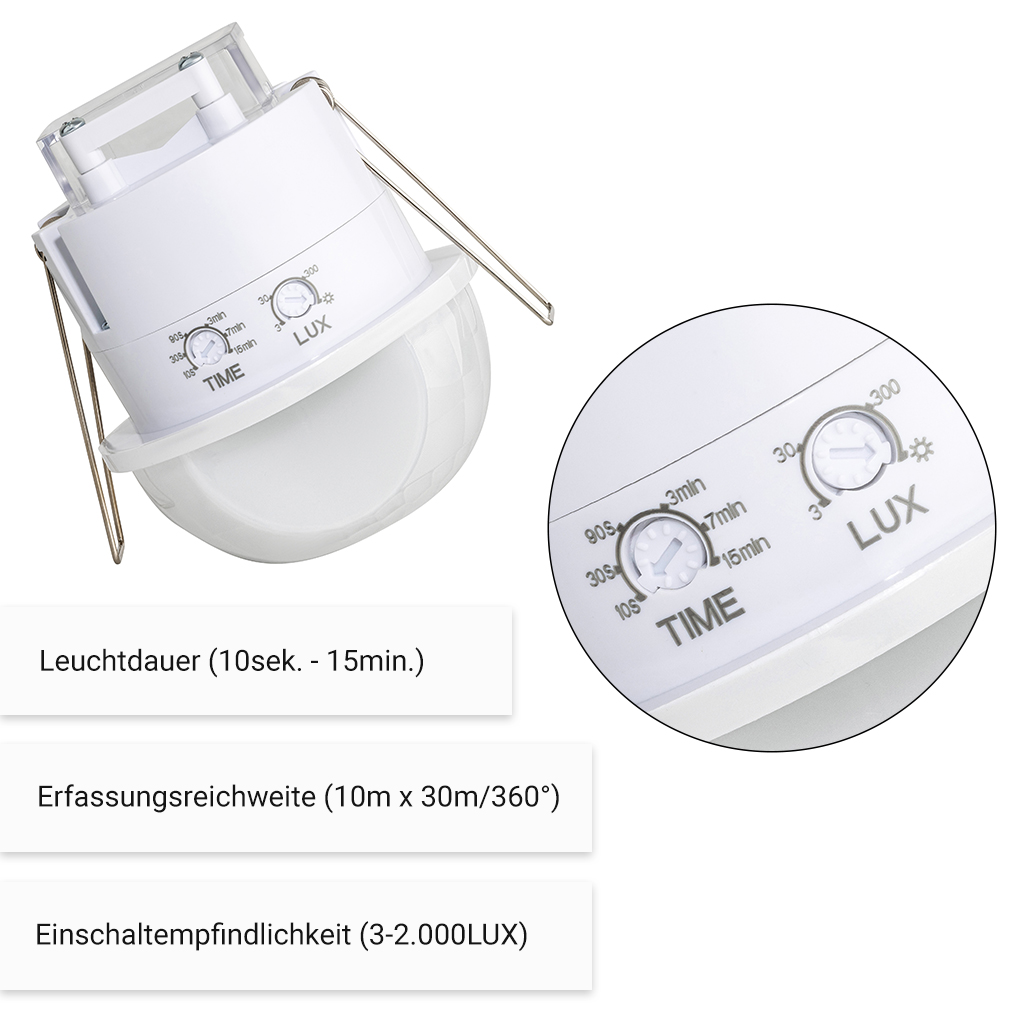

Programmable
- Switch-on time: After an adjustable time of approx. 10 seconds to 15 minutes, the motion detector switches the lighting off again if no more movement is detected.
- Ambient brightness: A controller can be used to regulate the switch-on sensitivity of this device depending on the ambient brightness (in the range between 3 and 2,000 LUX).
What range does the motion detector have?

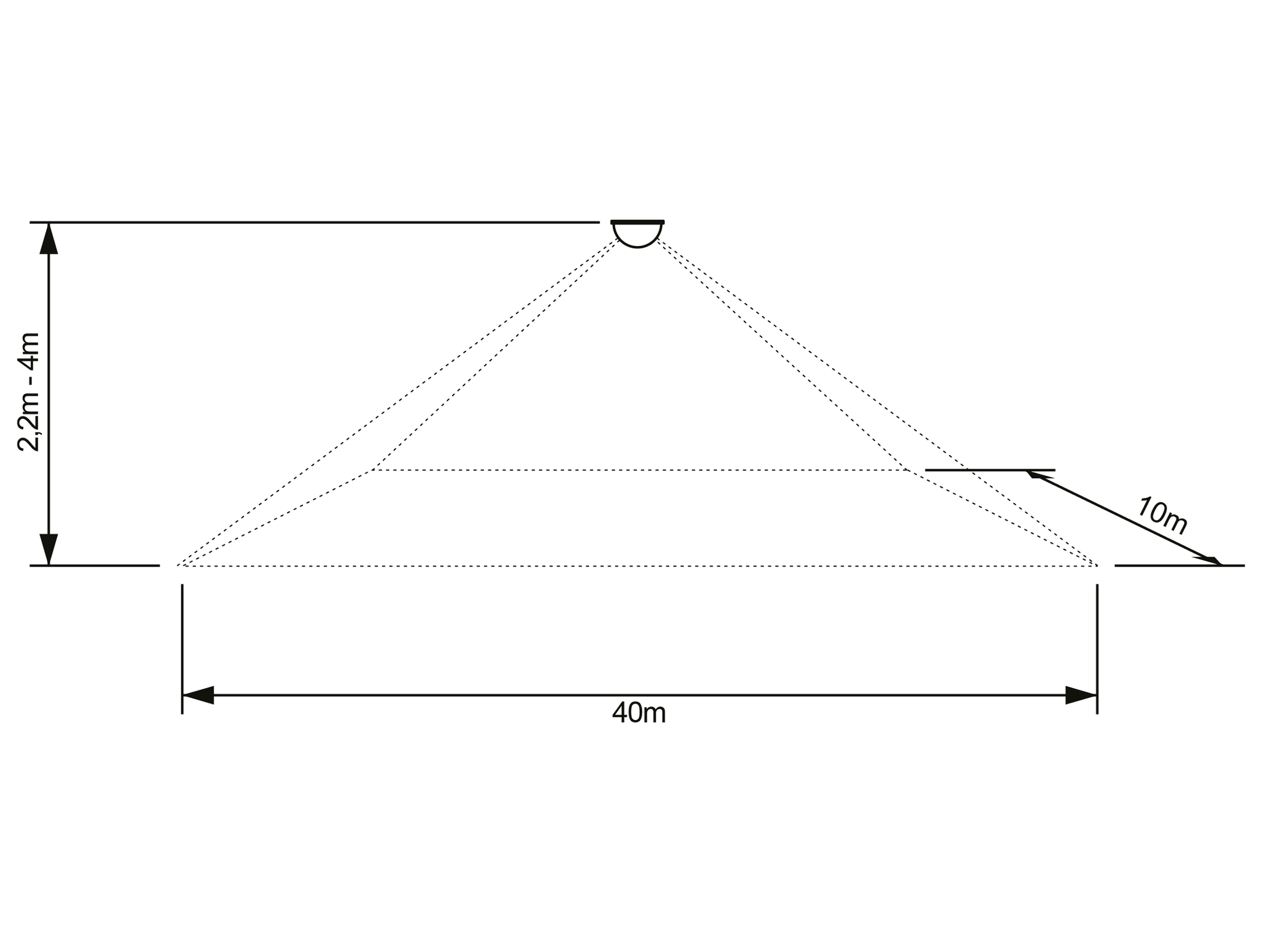

The detection range is up to 10m x 30m with a detection angle of 360° and an installation height of 2.2–4m.
Where can I use the motion detector?

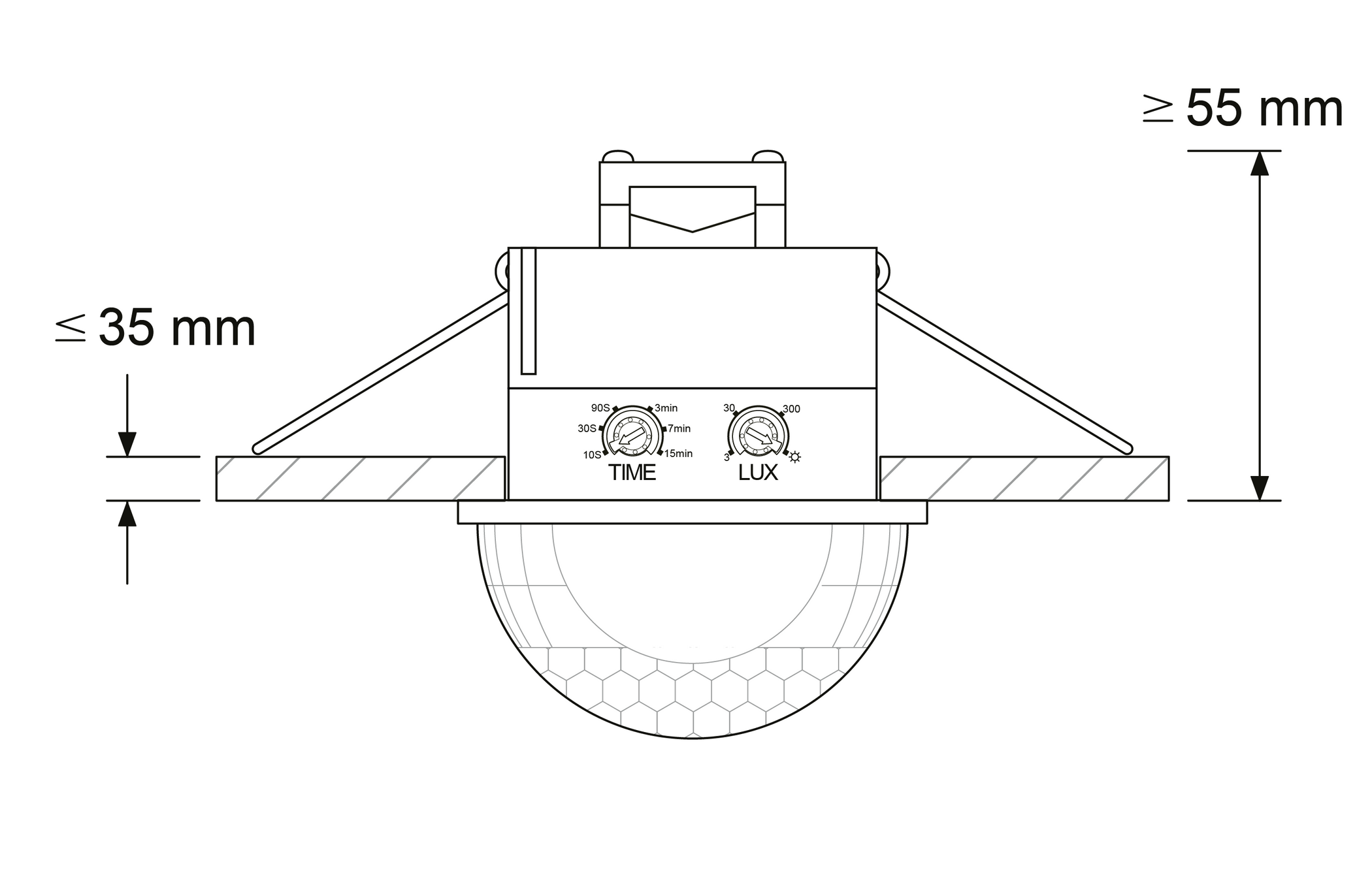

This built-in motion detector is suitable for flush-mounted cavity ceilings in indoor areas (IP20) with an installation hole diameter of 63–68mm..
Advantages
- Programmable (ambient brightness, switch-on duration)
- LED suitable for up to 1,000W
- Range up to 30m
Product features
| Operating voltage: | 220-240V AC 50Hz |

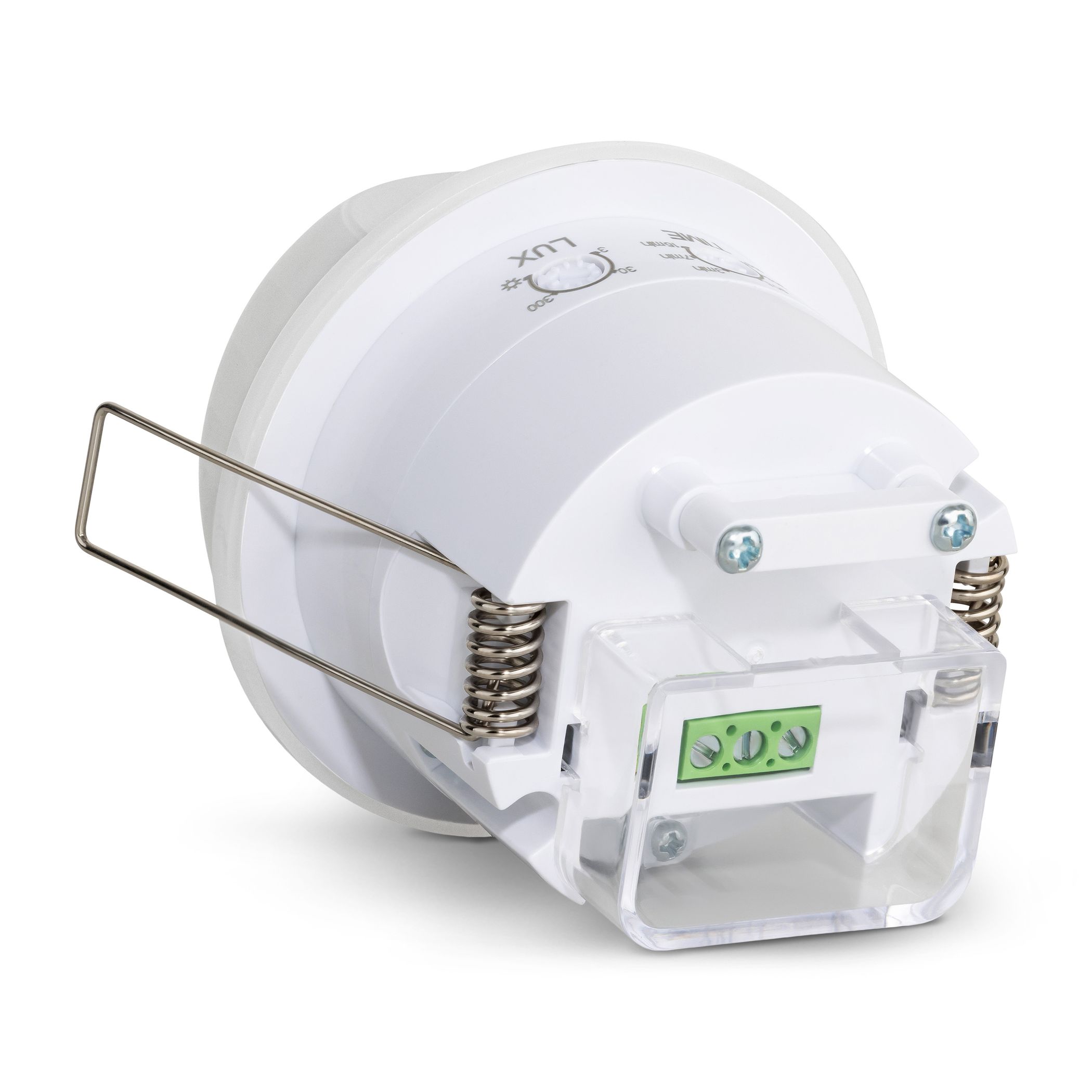

| Installation: | 3-wire |
| Switch type: | Relay |
| Max. Power consumption: | max. 2,000W with usual lamps max. 1,000W with LED and energy saving lamps |
| Power consumption on standby: | 0.5W |
| Detection speed: | 0.6-1.5m/s |
| Detection range: | Max. 10m x 30m (<24°C) |
| Ambient brightness: | 3-2,000LUX |
| Protection: | IP20 |
| Switch-off delay: | min. 10s +/-3s - max. 15min +/-2min |
| Ambient temperature: | -20° to +40°C |
| Humidity: | < 93% |

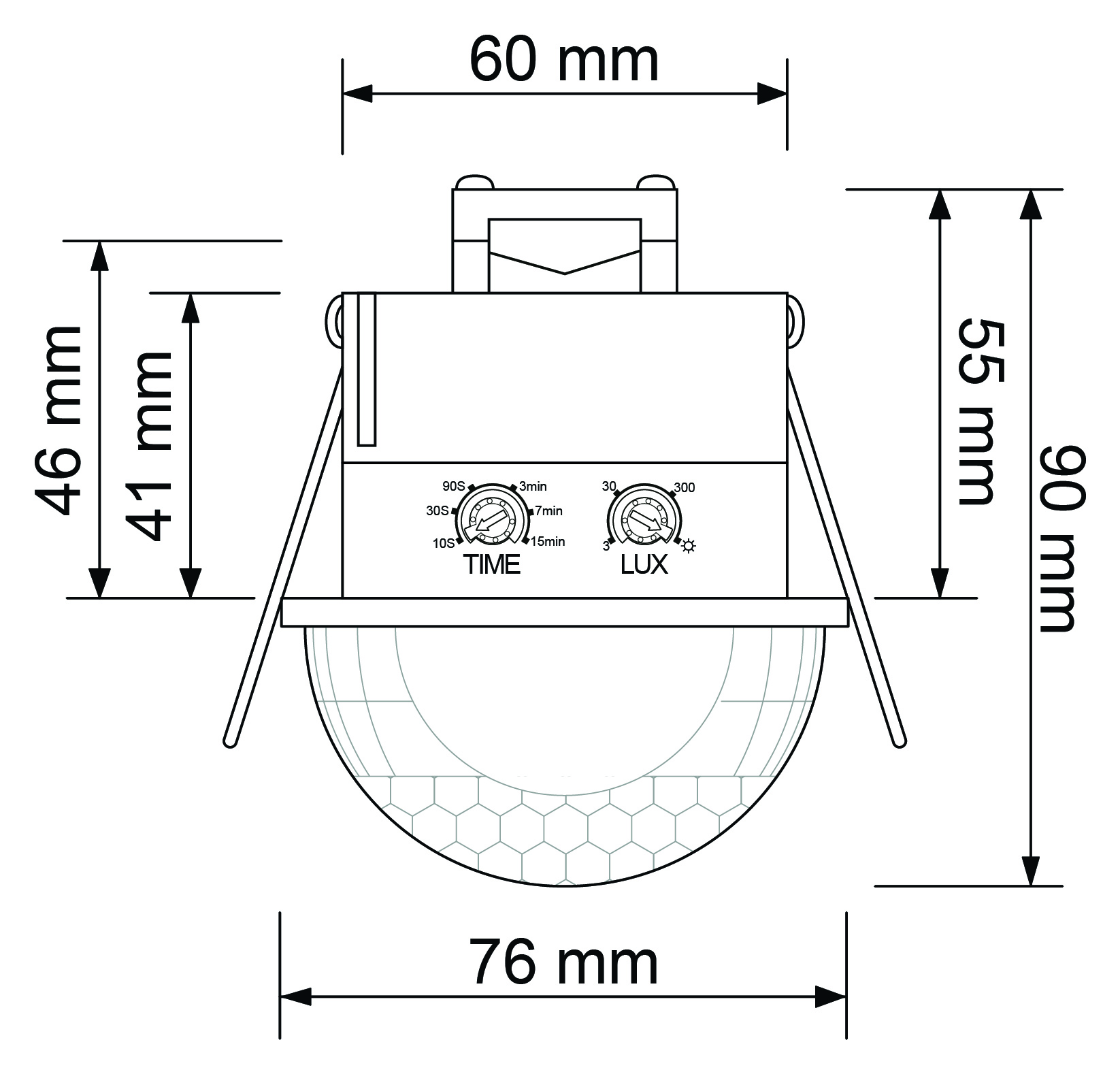

| Dimensions: | Ø76x90mm |
| Mounting hole: | Ø63-68mm |
| Housing material: | Plastic |
| Color: | White |
Assembly and operating instructions as PDF
Scope of delivery:
- 1 x SEBSON IR motion detector
| Technical characteristic | Value |
|---|---|
| Item ID | 5714 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 103 g |
| Net weight | 103 g |
