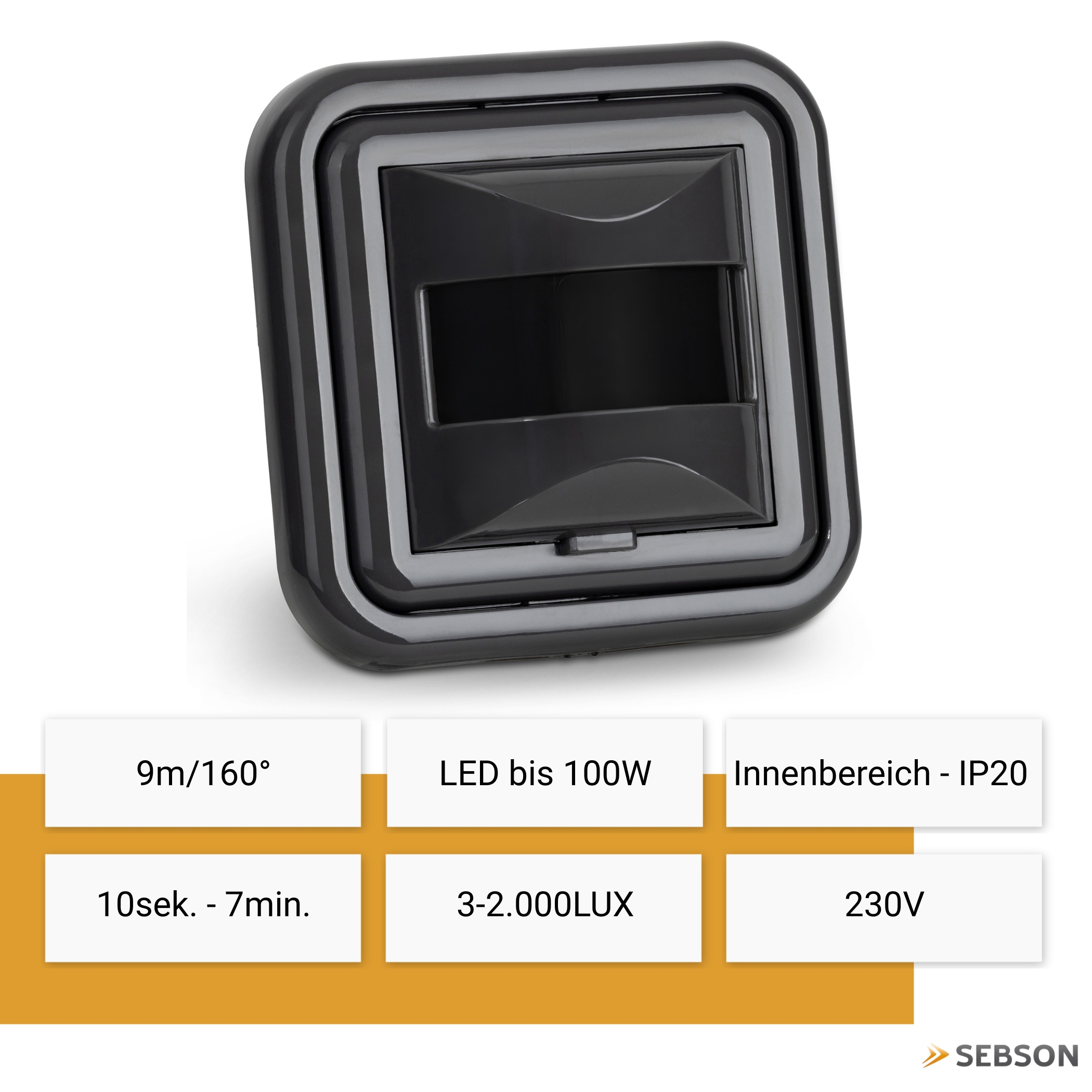

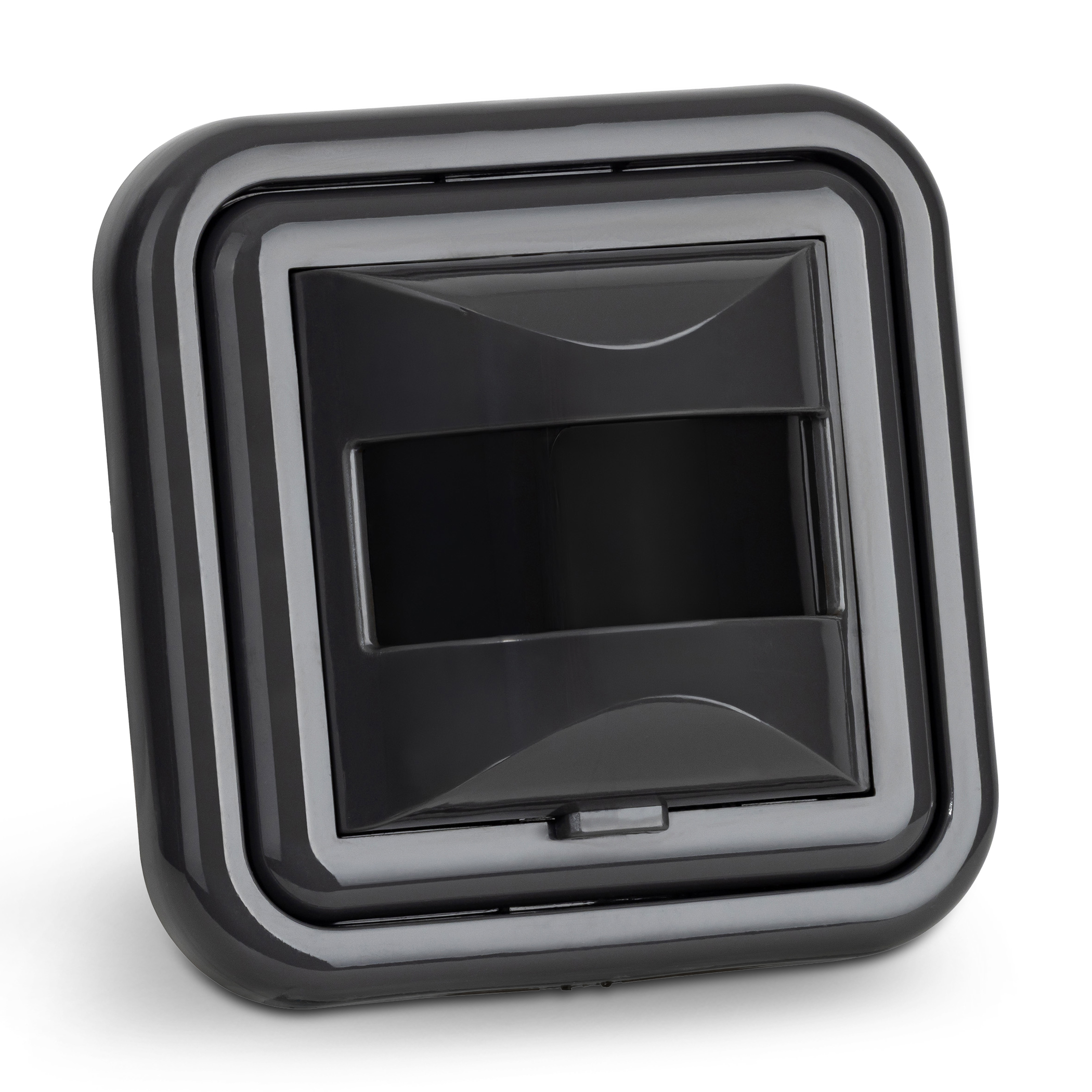

PIR Motion Sensor Switch with ON/OFF Function for Flush Mount Installation
This PIR motion sensor switch detects movement from people and large animals within a detection range of up to 9m and a detection angle of 160° in open areas and automatically switches connected lighting on. Thanks to the integrated switch, the lighting can be operated manually or controlled automatically via motion detection.
Flexible Switching Modes
This flush mount PIR motion sensor offers various operating modes. Using the integrated switch, you can choose between manual ON/OFF operation or automatic lighting control via motion detection.

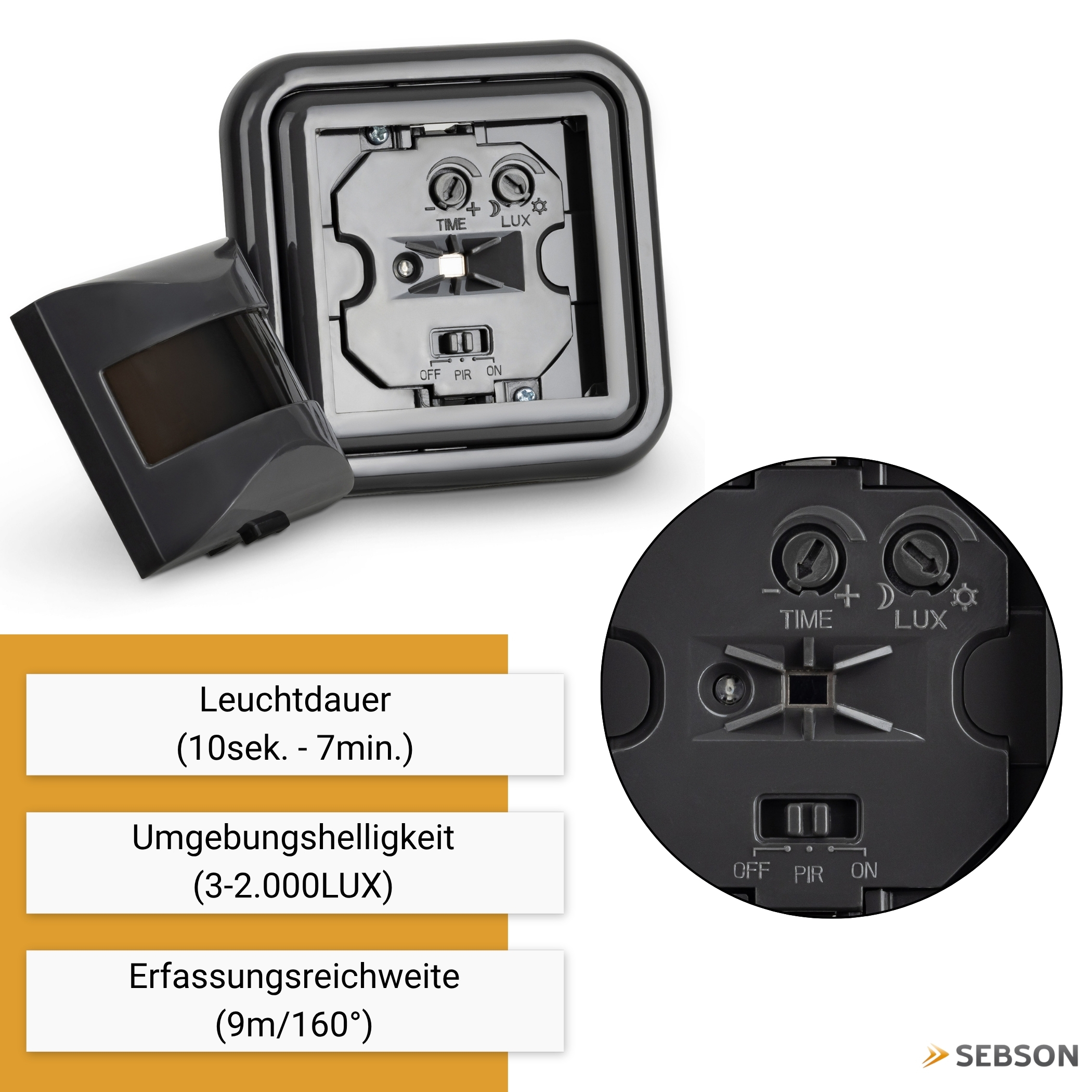

Adjustable Settings
The switch-off delay and light sensitivity can be individually adjusted at any time. The controls are located directly behind the front cover and allow quick and easy adjustment whenever required.
- Switch-off Delay: After an adjustable period of approximately 10 seconds to 7 minutes, the motion sensor switches the lighting off again if no further movement is detected.
- Ambient Light Level: A built-in control allows the sensor sensitivity to be adjusted according to the surrounding light level within a range of 3 to 2,000 LUX.

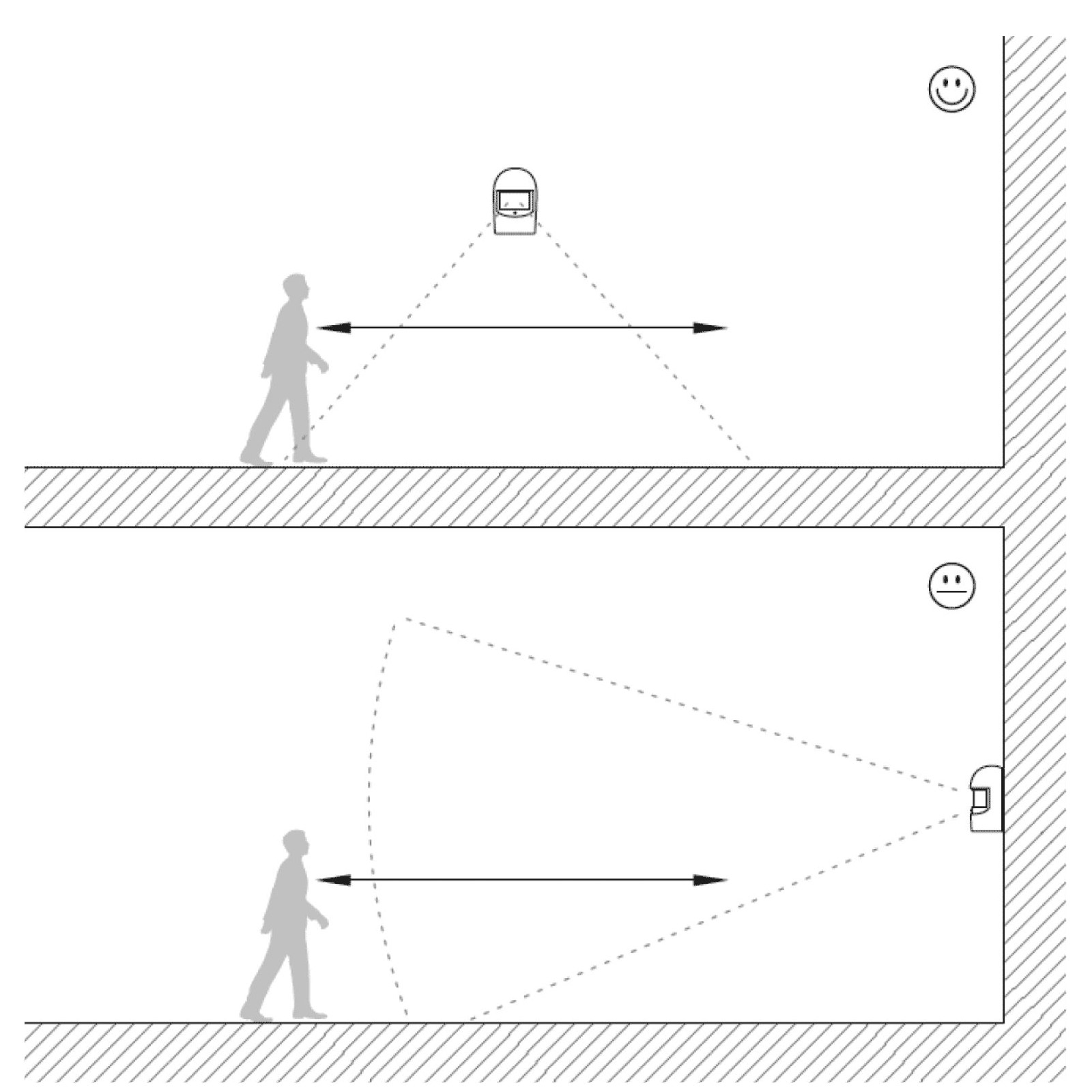

What Detection Range Does the Motion Sensor Have?

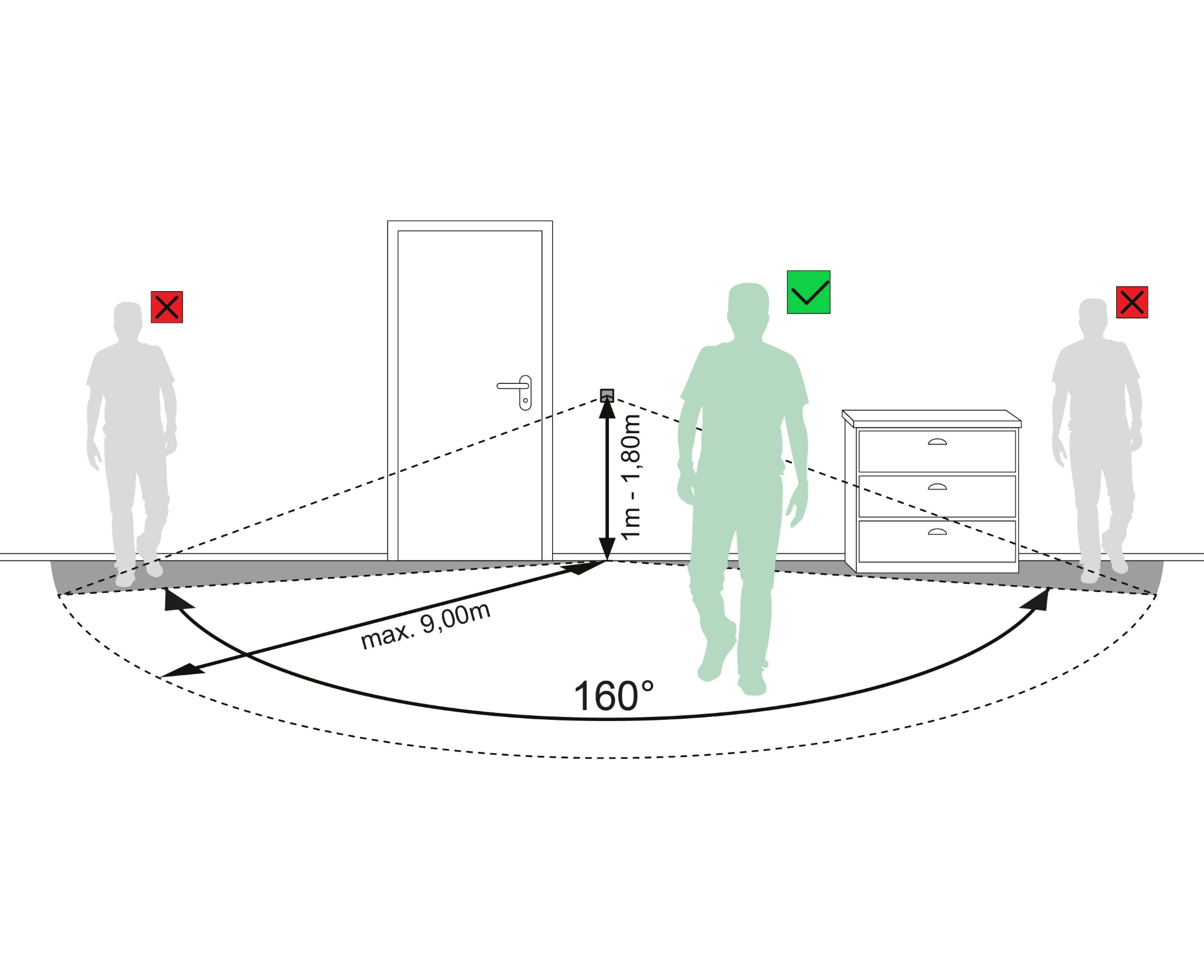

The motion detector provides a detection range of up to 9m with a detection angle of 160° and an installation height of 1m to 1.8m.
Where Can I Use This Motion Sensor?

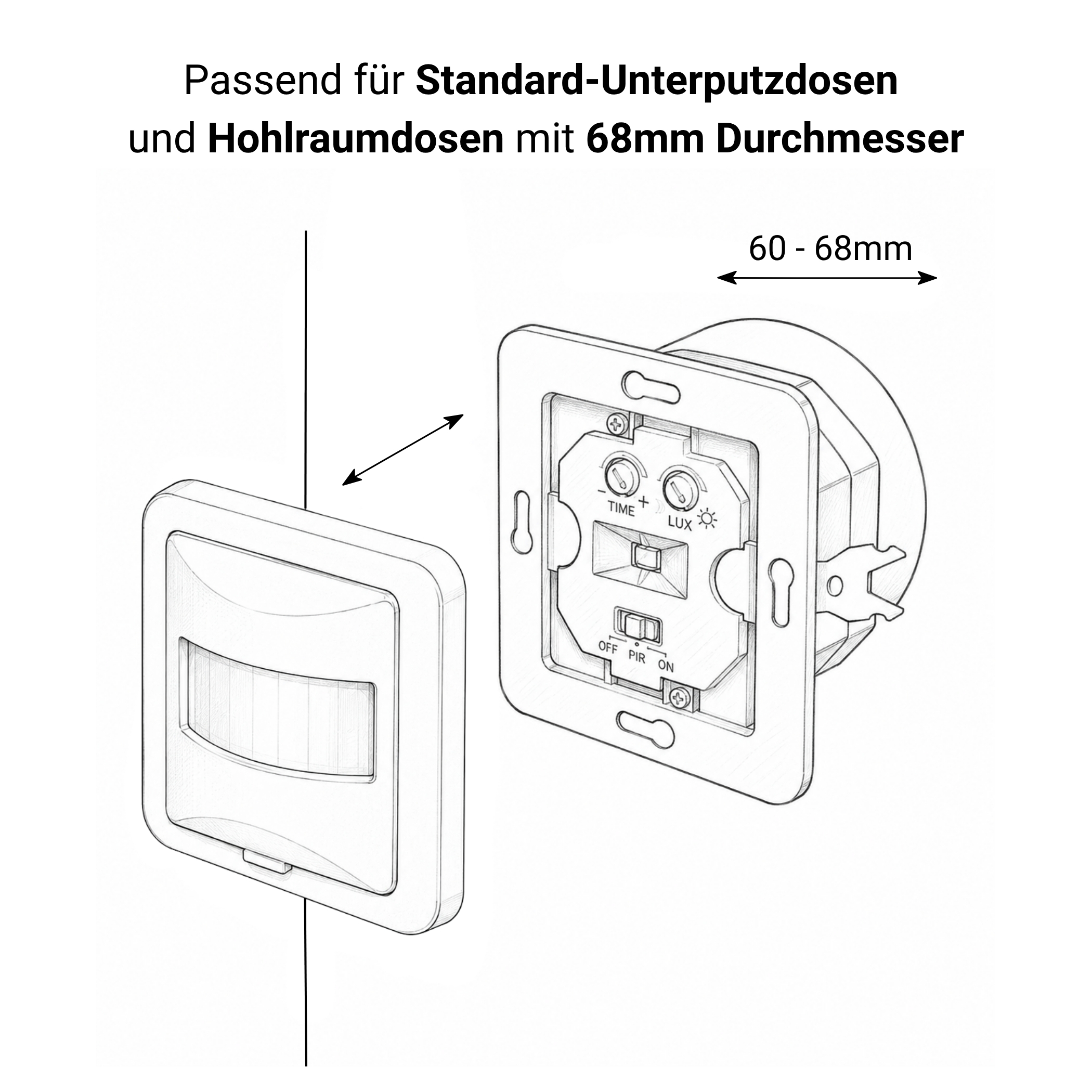

This in-wall motion sensor is suitable for installation in standard flush mounting boxes and cavity wall boxes with a diameter of 68mm. Thanks to the manual switching function, it is ideal for hallways, staircases, utility rooms, basements and other indoor areas where both automatic and manual lighting control are required.
Benefits
- 3 operating modes: ON, OFF or motion detection
- Adjustable settings (ambient light level and switch-off delay)
- Automatic lighting control
- Detection range up to 9m
- 160° detection angle
- Suitable for flush mounting and cavity wall boxes
- Easy installation
Technical Specifications
| Operating Voltage: | 220-240V AC 50/60Hz |

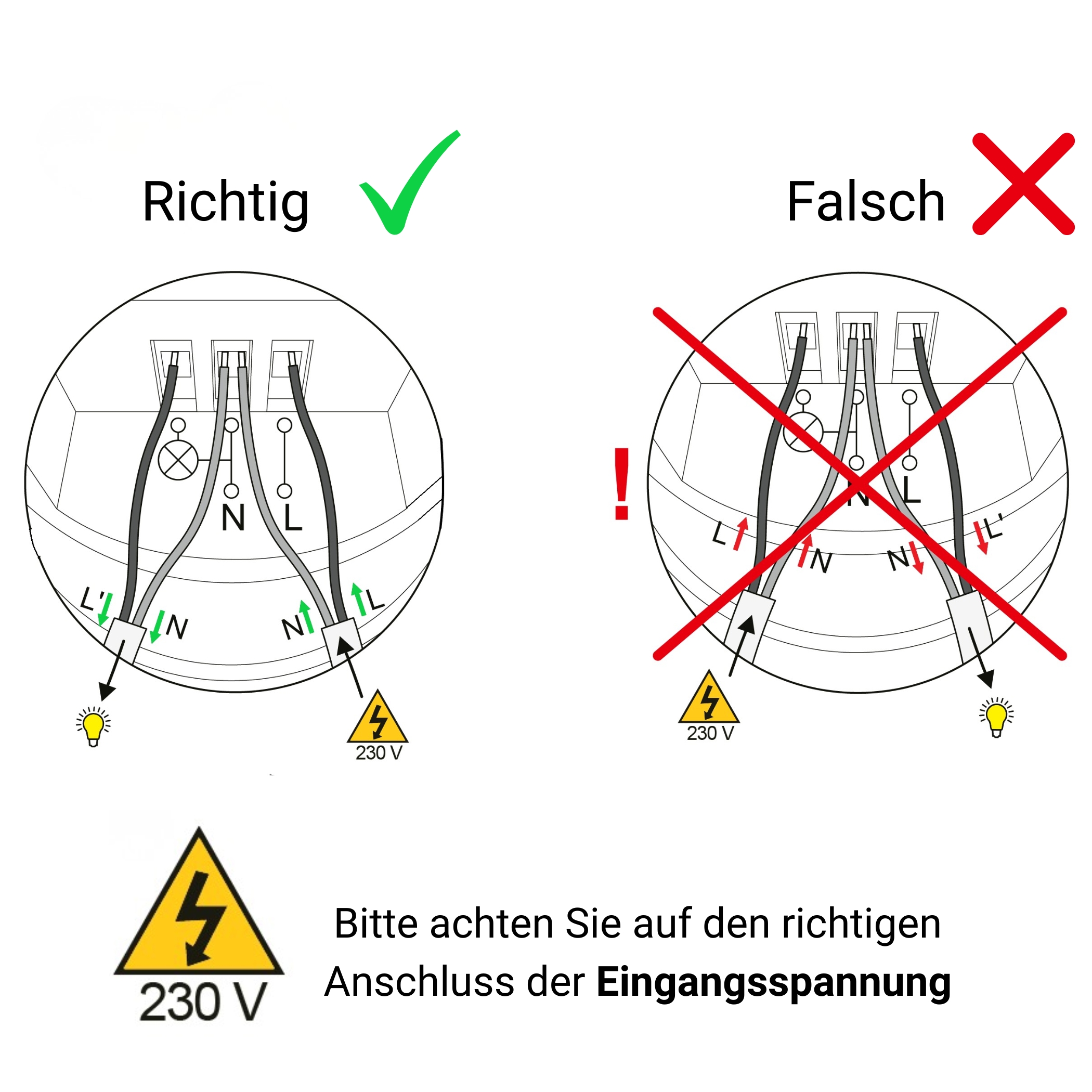

| Installation: | 3-wire |
| Switch Type: | MOSFET |
| Max. Load: | max. 100W (energy-saving lamps) |
| Standby Power Consumption: | 0.5W |
| Switch Modes: | ON, OFF or Motion Detection |
| Detection Speed: | 0.6-1.5m/s |
| Detection Range: | Max. 9m (<24°C) / 160° |
| Ambient Light Level: | 3-2,000LUX |
| Protection Rating: | IP20 |
| Switch-off Delay: | Min. 10s +/-3s - Max. 7min +/-2min |
| Operating Temperature: | -20°C to +40°C |
| Humidity: | <93% |
| Suitable for Flush Mount Boxes: | 60mm |
| Suitable for Cavity Wall Boxes: | 68mm |

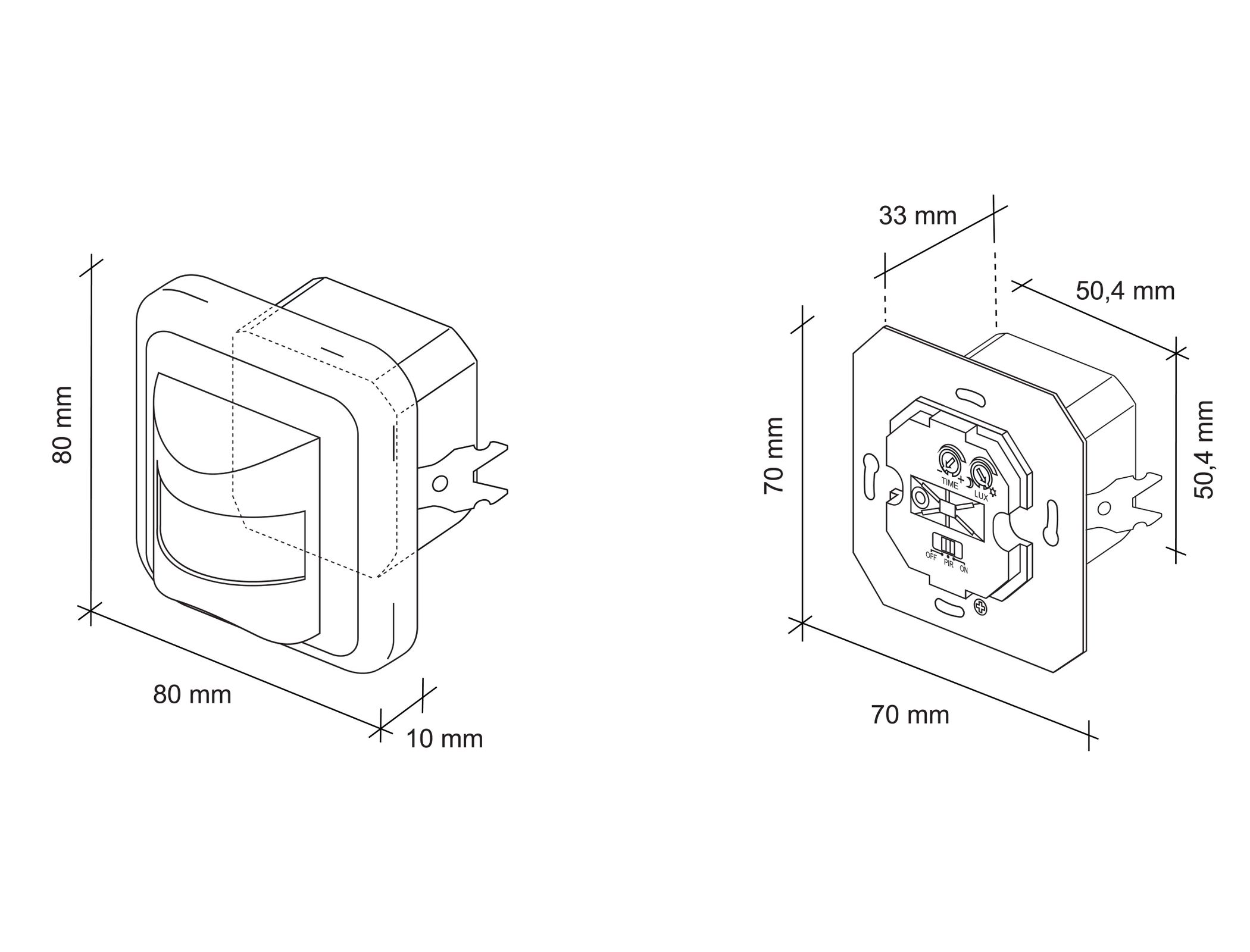

| Installation Dimensions: | 50x50x33mm |
| Product Dimensions: | 80x80x43mm |
| Housing Material: | Plastic |
| Colour: | Anthracite |
Installation and Operating Instructions (PDF)
Package Contents:
- 1 x SEBSON PIR Motion Sensor Switch for Flush Mount Installation
| Technical characteristic | Value |
|---|---|
| Item ID | 5934 |
| Condition | New |
| Age rating | No age restriction |
| Manufacturer | SEBSON |
| Manufacturing country | China |
| Content | 1 piece |
| Weight | 166 g |
| Net weight | 102 g |
| Dimensions | 90×90×80mm |
