Mini built-in IR motion detector

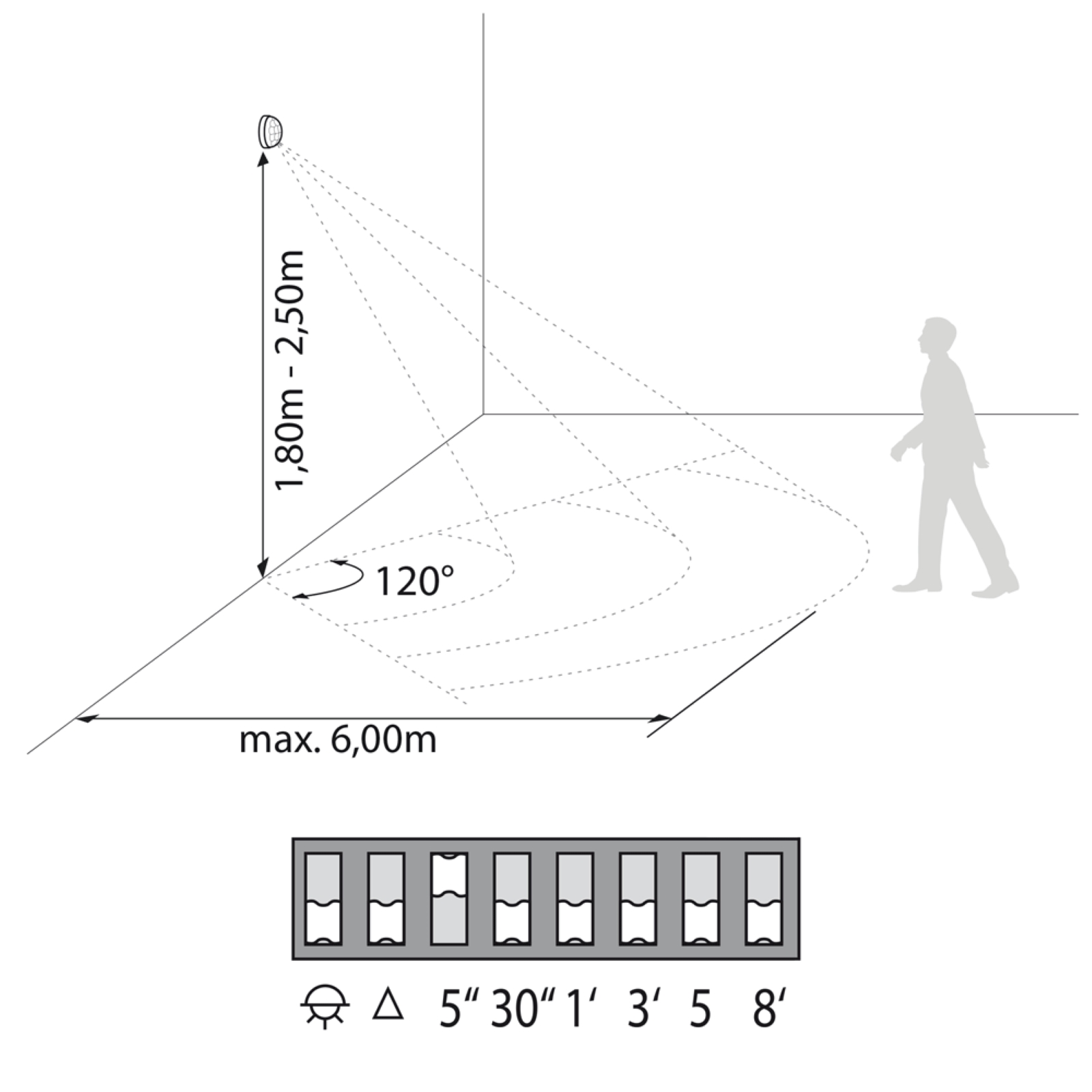

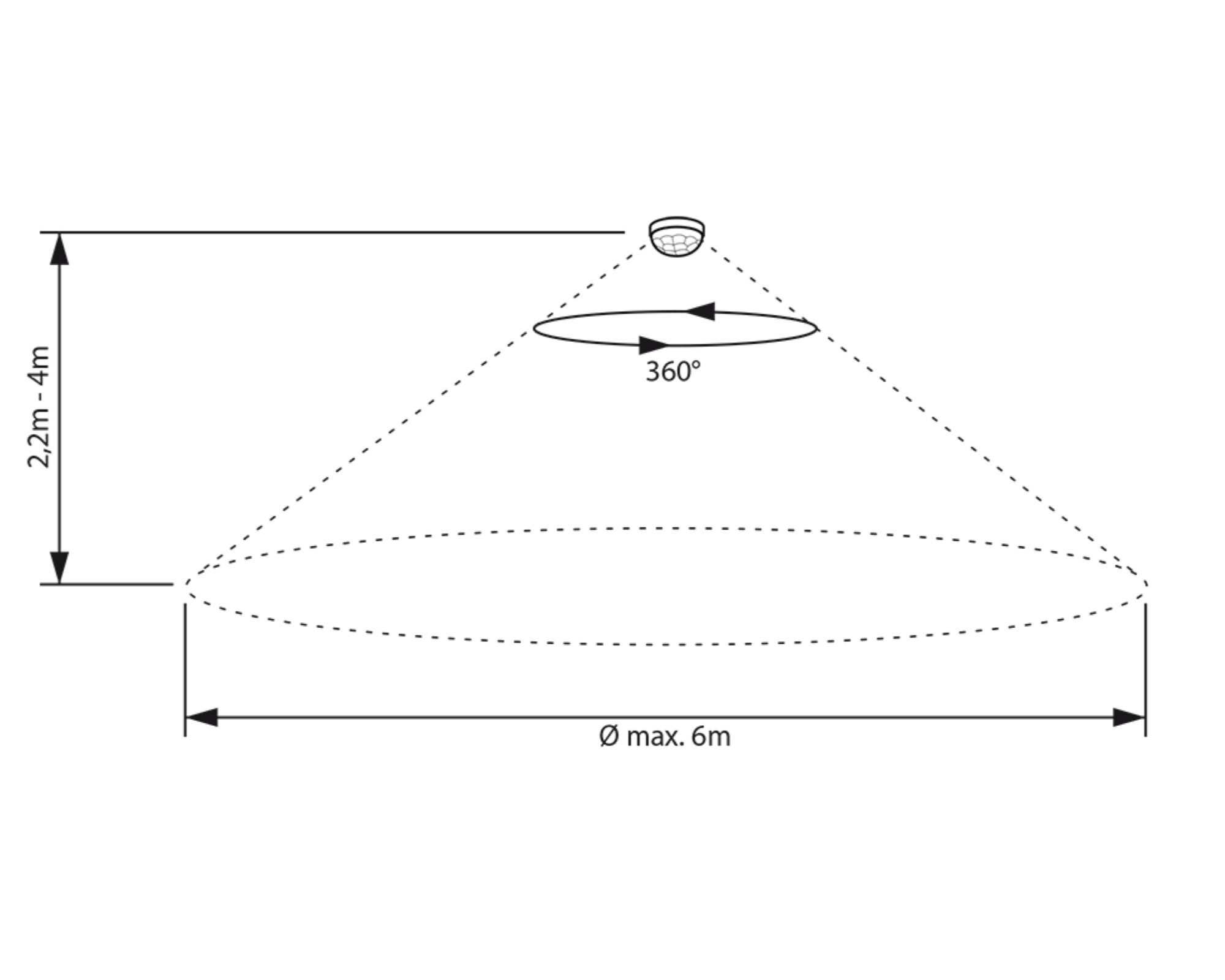

The infrared sensor detects movements of persons, large animals and vehicles in a detection range of up to 6m at a radius of 360° and detection angle of 120° (on free area) and switches on the connected lighting. After preset time periods (5 sec, 30 sec, 1 min, 3 min 5 min or 8 min) the motion detector switches off again. The switch-on sensitivity of this unit can be set to 10 lux (night) or 2000 lux (day) using a controller.

Thanks to the flat design of the switching unit with a height of only 26 mm, this motion detector is particularly suitable for cavity ceilings or other places where space is limited. With its small size and a diameter of only 18 mm, the sensor can be mounted inconspicuously at the desired location.

Product features

Operating voltage:	220-240V AC 50/60Hz
Max. Power consumption:	max. 800W with usual lamps max. 200W with LED and energy saving lamps
Power consumption on standby:	0,5W
Detection speed:	0,6-1,5m/s
Detection range:	Max. 6m (<24°C)/360° Max. 6m (<24°C)/120°
Ambient brightness:	10/2.000LUX
Protection:	IP20

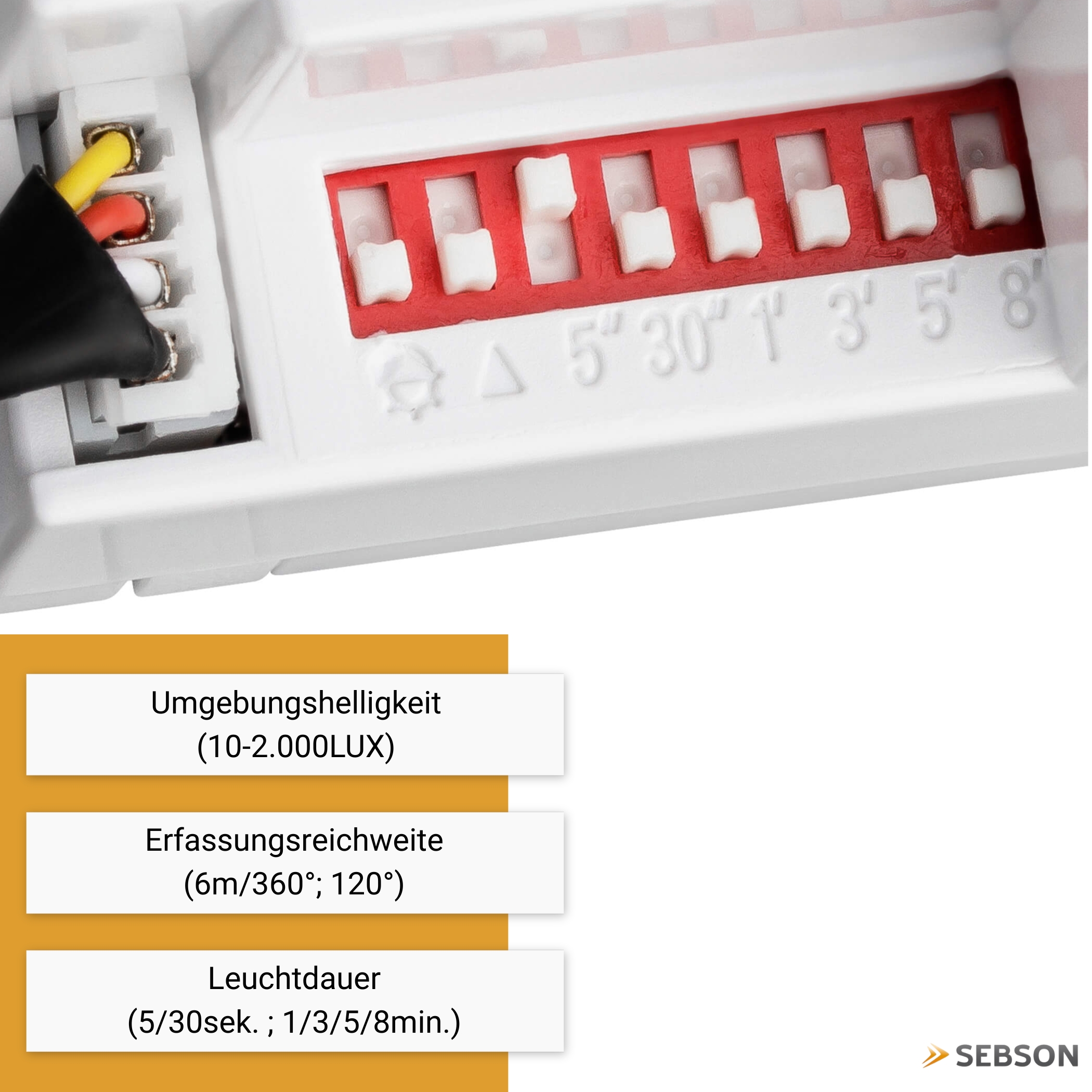

Switch-off delay:	5 or 30sec, 1, 3, 5 or 8min
Ambient temperature:	-20° to +40°C
Humidity:	<93%
Switch dimensions:	56x37x26mm
Sensor dimensions:	Ø18x25mm
Sensor mounting hole:	16mm
Housing material:	Plastic

Assembly and operating instructions as PDF

Scope of delivery:

1 x SEBSON® Built-in IR motion detector

Item ID	3924
Condition	New
Age rating	No age restriction
Manufacturer	SEBSON
Manufacturing country	China
Content	1 piece
Weight	46 g
Net weight	46 g
