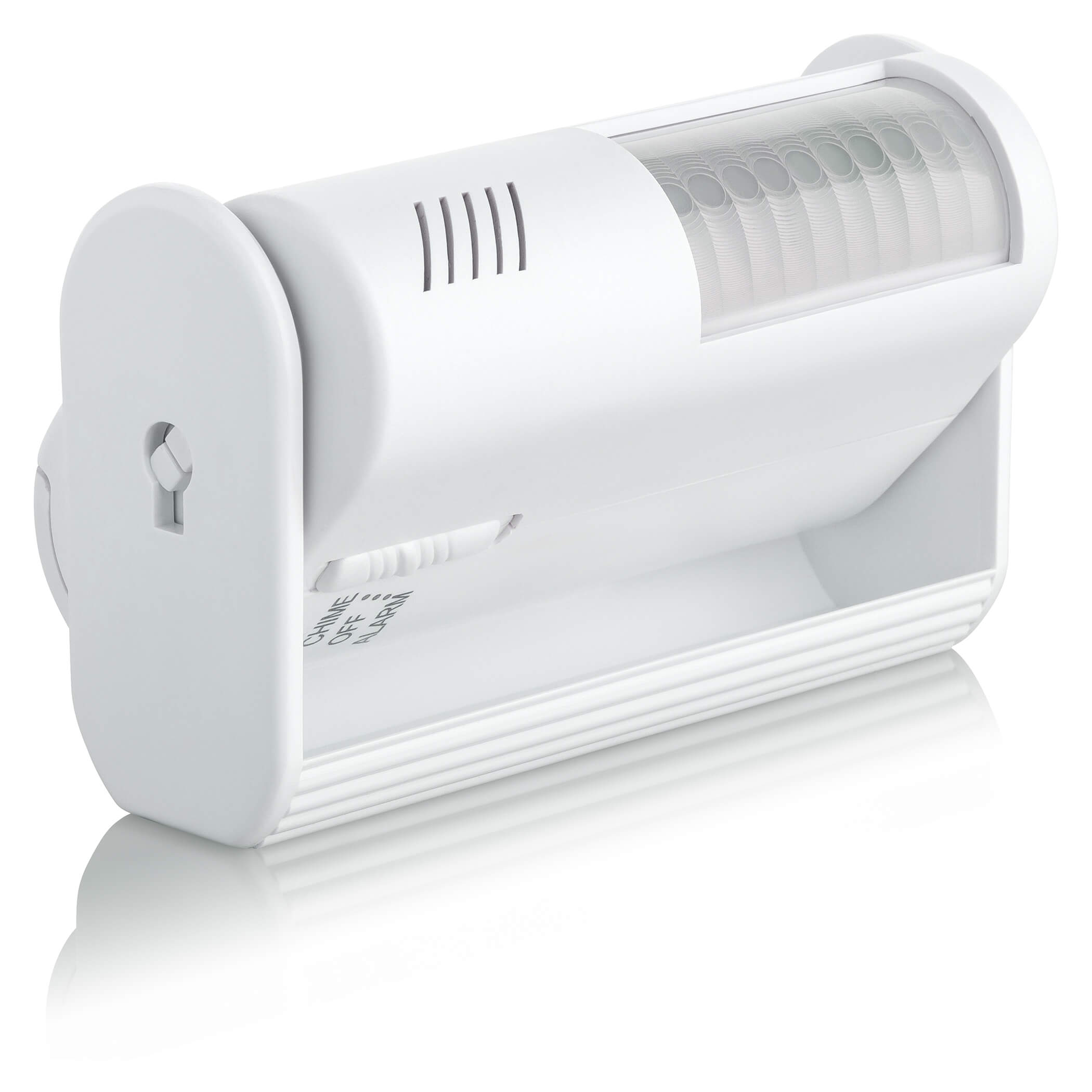

Mini motion detector with alarm and ringtone

The sensor detects movements of persons, large animals and vehicles in the predefined detection range of 8m at a detection angle of 60°. Because the motion detector can be swiveled steplessly 360°, the detection range can be set very precisely and, if required, can also be changed after assembly. The motion detector can be set to trigger either a 70dB (A) loud signal (15 sec.) or a ring tone. Thus, this motion detector can be used as an alarm or as a passage detector. The respective setting can be changed at any time with the easily accessible switch.

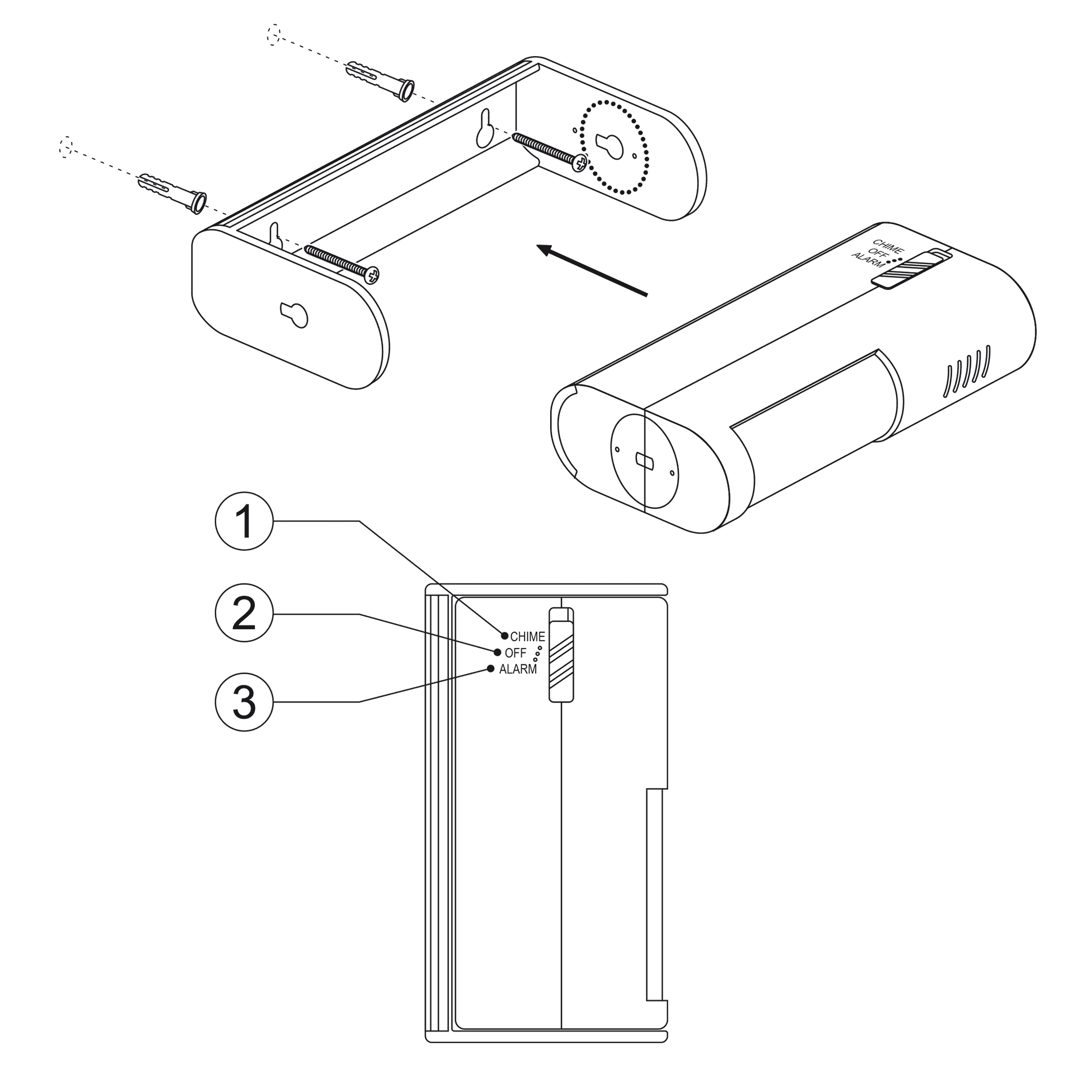

Assembly
Screws and dowels for mounting the motion detector are included in the delivery. In the vicinity of large metal surfaces or electronic devices, e.g. Computers, monitors, etc., the detection level may change or decrease.

Product characteristics

Operating voltage:	9V DC

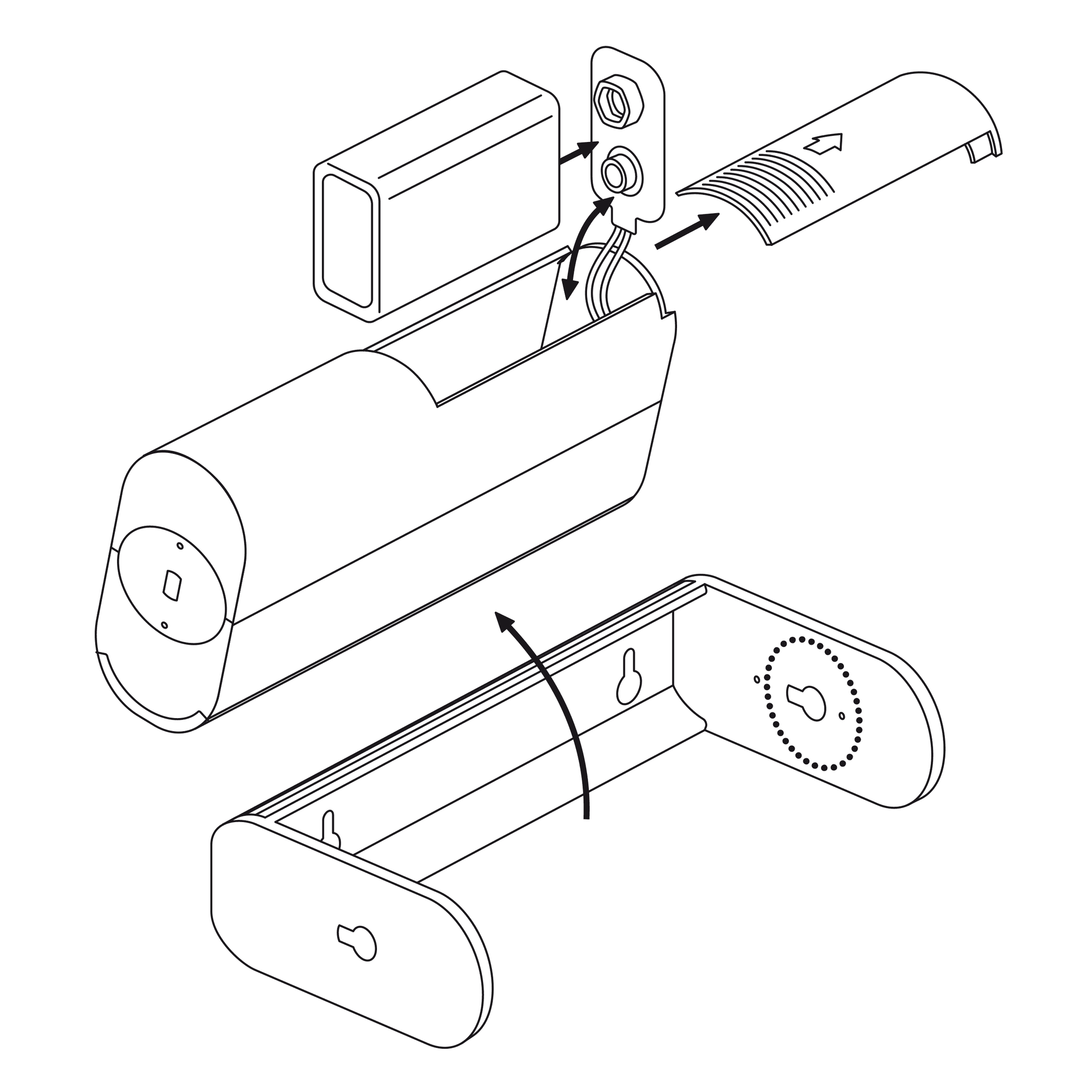

Batteries:	1 x E-Block
Protection class:	IP20

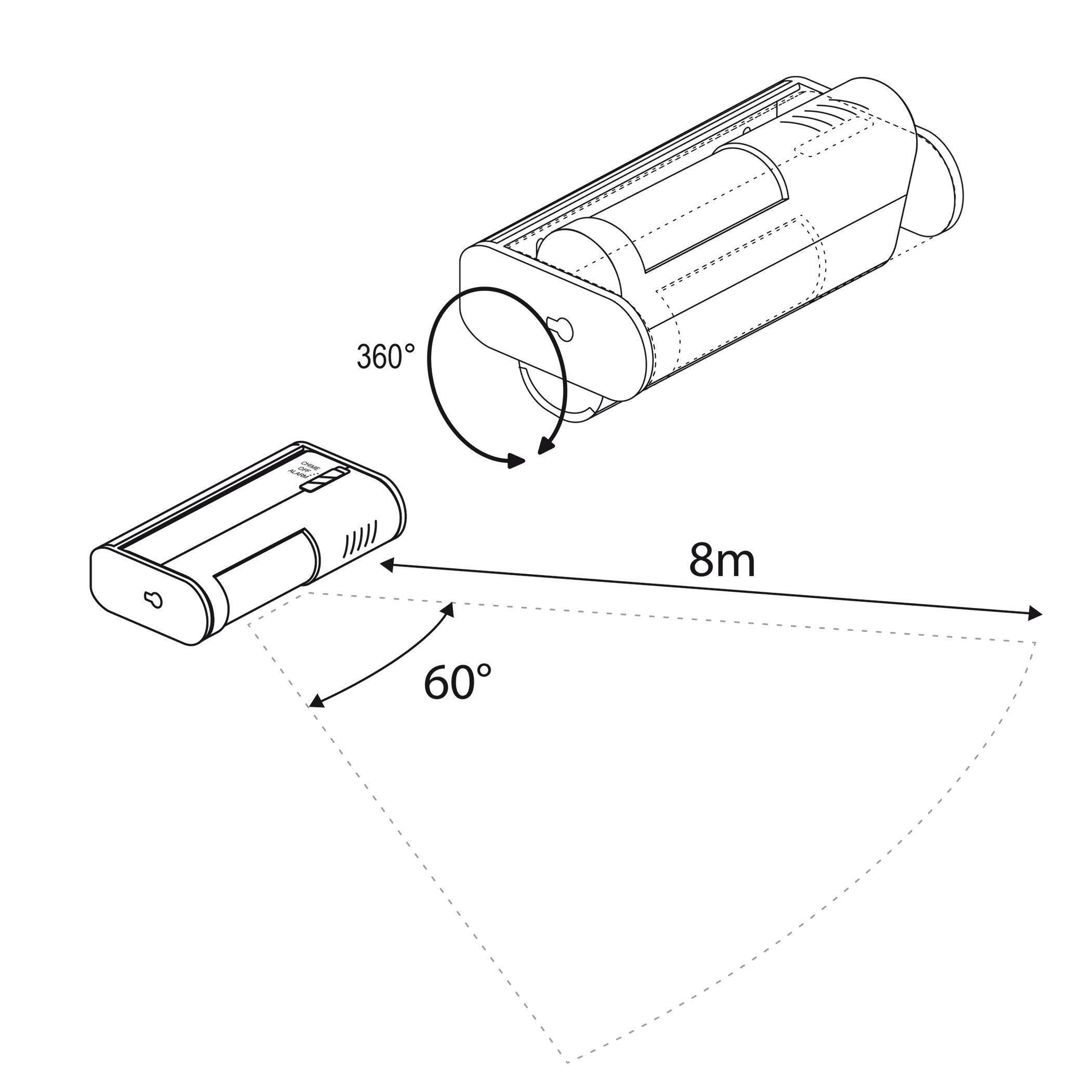

Detection range:	max. 8m at 60° detection angle
Function:	Alarm ≥70dB(A) or ringtone
Operating temperature:	-20° - +40°C
Housing material:	Plastic

Assembly instructions as PDF

Scope of delivery:

1 x SEBSON® Motion detector
2 x Screws
2 x Dowels

Technical characteristic	Value
Item ID	3419
Condition	New
Age rating	No age restriction
Manufacturer	SEBSON
Manufacturing country	China
Content	1 piece
Weight	112 g
Net weight	112 g

Motion detector BWM ALARM B
