SET 3 UNDER DIM

3 levels of brightness, touch function, max. 10,5∼55W, 3000K, warm white, 90°

graduated prices:
Minimum quantity: 3 EUR 36.99

EUR 37.99
Content 1 piece
* Incl. VAT excl. Shipping
Quantity:
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/61/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "f7913564af25c6e177927fc979ea281d"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentymarkets.com/ngfa4hoznlgi/plugin/61/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "TESZKTAS7Y4SW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "f7913564af25c6e177927fc979ea281d"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('674fb5678c5c3', 'paypal', 'pay', 'rect', 'blue'); }); } else { renderPayPalButtons('674fb5678c5c3', 'paypal', 'pay', 'rect', 'blue'); }

Product out of stock, delivery time on request

Item number SET_3_UNDER_DIM

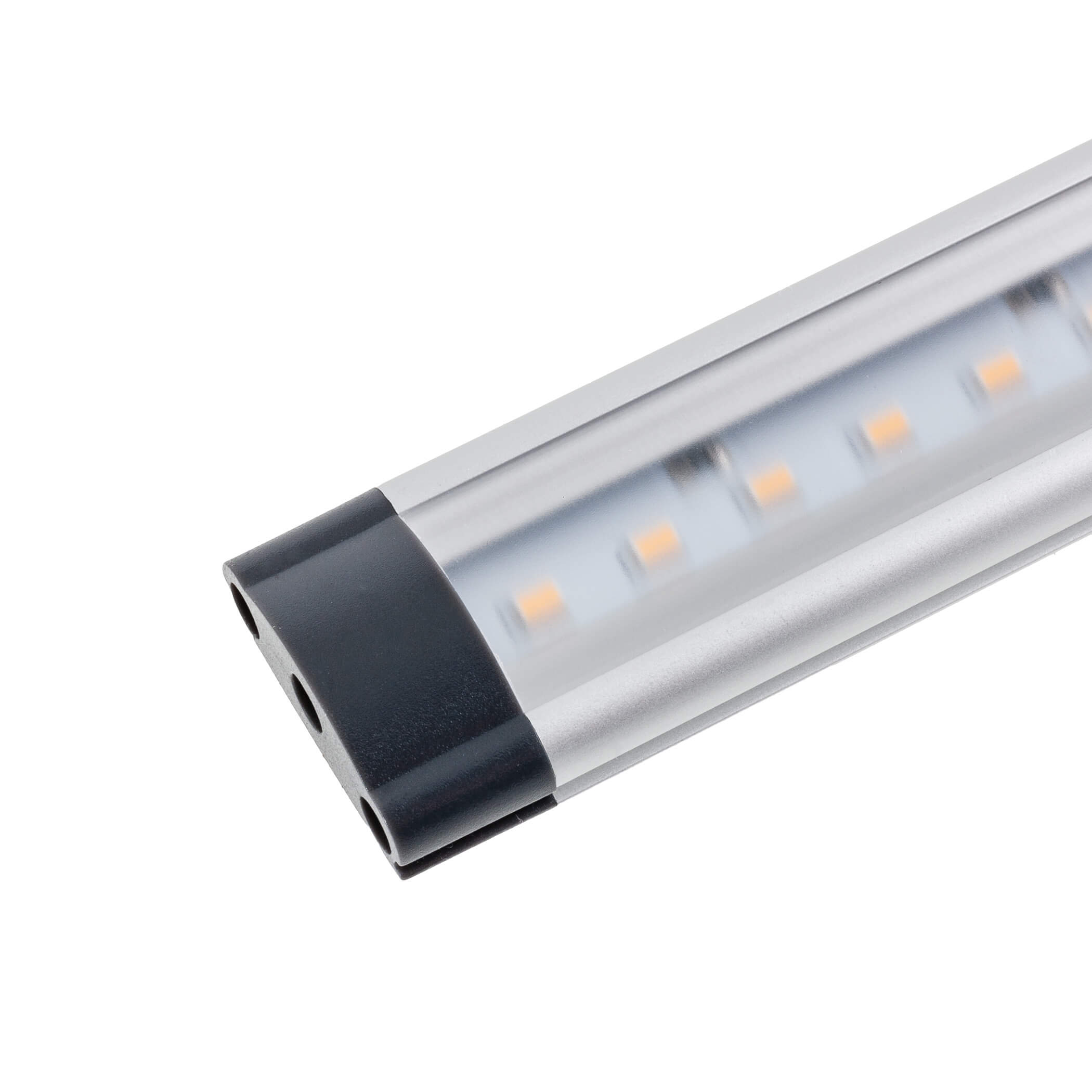

LED Undercabinet luminaire with 3-level brightness control and touch function

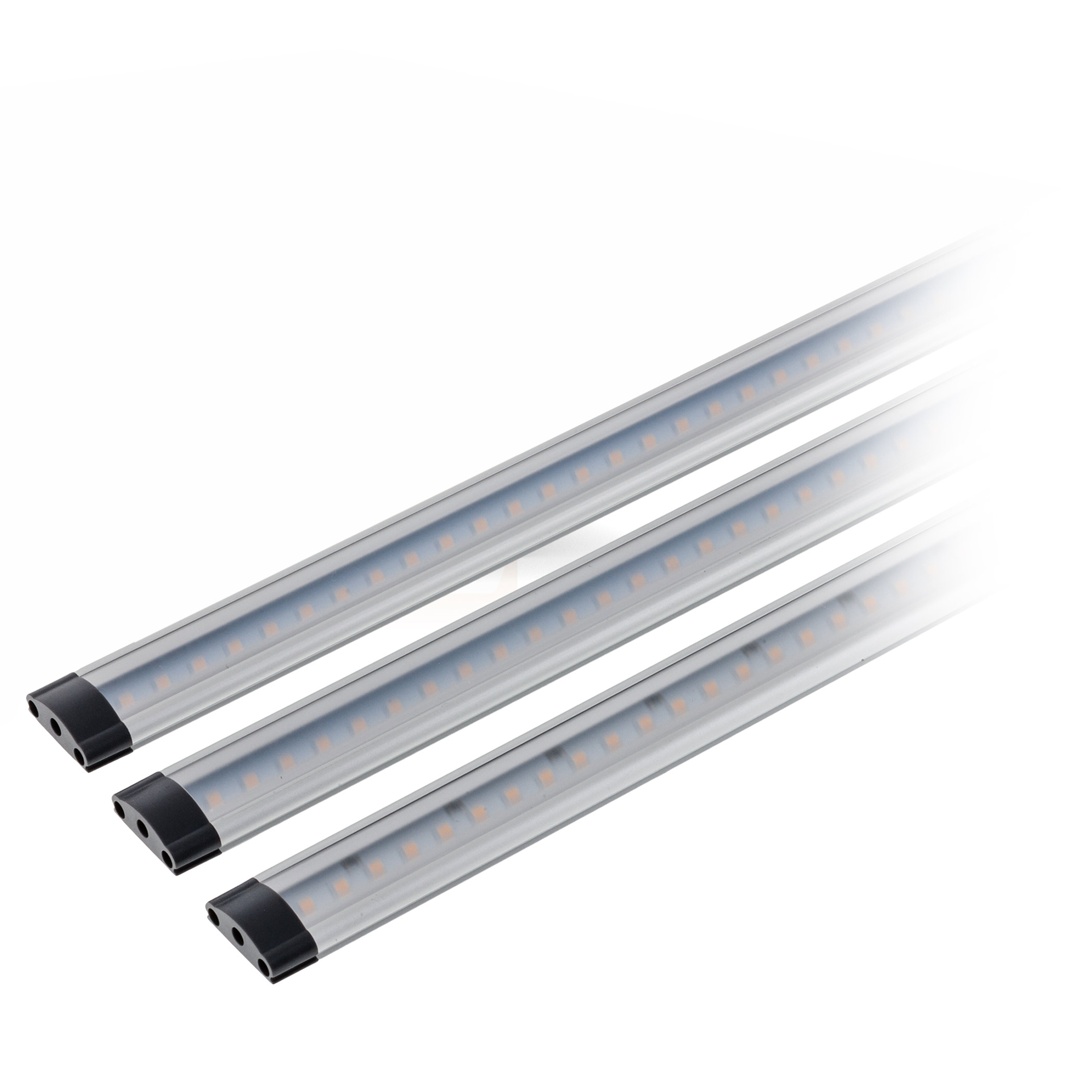

This stylish LED lighting strip brings pleasant light selectively to objects in the desired brightness by touching the case. No need to search more of the switch under the wall cabinet or other hard-visible places! In visible mounting no switch that could interfere with the optics! The low profile of only 8.7mm and the matt aluminum of the housing appear discreetly modern.

Touch function
By repeatedly touching the metal shell, the light intensity can gradually increase. The table shows an example when all three LED light strips are in operation.

3 levels of brightness each light

Touch Brightness level
1 x low
2 x medium
3 x high
4 x off

Area of application

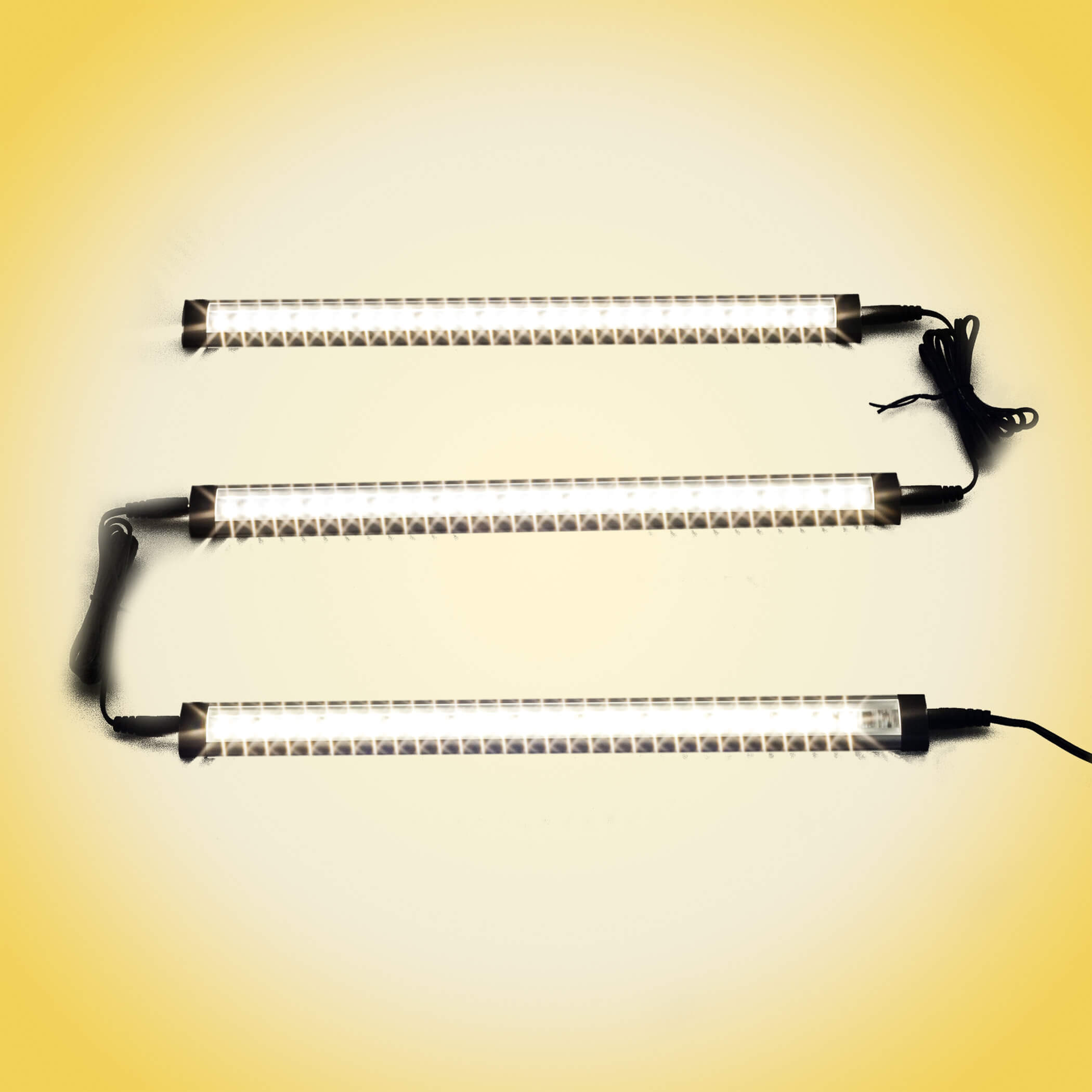

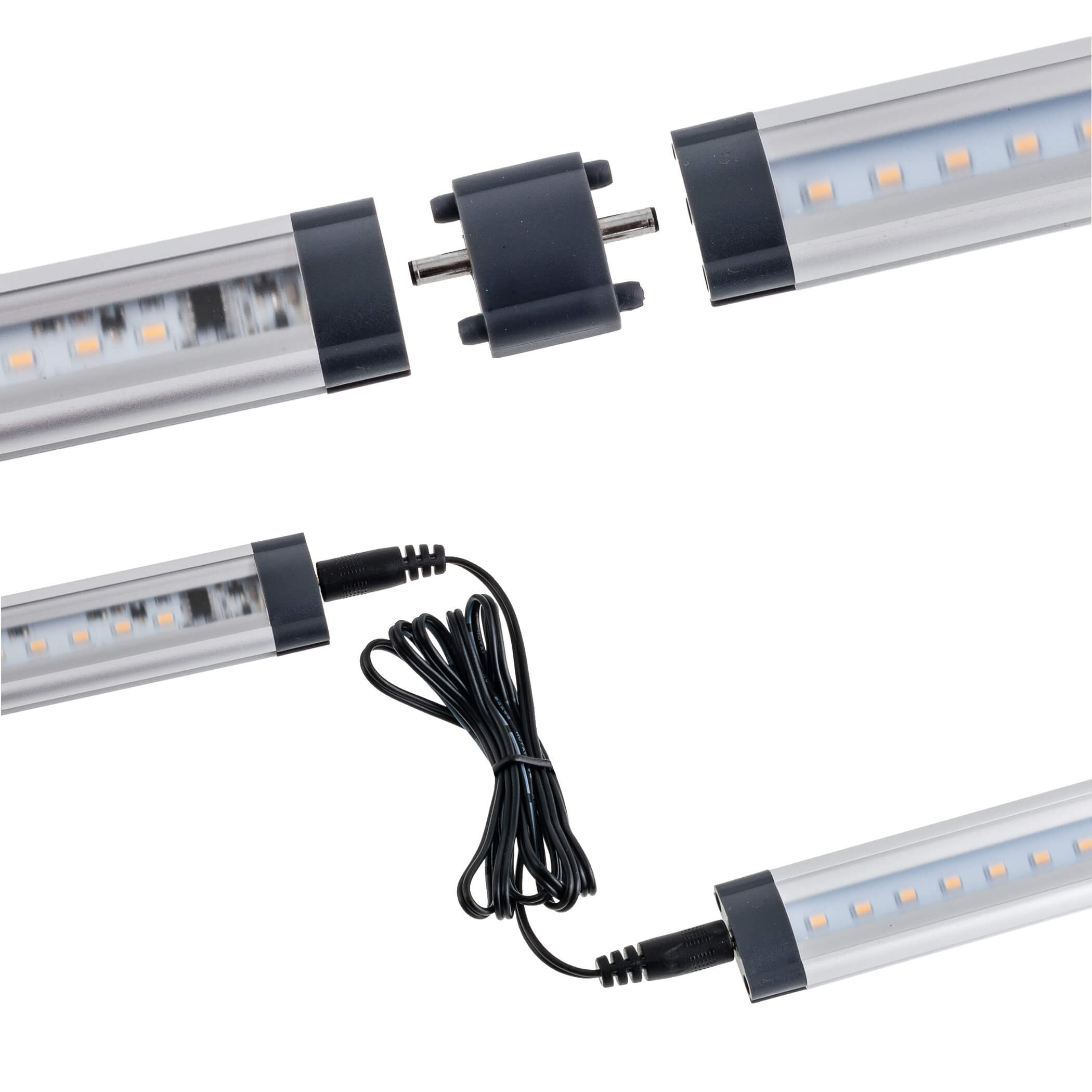

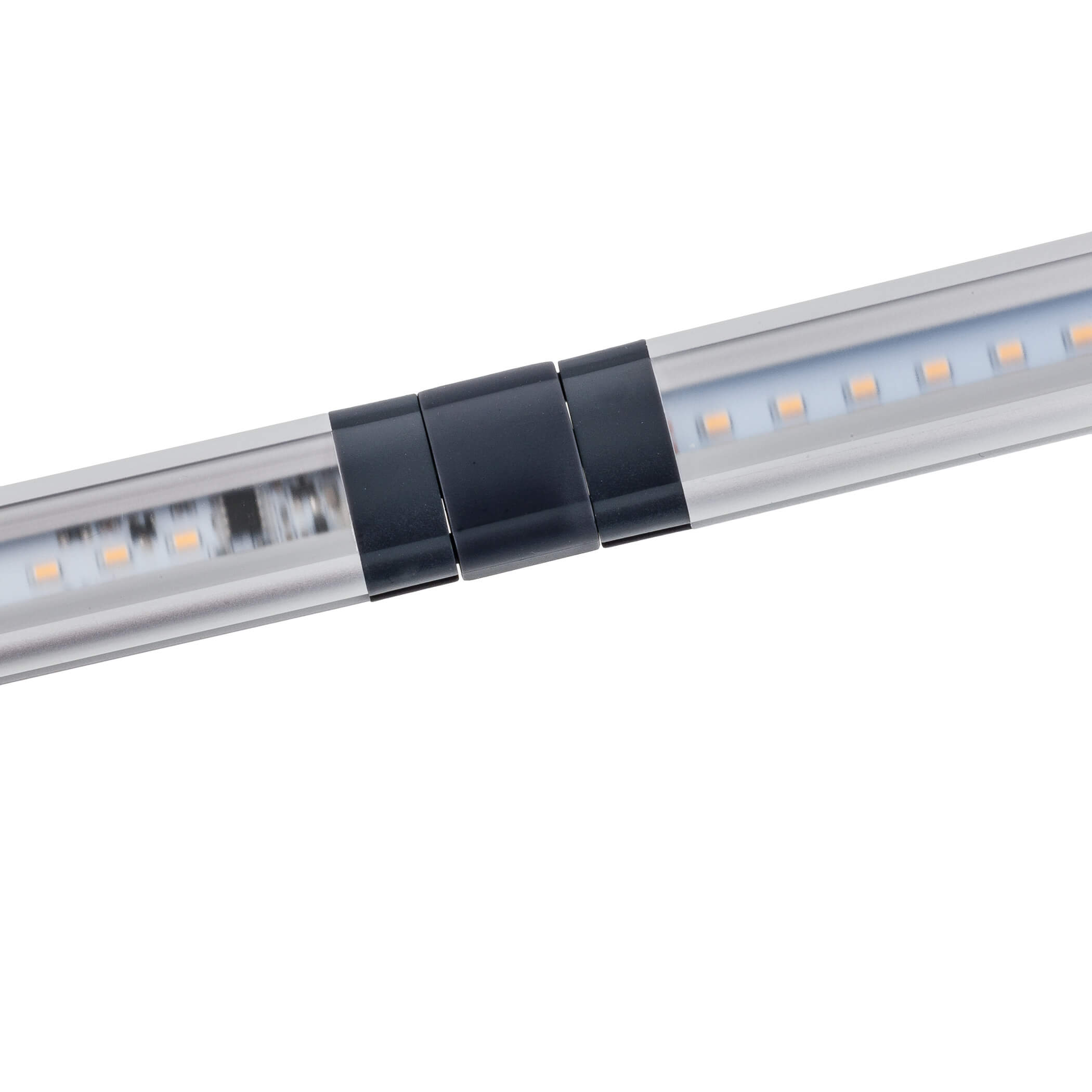

Because of the relatively small beam angle of 90° and the warm white light, these LED light strip is targeted for illuminating work surfaces in kitchens and offices, but also in living rooms for lighting glass cabinets, shelves or niches in furniture. The LED light strips can be connected to connectors directly to each other to a total length of about 95cm. To bridge larger distances you can us the 1m long cables. The light bars can also be fitted on 3 floors of a shelf or corner with these cables.

Never change bulbs!
This lamp contains permanently installed (not replaceable) LEDs. With a lifetime of over 15,000 hours and more than 12,500 cycles it will light years across.


Assembly instructions as PDF

EU Product database (EPREL)



LED lighting at a glance
Base: without, fully assembled
Brand: SEBSON
Nominal wattage: max. 3x 3,5W
Nominal luminous flux: max. 3x 250lm
Comparative value: 3x 25W light bulb
Beam angle: 90°
Brightness levels: 1,2W / 2,3W / 3,5W

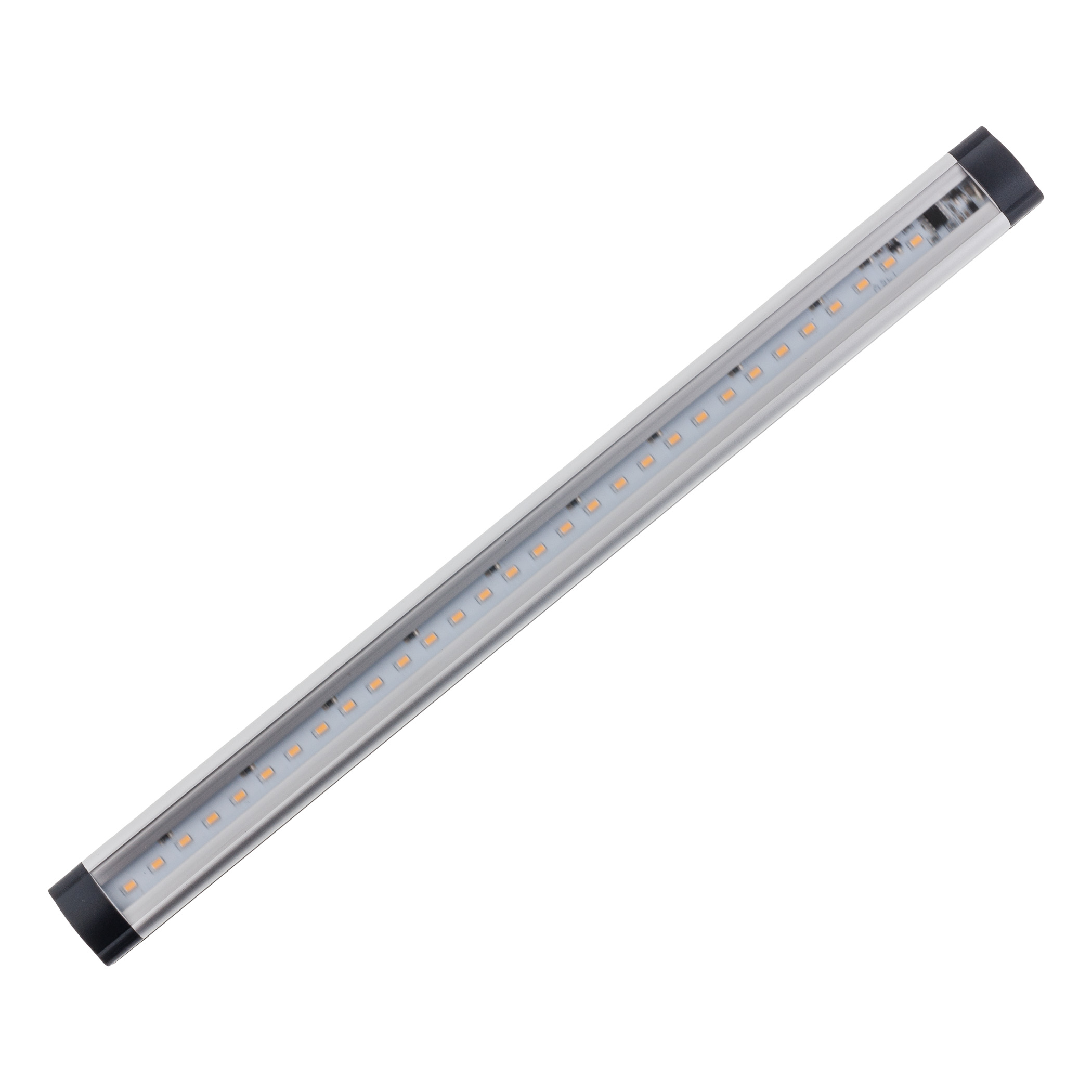

Dimensions: 25 x 8,7 x 300mm



Electrical specification
Operating voltage: 12V DC
Rated wattage: max. 3x 3,5W
Switching cycles: > 12.500



Lighting specification
Rated luminous flux: max. 3x 250lm
Rated color temperature: 3000K (warm white)
Rated color rendering index (CRI): > 80Ra
Rated beam angle: 90°
Rated starting time: < 0,5s
Rated warm-up time (60 %): instant full light
Colour consistency: < 6 SDCM
Luminous flux maintenance: 90.22%



Further specification
Nominal - / rated lamp life time: 15.000h
Dimmable: 3 brightness levels
Accent lighting: no
Rated lamp mercury content: 0,0mg
Body housing: Aluminum, Plastic
Operating temperature: -20 to +45°C



The light source is not replaceable by the end user.
*Disposal note



Scope of delivery:

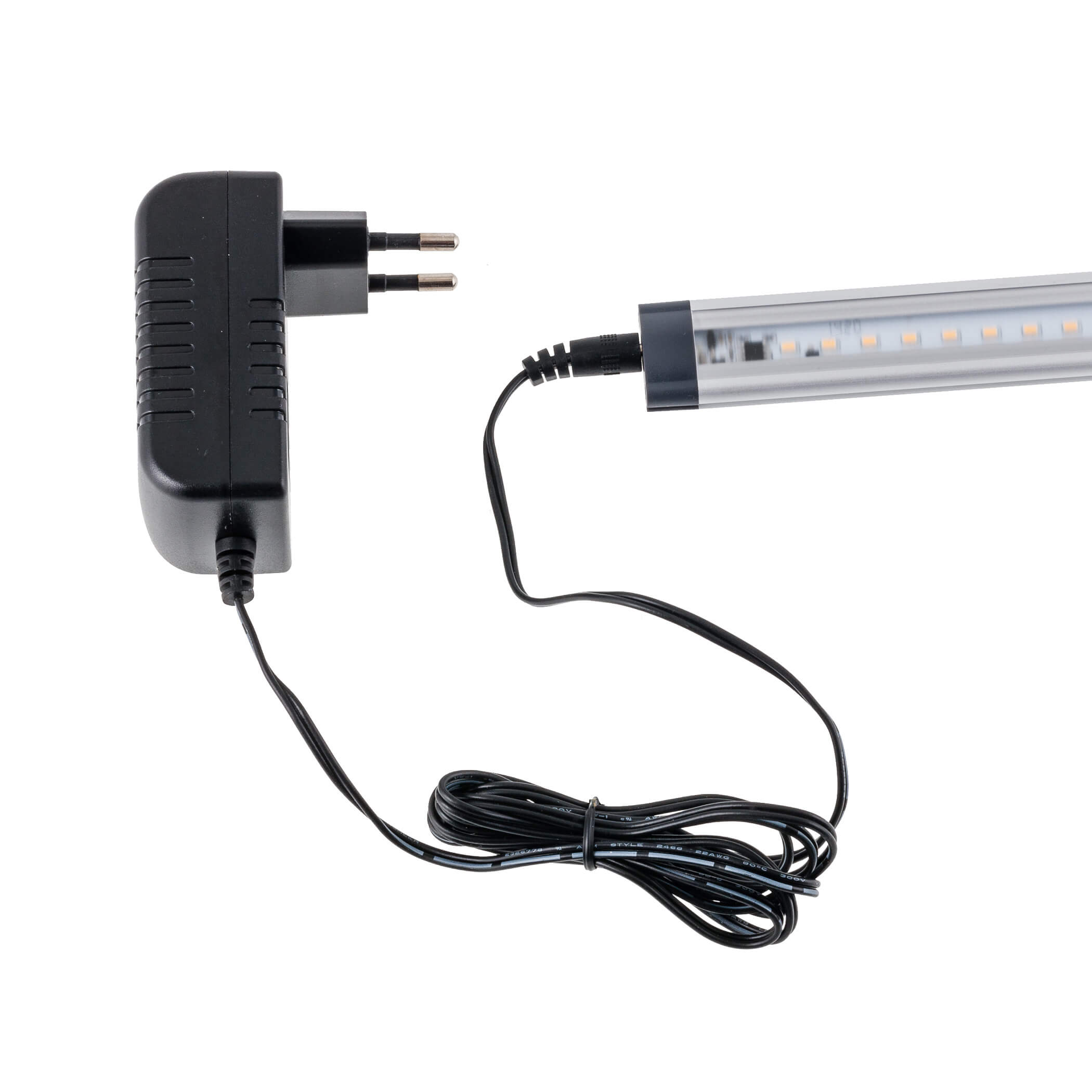

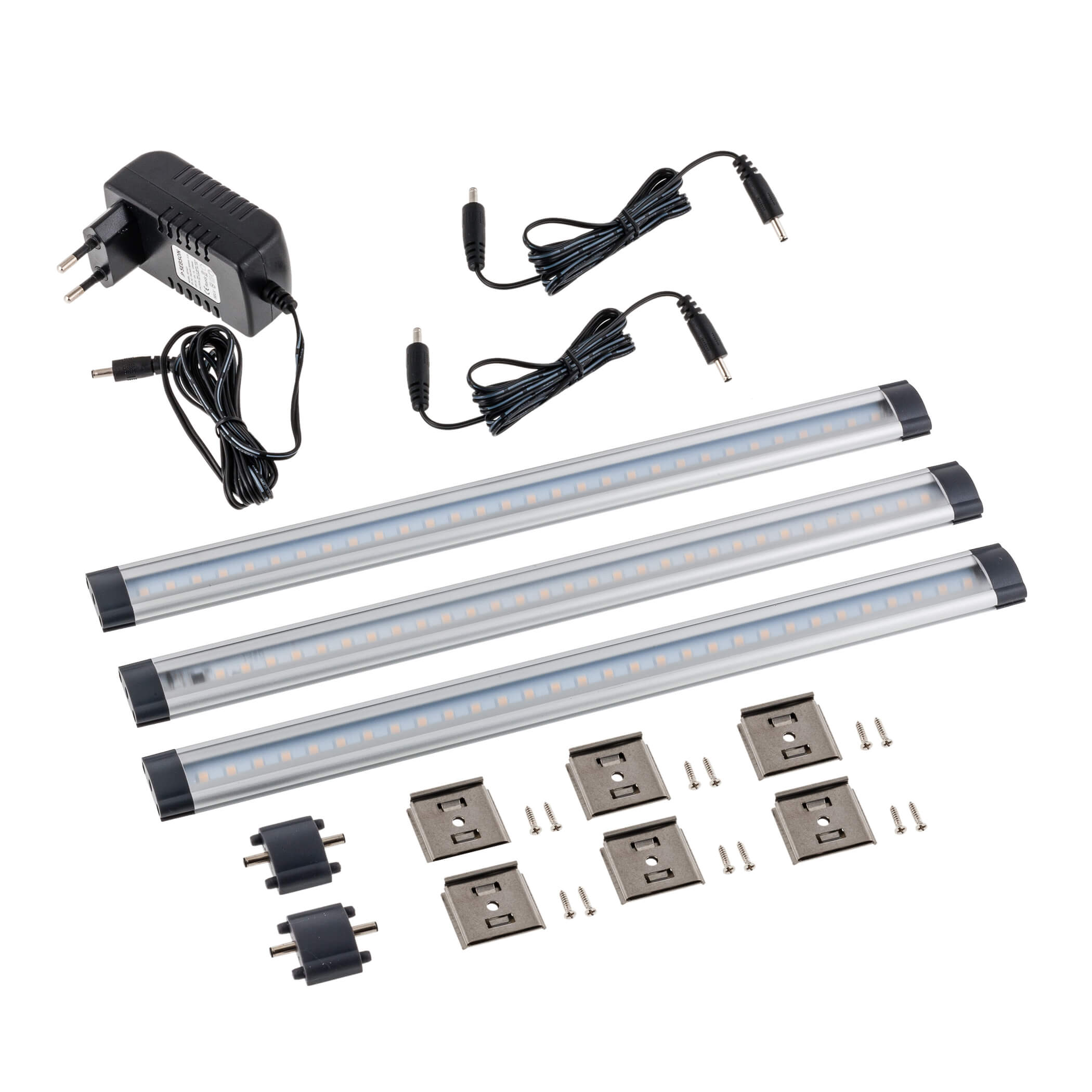

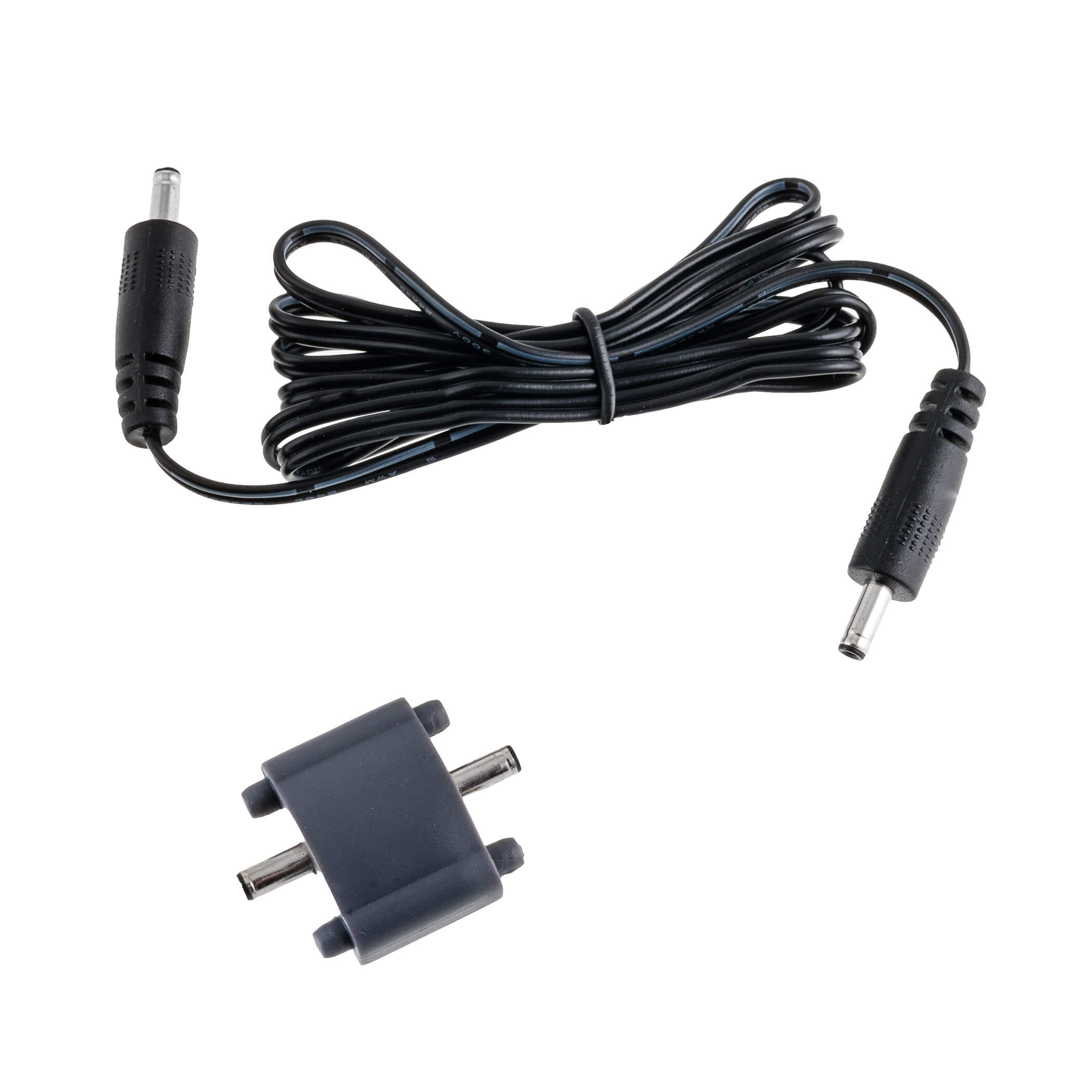

  • 3 x Undercabinet luminaire of SEBSON® with integrated LEDs, 6 bolt down brackets for mounting, 2 connectors, 2 connection cable, 12W power adapter with Lead wire / connector
Item ID 1482
Condition New
Age rating No age restriction
Variation ID 94054039900
Manufacturer SEBSON
Manufacturing country China
Content 1 piece
Weight 360 g
Net weight 360 g
Customs tariff number
